Functional Parts Layout SiBE39-402
32 Refrigerant Circuit

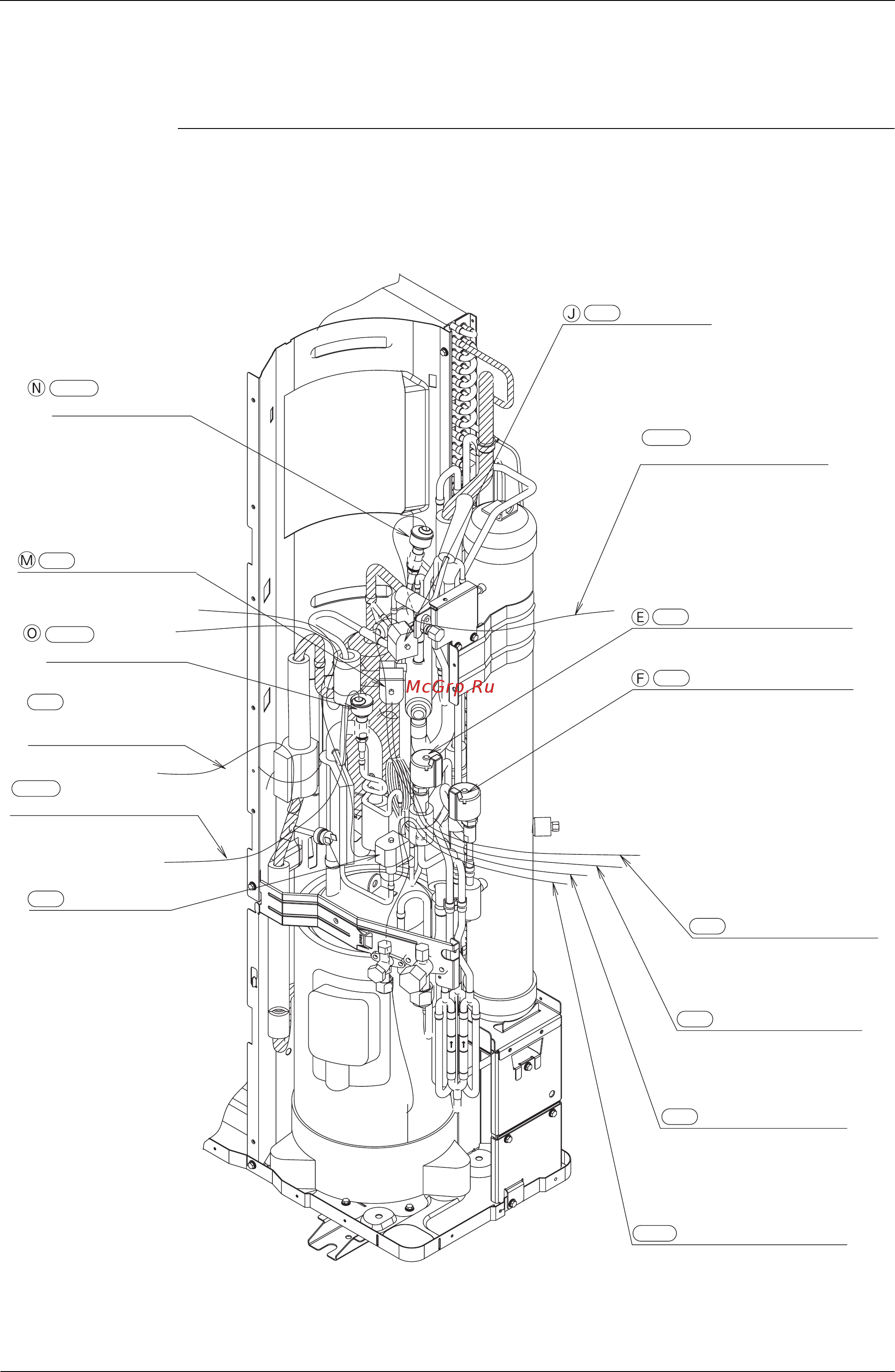

2. Functional Parts Layout
2.1 RXYSQ4·5·6M
Birds-eye view
Y2S
S1NPH
S1NPL
Y3S
Y2S
Y1E
Y2E
Y1S
Y1S
E1HC
Y3S
R3T
S1NPH
High pressure sensor
S1NPL
Discharge pipe thermistor
lead wire
(Connector color : RED)
Four way valve coil
Low pressure sensor
(Connector color : BLUE)
Low pressure sensor lead wire
(Connector color : BLUE)
(Low voltage)
Solenoid valve
(Connector color : WHITE)
Solenoid valve
(Connector color : PINK)
High pressure sensor lead wire
(Connector color : RED)
(Low voltage)
Electronic expansion valve
Electronic expansion valve
Four way valve lead wire
(Connector color : BLUE)
(High volt
age)
Solenoid valve lead wire
Solenoid valve lead wire
(Connector color : PINK)
(High voltage)
(Connector color : WHITE)
(High voltage)
Crankcase heater lead wire
(Connector color : GRAY)
(High voltage)
