User’s Manual of WGS3-2820/WGS3-5220
202
4.6.1 IP
4.6.1.1 IP Configuration
Use this menu to configure routing parameters for the switch as opposed to an interface.

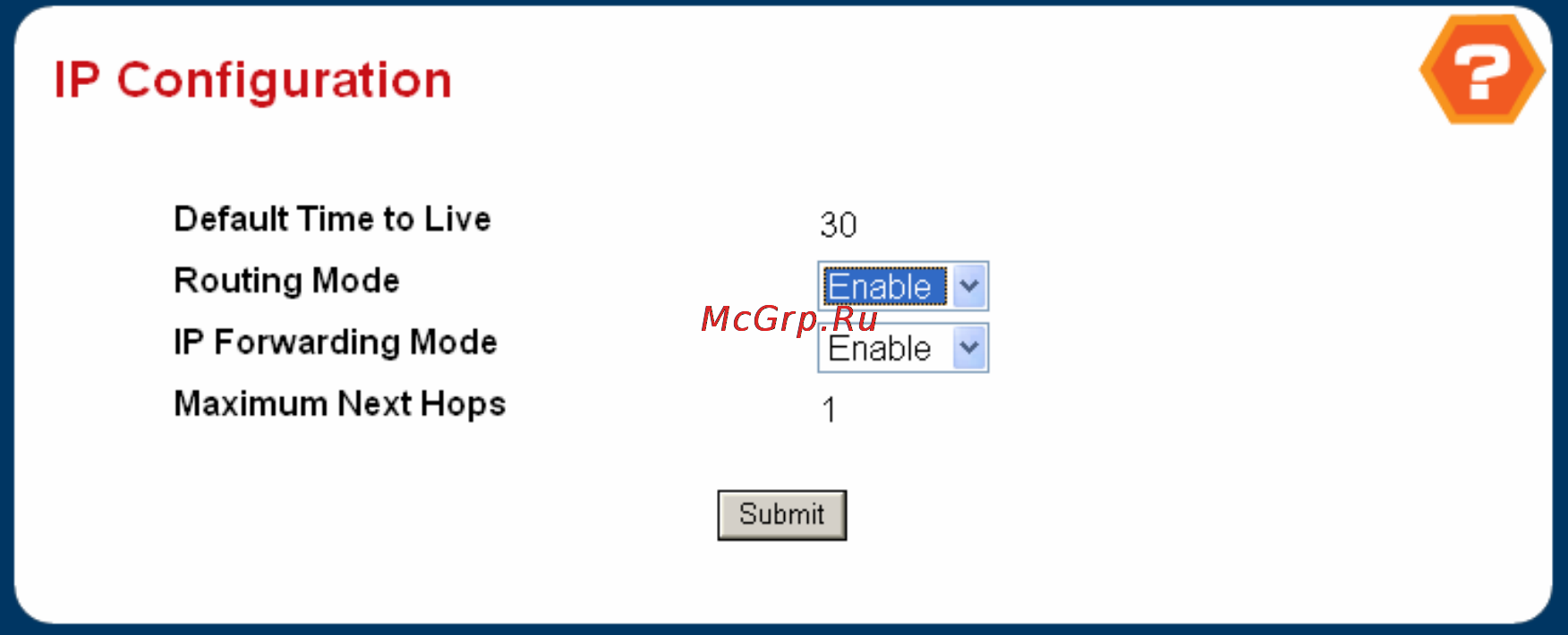

Figure 4-6-1 IP Configuation
Configurable Data
。 Routing Mode - Select enable or disable from the pulldown menu. You must enable routing for the switch before
you can route through any of the interfaces. The default value is disable.
。 IP Forwarding Mode - Select enable or disable from the pulldown menu. This enables or disables the forwarding
of IP frames. The default value is enable.
Non-Configurable Data
。 Default Time to Live - The default value inserted into the Time-To-Live field of the IP header of datagrams
originated by the switch, if a TTL value is not supplied by the transport layer protocol.
。 Maximum Next Hops - The maximum number of hops supported by the switch. This is a compile-time constant.
