Planet WGS3-5220 [76/528] System utilities

User’s Manual of WGS3-2820/WGS3-5220

Command Buttons

。 Refresh - Refresh the data on the screen with the present state of the data in the switch.

4.2.9 System Utilities

4.2.9.1 Save All Applied Changes

Saving all applied changes will cause all changes to configuration panels that were applied, but not saved, to be saved, thus

retaining their new values across a system reboot.

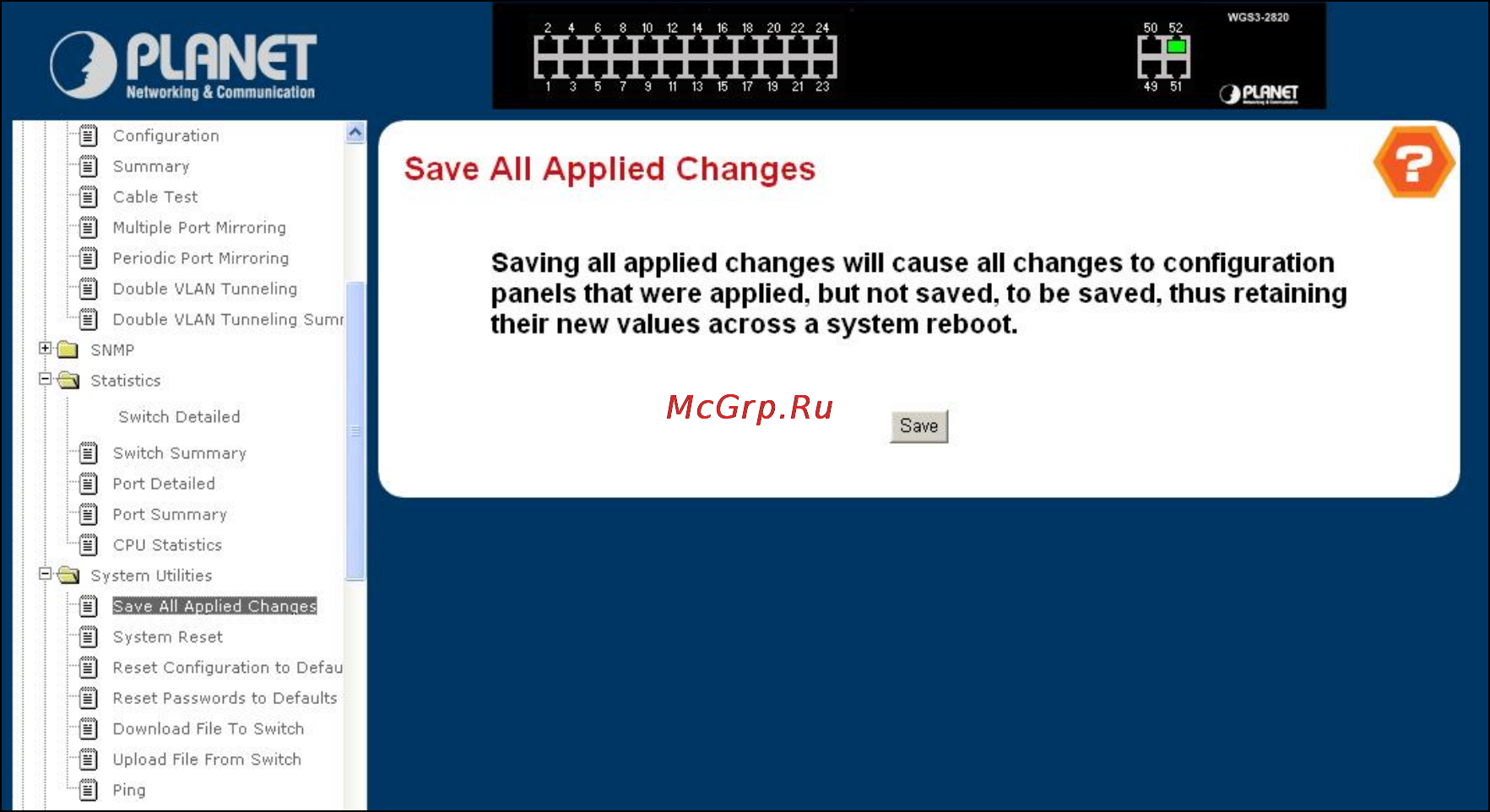

Figure 4-2-41 Save All Applied Changes
