Planet WGS3-5220 [307/528] Pim sm interface summary

User’s Manual of WGS3-2820/WGS3-5220

307

4.7.6.4 PIM-SM Interface Summary

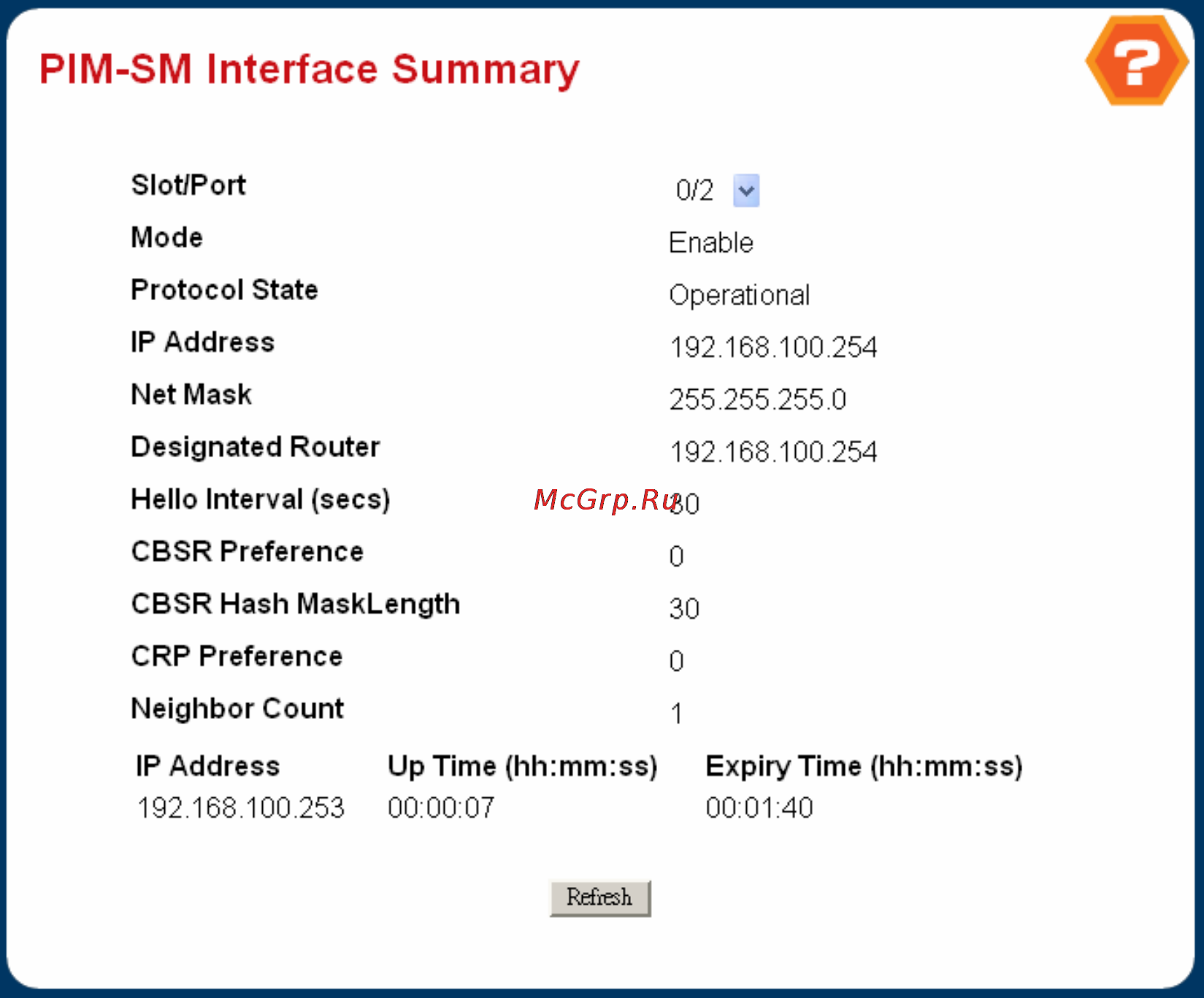

Figure 4-6-81 PIM-SM Interface Summary

Selection Criteria

o Slot/Port - Select the slot and port for which data is to be displayed. Slot 0 is the base unit.

Non-Configurable Data

o Mode - The administrative status of PIM-SM in the router: either enable or disable.

o IP Address - The IP address of the selected PIM interface.

o Net Mask - The network mask for the IP address of the selected PIM interface.

o Designated Router - The Designated Router on the selected PIM interface. For point-to- point interfaces, this object

has the value 0.0.0.0.

o Hello Interval - The frequency at which PIM Hello messages are transmitted on the selected interface.
