User’s Manual of WGS3-2820/WGS3-5220

209

。 Click on the Create button. The page will be updated to display the interface and MAC address assigned to this new

VLAN. The IP address and Subnet Mask fields will be 0.0.0.0.

。 Note the interface assigned to the VLAN.

。 Use the index pane to change to the IP Interface Configuration page.

。 Select the interface assigned to the VLAN. The IP address and Subnet Mask fields will be 0.0.0.0.

。 Enter the IP address and subnet mask for the VLAN.

。 Select the Submit button.

Change back to the VLAN Routing Summary page. The new VLAN should appear in the table with the correct IP address and

subnet mask assigned.

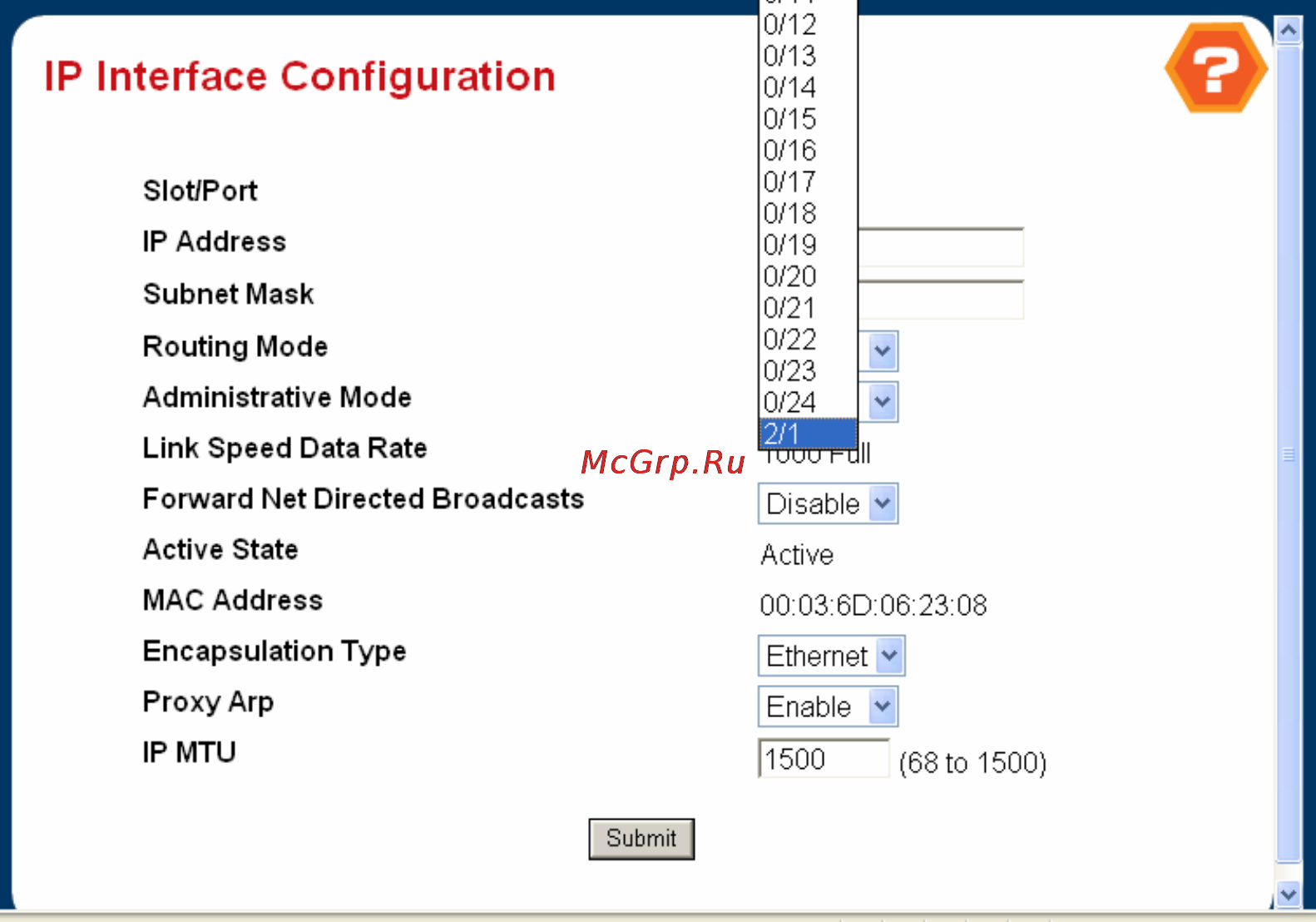

Figure 4-6-6 IP Interface Configuation
