Points of Analysis SiE30-408
188 Service Checker Type3 Application Edition

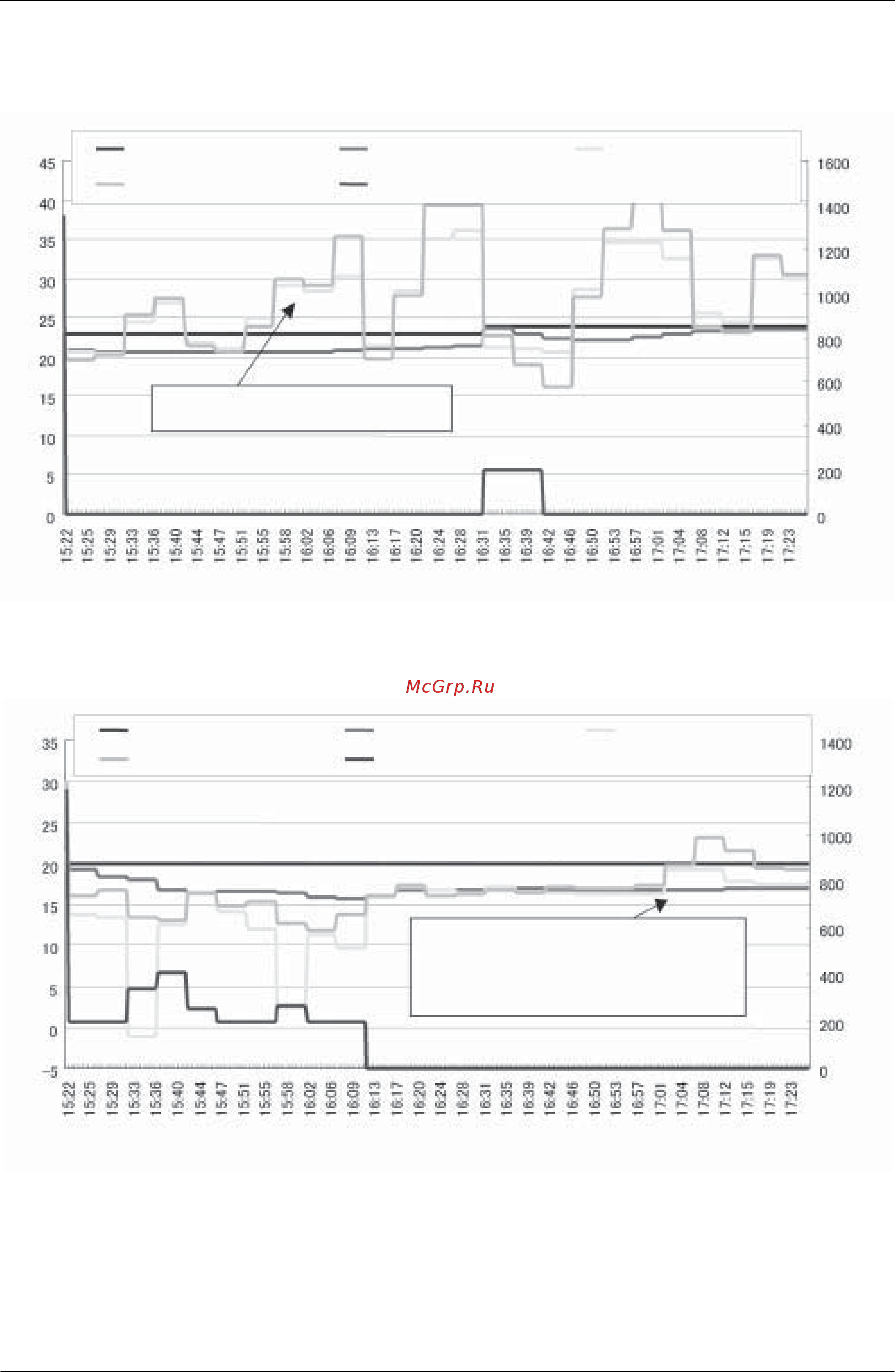

Graph of indoor unit (4)
Indoor unit (4)
Graph of indoor unit (5)
Indoor unit (5)
IN4 - Remote controller set temp.
IN4 - Indoor gas pipe temp.
IN4 - Suction temp. IN4 - Indoor liquid pipe temp.
IN4 - Indoor EV opening degree
Temp. [°C]
Time
Expansion valve opening degree [pls]
Even though the electronic expansion valve is
set to 0 pls, the gas pipe temperature rises.
IN1 - Remote controller set temp.
IN1 - Indoor gas pipe temp.
IN1 - Suction temp. IN1 - Indoor liquid pipe temp.
IN1 - Indoor EV opening degree
Temp. [°C]
Time
Expansion valve opening degree [pls]
The opening degree of electronic expansion valve and
the temperatures of liquid and gas pipes vary in a
similar manner. With the electronic expansion valve
set to 0 pls, the gas pipe temperature only rises
approximately up the room temperature.
