SiE30-408 Control of Indoor Unit
Basic Information 33

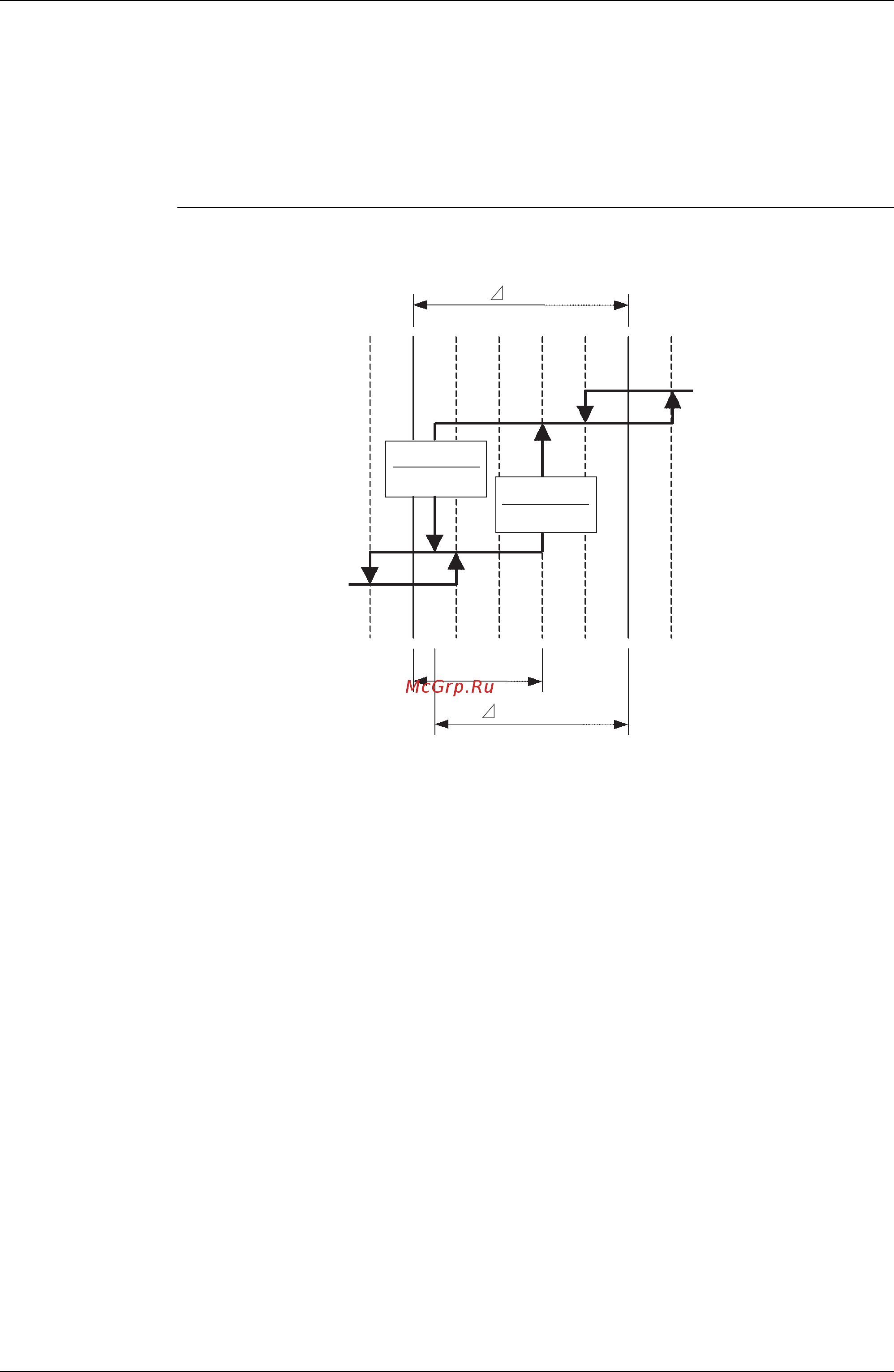

4.5 Thermostat Control in Cooling / Heating Automatic
Operation
In cooling / heating automatic operation, the unit is controlled as shown below based on set
"differential value". Factory setting of differential valve is 5°C. As to charging method of setting
value, refer to page 43 and page 44.
Cooling/Heating
Differential: at
5°C
3°C
T=5°C
T/2+2°C(4.5°C)
Cooling / heating differential : at 3°C
Automatic heating
22°C
Automatic cooling
25°C
T=3°C
Automatic heating
22°C
Automatic cooling
27°C
Display selection
Cooling→Heating
Display selection
Heating→Cooling
Cooling thermostat ON
Cooling thermostat OFF
Heating thermostat OFF
Heating thermostat ON
