SiE30-408 Adaptors for Connection of Air Conditioners
Appendix 217

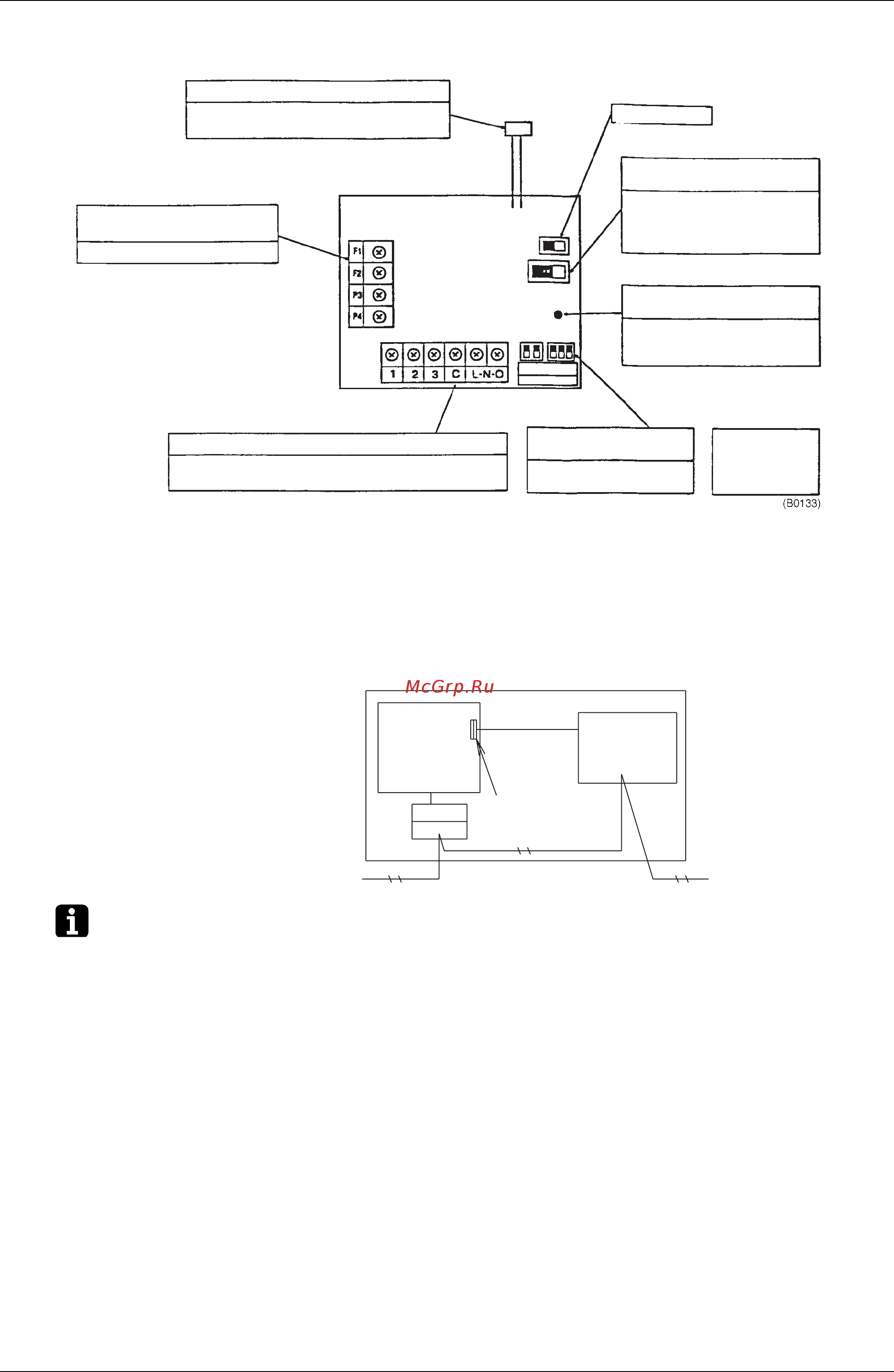

5.3.1 Part Names and Functions
5.3.2 Wiring
1. Connect the power supply cable coming from this adapter to the adapter power supply
connector on the PC board of the outdoor unit, indoor unit, or BS unit.
2. Connect the connecting wires to each terminal block, and terminals F1 and F2 on the PC
board as shown in figure below. (Use 2-core wires. No polarities.)
3. For the connecting wires, use wiring ties provided and tie them to low voltage wires or else in
the switch box.
Notes: In order to built this adapter in the BS unit, connect wires between the “F1 and F2 on the
indoor unit side” of the BS unit and the “F1 and F2” of the adapter.
Tie the lead wires and connecting wires of this adapter so that these wires will not come into
contact with the lid of the switch box.
Power supply connector (D1,D2)
Don't move it.
SS1
SS2
To adaptor power supply connector on
indoor unit or BS unit
Function switch (SS1) (Factory
set: On)
The contents of the address
setting switch set the COOL/
HEAT address, demand address,
or both addresses.
Microcomputer normal monitor
(HAP: GRN)
Flickers when the
microcomputer is operating
normally.
For details,
see the wiring
diagram (rear
surface).
Address setting switch
(DS1,2)
Sets cool/heat address or
demand address.
Demand, low-noise input terminal block (XIM)
Connects control input from electrical appendices (host
computer monitor panel, demand controller, timer, ect.).
Terminal block for transmission
(F1, F2)
Seeing wiring method.
F2F1
F2F1
IN - OUT
(Note 1)
Switch box
Outdoor unit
PC board
or
Indoor unit
PC board
or
BSunit PC board
External control
adapter of
outdoor unit
Adapter power
supply connector
Terminal
block
