SiE30-408 Adaptors for Connection of Air Conditioners
Appendix 207
5.1.4 Function (Overview)
1. ON / OFF control impossible by remote controller
Used to operate or stop the system only on the group remote control adapter side.
(Operation / Stop from the remote controller is disabled.)
2. OFF control possible by remote controller
Used to start operation on the group remote control adapter side and stop the operation on
the remote controller side.
3. Centralized
Used to start operation on the group remote control adapter side and infinitely operate or
stop the system on the remote controller side during an operative period of time set by the
timer.
4. Individual (Last pressing priority)
Used to operate or stop from both the group remote control adapter side and the remote
controller side.
<Example of application with remote control mode selector switch (RS1) set to Position
No. 6>

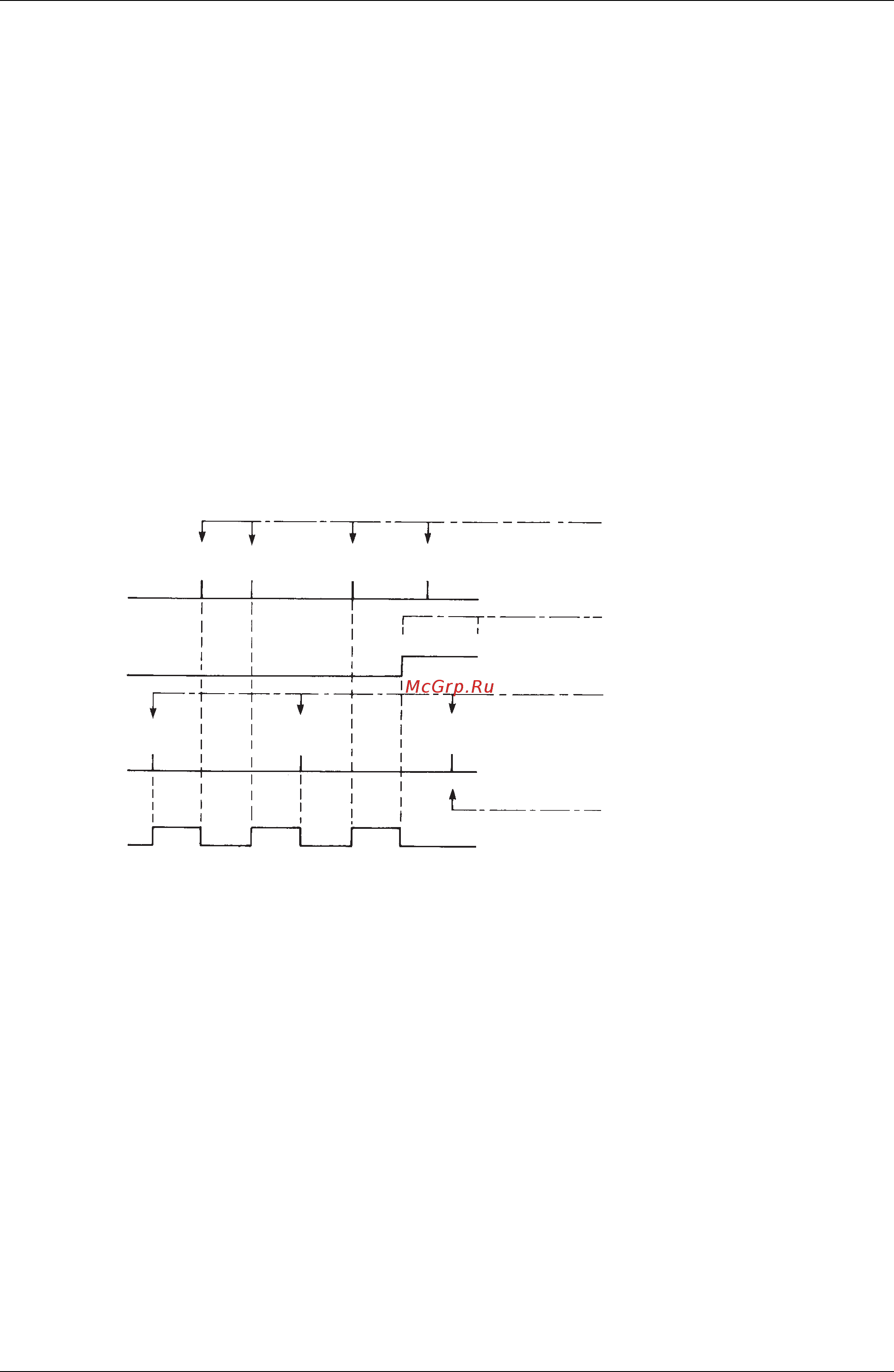

The following diagram shows the time chart of remote controller commands and indoor unit
against input signals.
Input A
Input B
Remote controller
Indoor unit
ON ONOFF
Command from remote controller
Operation / Stop command from centralized
control monitor or else (Instantaneous signal)
Forcedly stop command from centralized
control monitor or else (Normal signal)
Operate
Stop
ON
OFF
ON
OFF
Indoor unit stop and remote controller inhibited
Indoor unit operating conditions
