Control of Indoor Unit SiE30-408
34 Basic Information

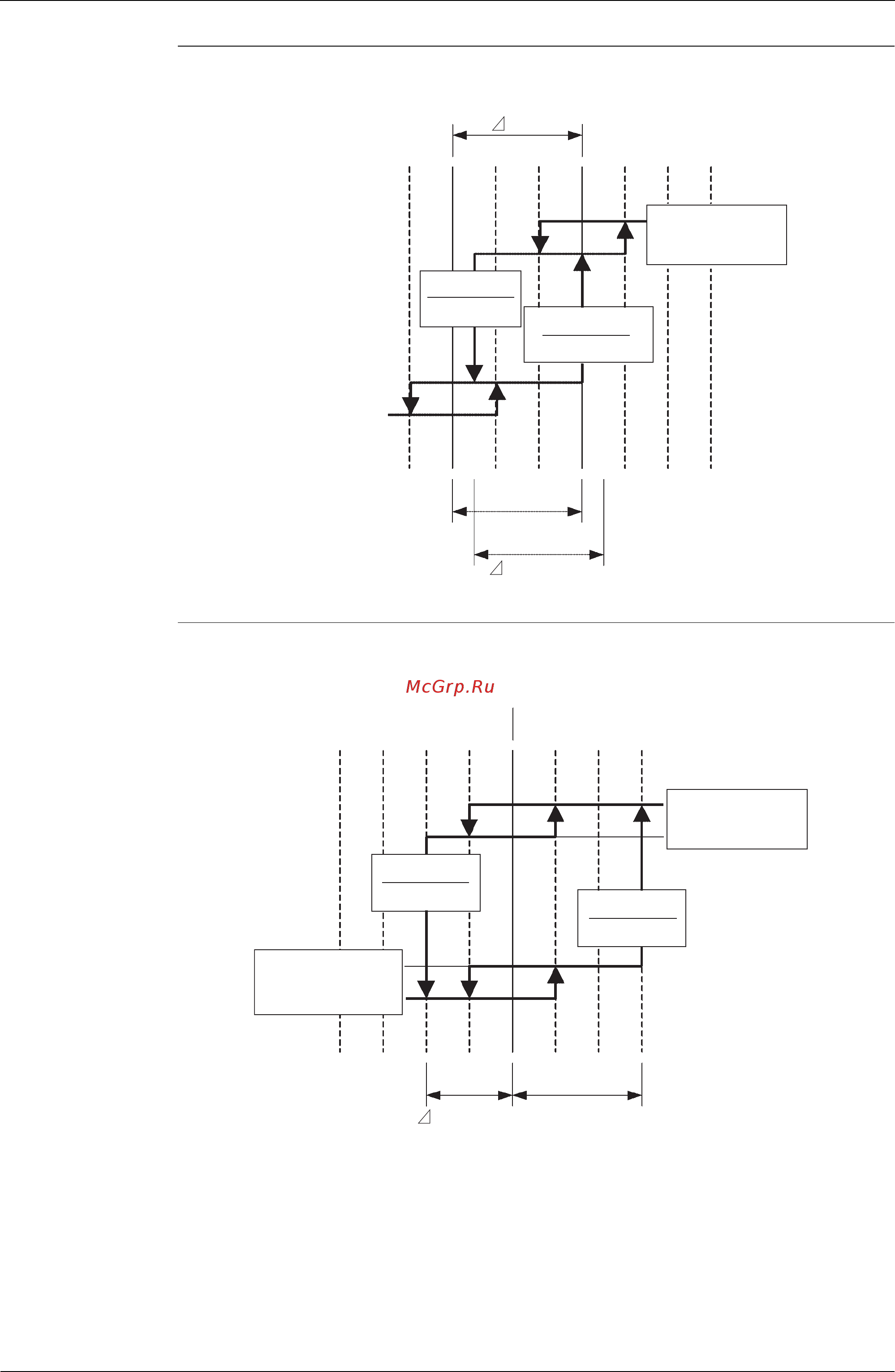

Cooling/Heating
Differential: at
3°C
Cooling/Heating
Differential: at
0°C
In order to prevent hunting in cooling / heating:
After cooling operation thermostat turns off, if the temperature does not reach setting
temperature –2°C, heating operation should not be on.
After heating operation thermostat turns off, if the temperature does not reach setting
temperature +3°C, cooling operation should not be on.
3°C
T=3°C
T/2+2°C(3.5°C)
Automatic cooling
25°C
Automatic heating
22°C
Cooling thermostat ON
Cooling thermostat OFF
Heating thermostat OFF
Heating thermostat ON
Display selection
Cooling→Heating
Display selection
Heating→Cooling
3°C
T/2+2°C(2°C)
Automatic heating / cooling
25°C
Cooling thermostat ON
Cooling thermostat OFF
Heating thermostat OFF
Heating thermostat ON
Display selection
Cooling→Heating
Display selection
Heating→Cooling
