Biostar B150GT5 Версия 5.x [11/79] Dual channel memory installation

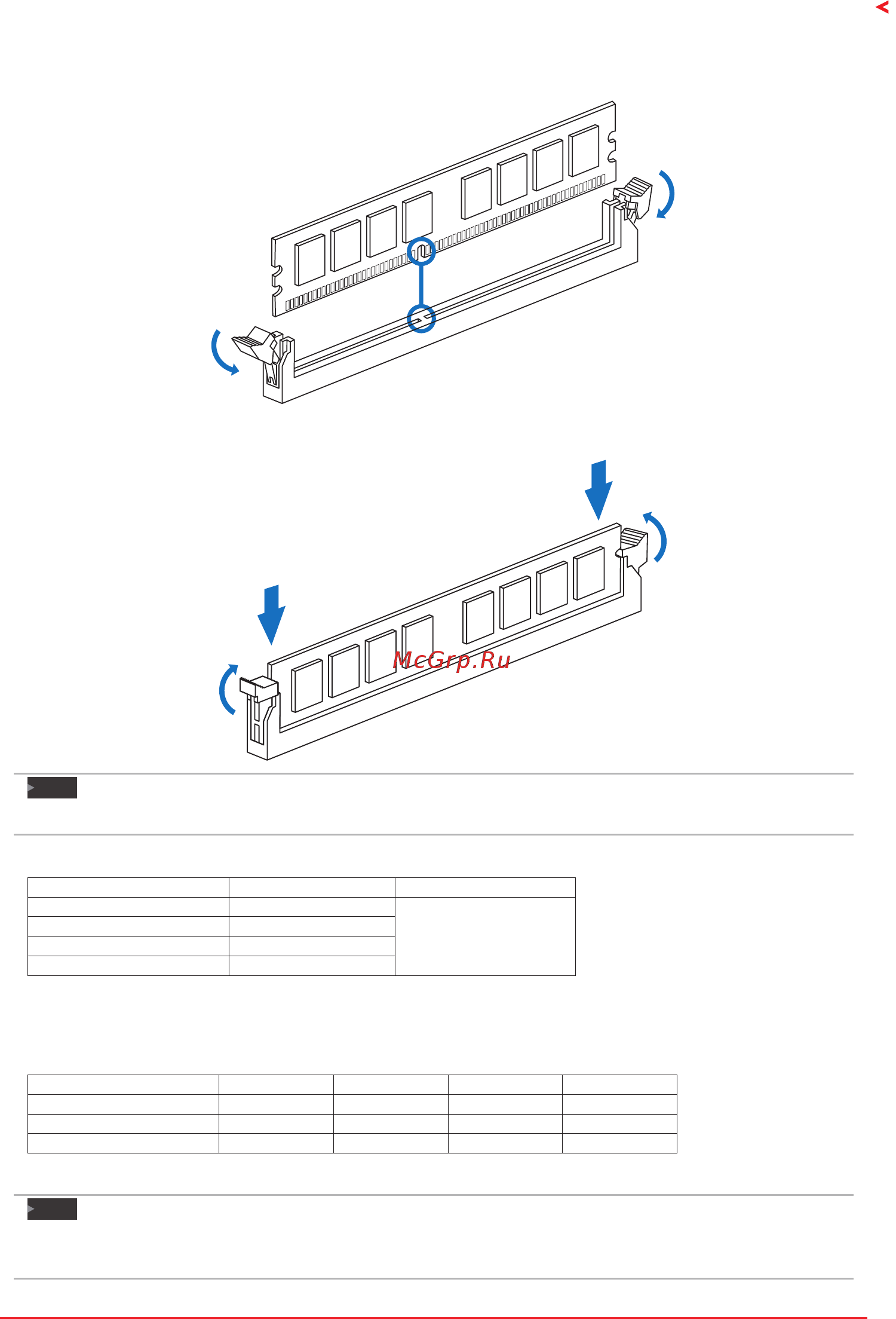

![Biostar B150GT5 Версия 5.x [11/79] Dual channel memory installation](/views2/1707896/page11/bgb.png)
Chapter 2: Hardware installaon | 11
Z170GT5 & B150GT5
Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot
such that the notch on the DIMM matches the break on the slot.
Step 2: Insert the DIMM vercally and rmly into the slot unl the retaining clips snap back in
place and the DIMM is properly seated.
Note
»
IftheDIMMdoesnotgoinsmoothly,donotforceit.Pullitallthewayoutandtryagain.
Memory Capacity
DIMM Socket Locaon DDR4 Module Total Memory Size
DIMMA1 4GB/8GB/16GB
Max is 64GB.
DIMMA2 4GB/8GB/16GB
DIMMB1 4GB/8GB/16GB
DIMMB2 4GB/8GB/16GB
Dual Channel Memory Installaon
Please refer to the following requirements to acvate Dual Channel funcon:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status DIMMA1 DIMMA2 DIMMB1 DIMMB2
Enabled O X O X
Enabled X O X O
Enabled O O O O
(O means memory installed, X means memory not installed.)
Note
»
Wheninstallingmorethanonememorymodule,werecommendtousethesamebrandand
capacitymemoryonthismotherboard.
