Biostar B150GT5 Версия 5.x [18/79] Buttons leds

18 | Chapter 2: Hardware installaon

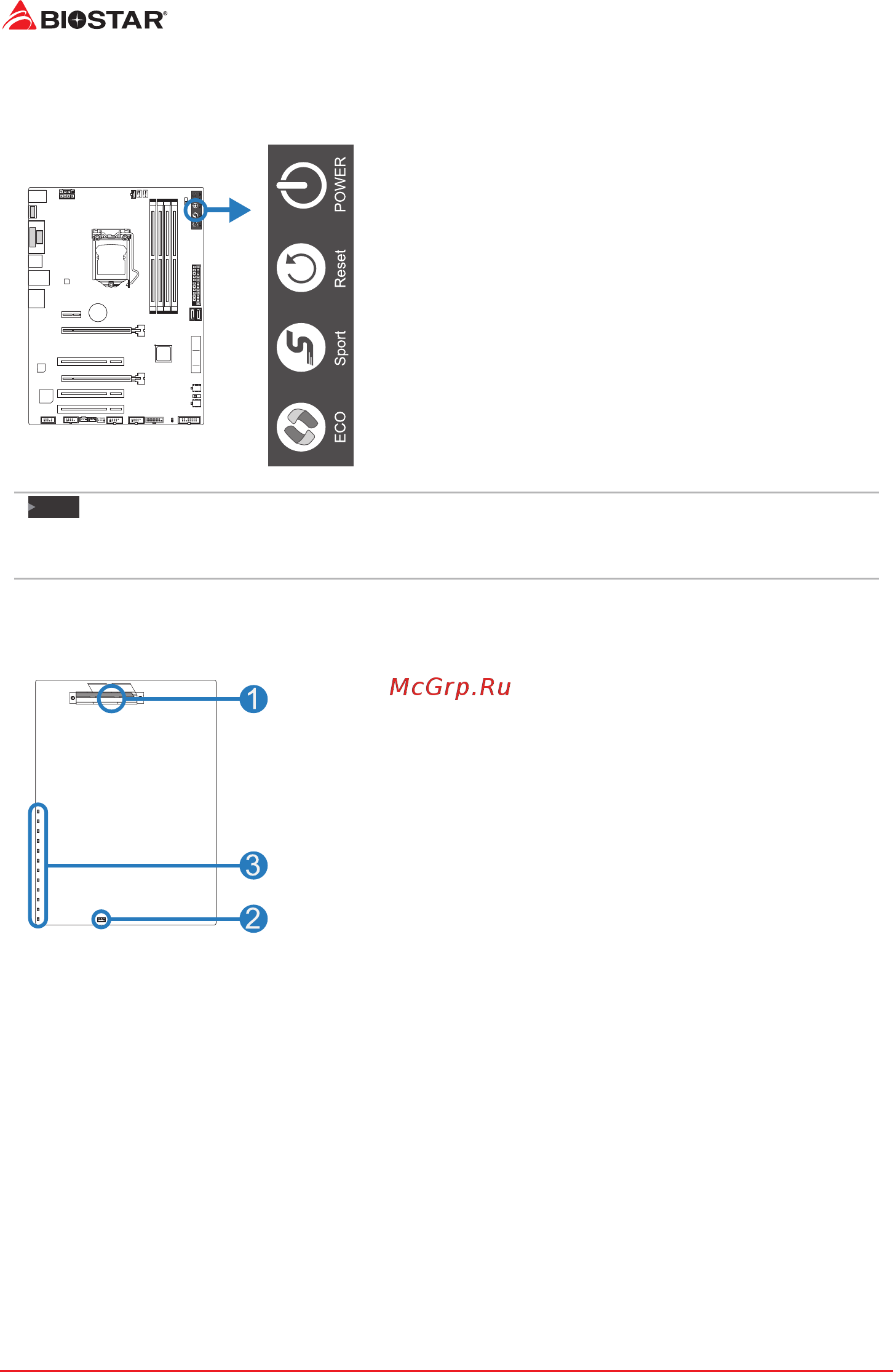

2.8 Buons & LEDs

Touch Buons

ECO Mode:

Enabled ECO mode, it allows you save energy by

slightly reducing system performance.

Sport Mode:

Enabled Sport mode, it allows you to maximize

system performance but may use more energy.

Reset:

Touch this buon to reboot the system.

Power:

Touch this buon to turn-on/o the system.

Note

 ECO/SPORTmodebuonswillonlybeavailablewhenrunningRACINGGTUlityinWindows

environment.

LEDs

Below LEDs are controlled by RACING GT program. Please refer to Chapter 3.3 for more detail

soware seng.

1. MOSFET Heatsink LED

2. RGB LED Strip Header (LED Strip is oponal)

3. on-board LEDs (x12)
