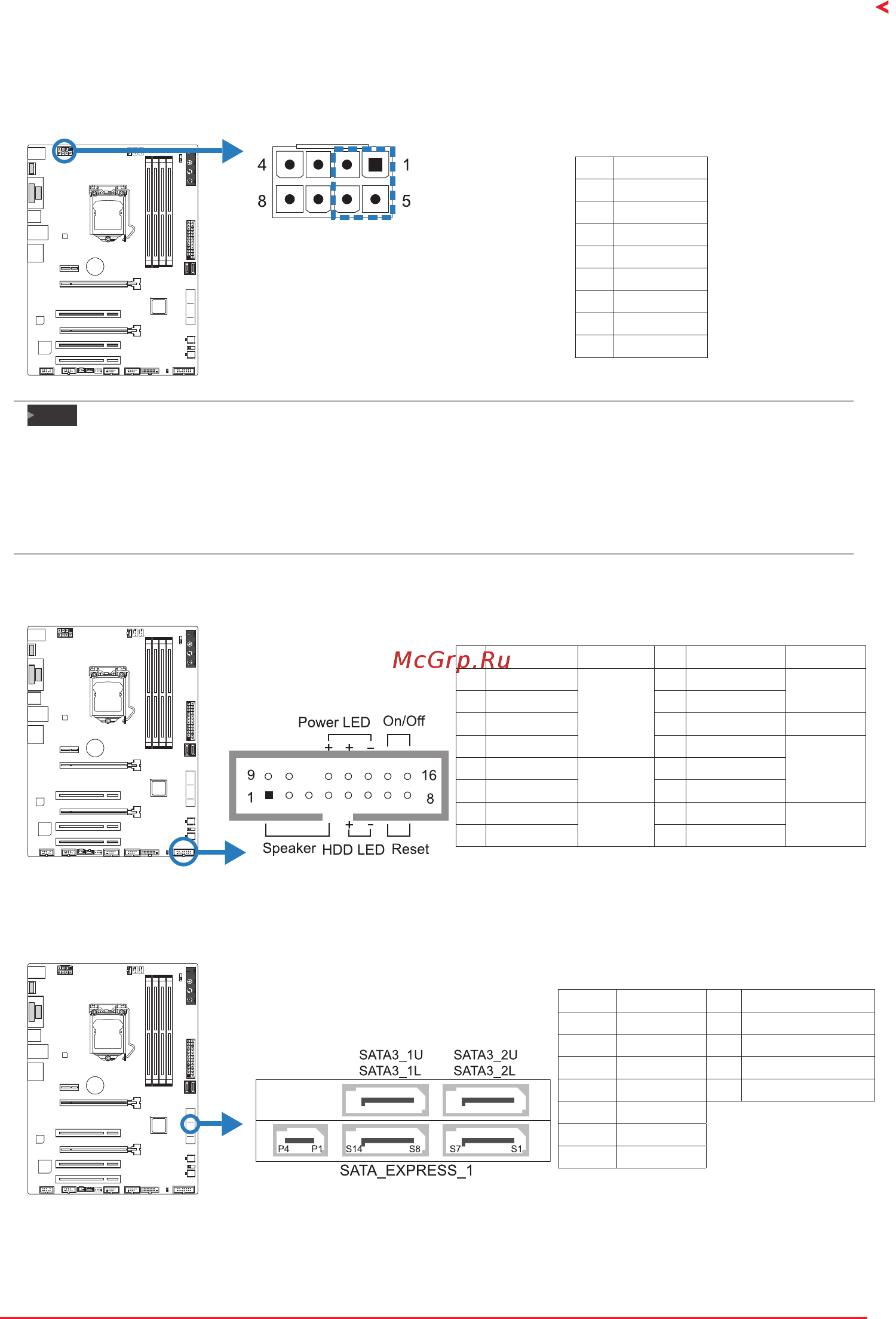

Chapter 2: Hardware installaon | 15
Z170GT5 & B150GT5
ATXPWR2: ATX Power Source Connector
The connector provides +12V to the CPU power circuit. If the CPU power plug is 4-pin, please
plug it into Pin 1-2-5-6 of ATXPWR2.
Pin Assignment
1 +12V
2 +12V
3 +12V
4 +12V
5 Ground
6 Ground
7 Ground
8 Ground
Note
»
Beforeyoupoweronthesystem,pleasemakesurethatbothATXPWR1andATXPWR2connectors
havebeenplugged-in.
»
Insucientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunconing
properly.UseofaPSUwithahigherpoweroutputisrecommendedwhenconguringasystemwith
morepower-consumingdevices.
PANEL1: Front Panel Header
This 16-pin header includes Power-on, Reset, HDD LED, Power LED, and speaker connecon.
Pin Assignment Funcon Pin Assignment Funcon
1 +5V
Speaker
Connector
9 N/A
N/A
2 N/A 10 N/A
3 N/A 11 N/A N/A
4 Speaker 12 Power LED (+)
Power LED5 HDD LED (+)
Hard drive
LED
13 Power LED (+)
6 HDD LED (-) 14 Power LED (-)
7 Ground
Reset
buon
15 Power buon
Power-on
buon
8 Reset control 16 Ground
SATA_Express_1: SATA Express Connector
Each SATA Express connector can support one SATA Express device or two SATA devices.
Pin Assignment Pin Assignment
S1/S8 Ground P1 Reserved
S2/S9 TX+ P2 PERST#
S3/S10 TX- P3 CLKREQ#/DEVSLP
S4/S11 Ground P4 IFDet
S5/S12 RX-
S6/S13 RX+
S7/S14 Ground
