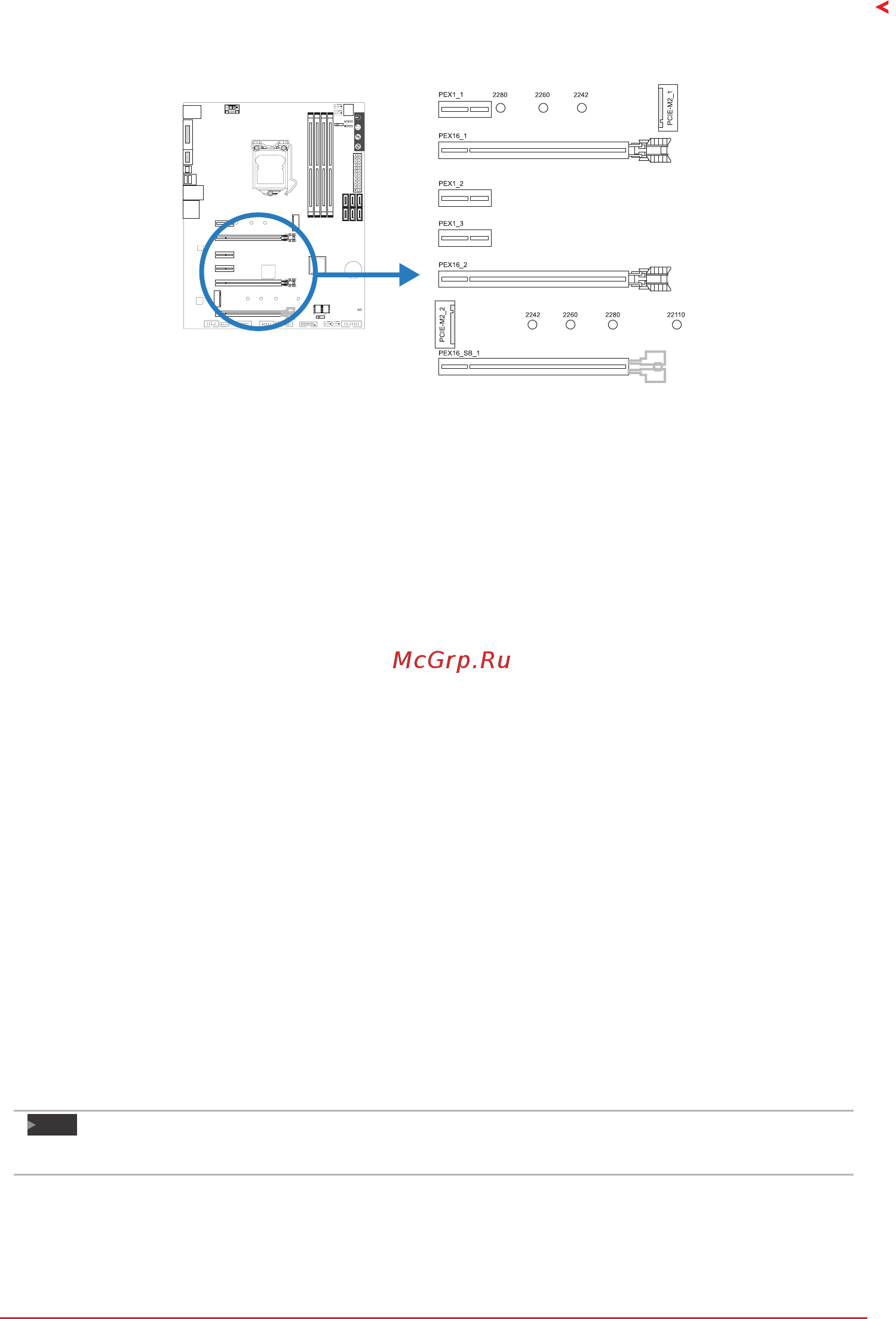

2.5 Expansion Slots

PEX16_1/PEX16_2: PCI-Express Gen3 x16 Slots (x8 speed)

• PCI-Express 3.0 compliant.

• Theorecal maximum bandwidth using two slots simultaneously is 8GB/s for each slot, a

total of 16GB/s.

• Supports 3-Way AMD® CrossFire™ Technology.

PEX16_SB_1: PCI-Express Gen3 x16 Slots (x4 speed)

• PCI-Express 3.0 compliant.

• Theorecal maximum bandwidth using two slots simultaneously is 4GB/s for each slot, a

total of 8GB/s.

• Support Intel® Rapid Storage Technology.

• Share bandwidth with PCIE-M2_2 slot.

PEX1_1/1_2/1_3: PCI-Express Gen3 x1 Slots

• PCI-Express 3.0 compliant.

• Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total.

PCIE-M2_1: M.2 (Key M) Slot

• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct posion.

• Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x4

(32Gb/s).

• Support Intel® Rapid Storage Technology & Intel® Optane Technology.

PCIE-M2_2: M.2 (Key M) Slot

• The M.2 slot supports M.2 Type 2242/2260/2280/22110 SSD module. When installing

M.2 SSD module, please place the screw and hex pillar to correct posion.

• Support M.2 PCI Express module up to Gen3 x4 (32Gb/s).

• Support Intel® Rapid Storage Technology & Intel® Optane Technology.

Note



WhenusingSATASSDmoduleonPCIE-M2_1slot,theSATA3_1connectorwillbedisabled.
