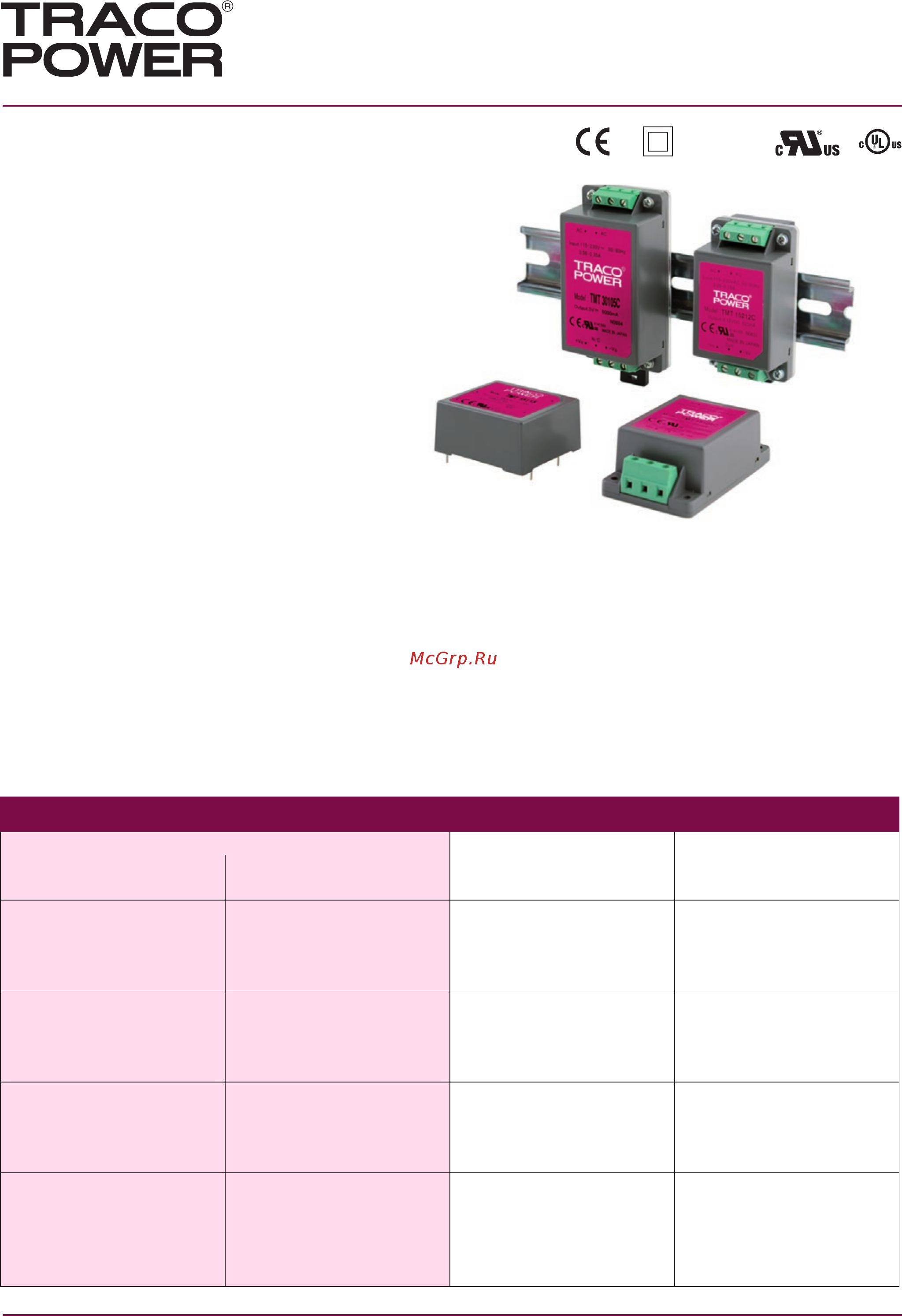

http://www.tracopower.com
Features
◆ Ultra compact, fully encapsulated
plastic case
◆ Single-, dual- and triple output models
◆ 2 package styles:
- with screw terminal block for
chassis mount
- with solder pins for PCB mount
◆ DIN-rail mount adaptor (option)
◆ Universal Input 85-264VAC, 50/60Hz
◆ Protection class ll
◆ Approved to IEC/UL 60950-1 and
IEC/UL 60601-1 medical safety standard
◆ UL 508 listed (chassis mount version)
◆ EMI according to EN 55022, class B and
FCC level B
◆ Short circuit and overload protection
◆ Lead-free design – RoHS compliant
◆ 3-year product warranty
The TMT series power modules are AC/DC power supplies in an ultra compact
fully encapsulated module. They feature easy installation with screw terminals and
optional DIN-rail mounting adaptor or direct PCB mounting with solder pins. Com-
pliance with international safety standards including UL 508 listing qualify these
products for worldwide markets. For application in medical instrumentation, the
modules are also approved to the EN/UL 60601-1 safety standard.
High reliability is provided by use of industrial quality grade components and
conservative temperature specifications. These AC/DC modules offer an interest-
ing power supply solution for many space critical applications in commercial and
industrial electronic equipment.
Order Code Output Power Output 1
PCB-Mount Chassis Mount max.
with Solder Pins
with Screw Terminal Block
TMT 10105
5 VDC/2000 mA
TMT 10112
10 Watt
12 VDC/840 mA
TMT 10115
15 VDC/670 mA
TMT 10124
24 VDC/420 mA
TMT 15105 TMT 15105C
5 VDC/3000 mA
TMT 15112 TMT 15112C
15 Watt
12 VDC/1250 mA
TMT 15115 TMT 15115C
15 VDC/1000 mA
TMT 15124 TMT 15124C
24 VDC/625 mA
TMT 30105 TMT 30105C
5 VDC/6000 mA
TMT 30112 TMT 30112C
30 Watt
12 VDC/2500 mA
TMT 30115 TMT 30115C
15 VDC/2000 mA
TMT 30124 TMT 30124C
24 VDC/1250 mA
TMT 50105 TMT 50105C
5 VDC/9000 mA
TMT 50112 TMT 50112C
12 VDC/4200 mA
TMT 50115 TMT 50115C 50 Watt
15 VDC/3400 mA
TMT 50124 TMT 50124C
24 VDC/2300 mA
TMT 50148 TMT 50148C
48 VDC/1150 mA
Single Output Models
AC/DC Power Modules
TMT Series, 10 to 50 Watt
Page 1 of 8
CB
Scheme
UL 508UL 60950-1
UL 60601-1
