http://www.tracopower.com Page 5 of 8
AC/DC Power Modules
TMT Series 10 to 50 Watt

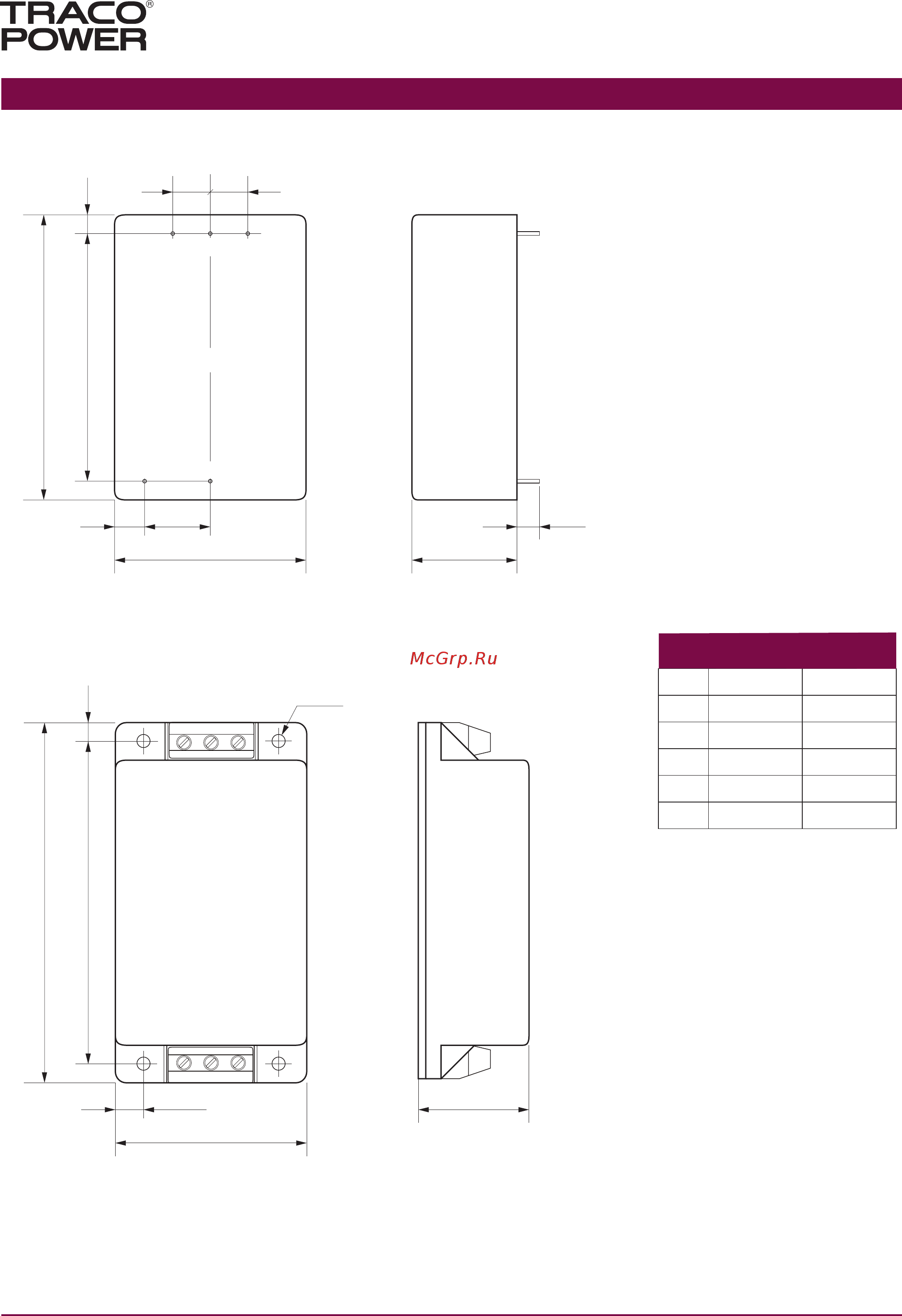

Outline Dimensions
8.0
76.0
(2.99)
66.0
(2.60)
5.0
(0.20)
(0.31)
17.5
(0.70)
51.0
(2.01)
10.0
(0.39)
10.0
(0.39)
28.0
(1.10)
5.0
(0.20)
Bottom view
1
2
5 4 3
7.5
96.0
(3.78)
86.0
(3.39)
5.0
(0.20)
(0.30)
51.0
(2.01)
4x ø 3.5
(0.14)
29.5
(1.16)
4 5
2
NC
(Top view)
1
3
Weight: 180 g (6.3 oz)
Pin diameter: 1.0 (0.04)
Pin Single Dual
1
AC in AC in
2
AC in AC in
3
–V out –V out
4
No pin/con Common
5
+V out +V out
Connection
TMT 30 single output models and TMT 30212 & TMT 30215 (solder pins)
TMT 30C single output models and TMT 30212C & TMT 30215C (screw terminal block)
Weight: 165 g (5.8 oz)
Dimensions in [mm], ( ) = Inches
Case tolerances: ±1.0 (±0.0.4)
Pin pich tolerance: ±0.5 (±0.02)
Mounting hole tolerance: ±0.5 (±0.02)
