http://www.tracopower.com Page 4 of 8
AC/DC Power Modules
TMT Series 10 to 50 Watt

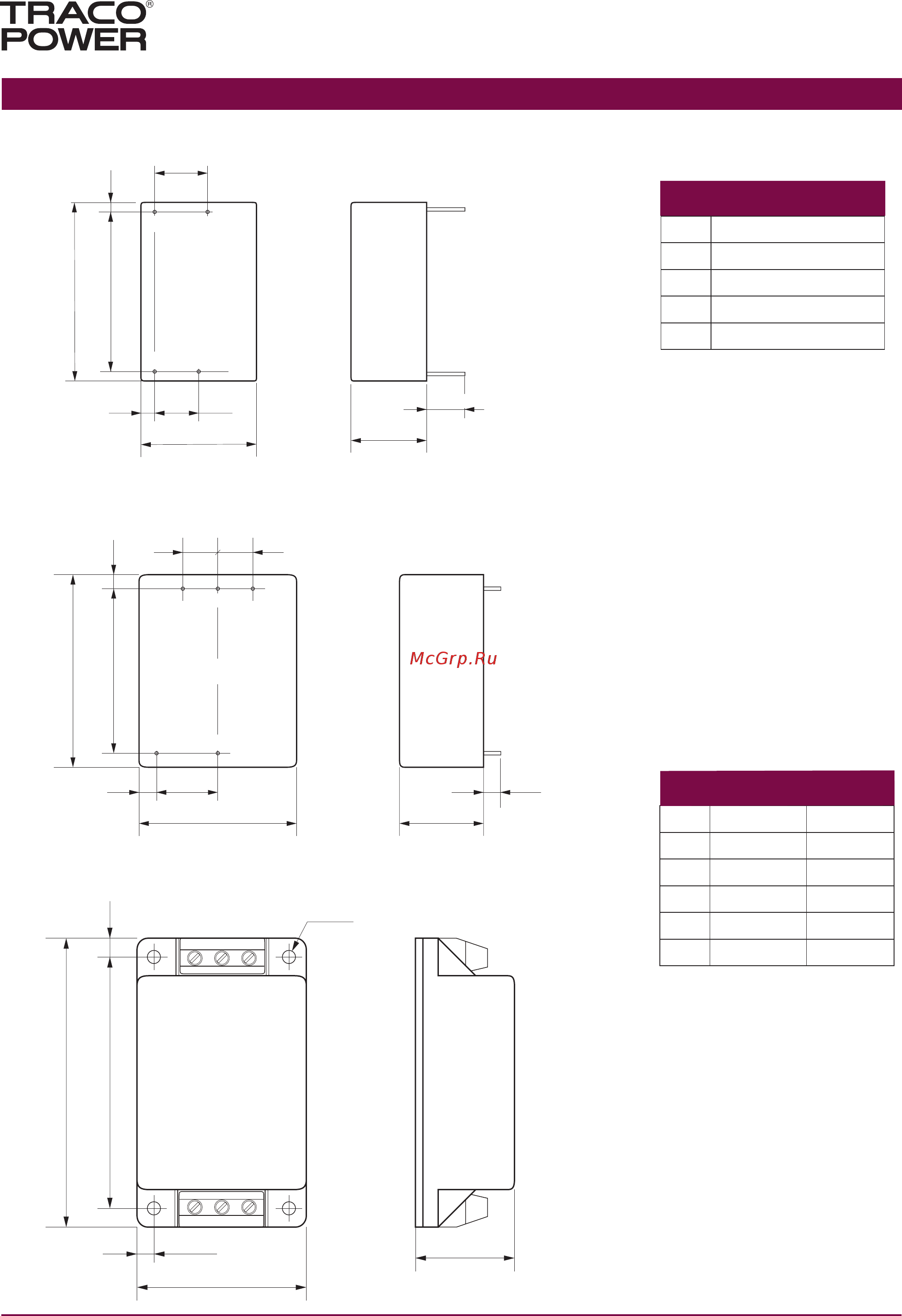

Outline Dimensions
5.0
55.0
(2.17)
47.0
(1.85)
4.0
(0.16)
(0.20)
17.5
(0.70)
45.0
(1.77)
10.0
(0.39)
10.0
(0.39)
24.0
(0.94)
5.0
(0.20)
1 2
5 4 3
Bottom view
26.4
(1.04)
4.5
(0.18)
45.0
(1.77)
77.0
(3.03)
67.0
(2.64)
5.0
(0.20)
4x ø 3.5
(0.14)
4 5
2 1 NC
(Top view)
3
TMT 15 models with solder pins
Pin Single Dual
1
AC in AC in
2
AC in AC in
3
–V out –V out
4
No pin
/con
Common
5
+V out +V out
Connection
Pin diameter: 1.0 (0.04)
Weight: 90 g (3.2oz)
TMT 15C models with screw terminal block
Weight: 75 g (2.6 oz)
3.8
50.8
(2.0)
44.2
(1.74)
3.3
(0.13)
(0.15)
12.7
(0.50)
33.0
(1.30)
15.24
(0.6)
21.6
(0.85)
10.9 min.
(0.44)
1 2
4 3
Bottom view
TMT 10 models
Pin
1
AC in
2
AC in
3
–V out
4
+V out
Connection
Weight: 52 g (1.8 oz)
Dimensions in [mm], ( ) = Inches
Case tolerances: ±1.0 (±0.0.4)
Pin pich tolerance: ±0.5 (±0.02)
Mounting hole tolerance: ±0.5 (±0.02)
Содержание
- Ac dc power modules 1
- Approved to iec ul 60950 1 and iec ul 60601 1 medical safety standard 1
- Chassis mount chassis mount 1
- Din rail mount adaptor option 1
- Emi according to en 55022 class b and fcc level b 1
- Features 1
- Lead free design rohs compliant 1
- Package styles with screw terminal block for 1
- Protection class ll 1
- Short circuit and overload protection 1
- Single dual and triple output models 1
- Single output models 1
- Tmt series 10 to 50 watt 1
- Ul 508 listed chassis mount version 1
- Ultra compact fully encapsulated plastic case 1
- Universal input 85 264vac 50 60hz 1
- With solder pins for pcb mount with solder pins for pcb mount 1
- Year product warranty 1
- Ac dc power modules 2
- Dual and triple output models 2
- Input specifications 2
- Output specifications 2
- Tmt series 10 to 50 watt 2
- Ac dc power modules 3
- General specifications 3
- Tmt series 10 to 50 watt 3
- Ac dc power modules 4
- Connection 4
- Outline dimensions 4
- Tmt series 10 to 50 watt 4
- Ac dc power modules 5
- Connection 5
- Outline dimensions 5
- Tmt series 10 to 50 watt 5
- Ac dc power modules 6
- Connection 6
- Outline dimensions 6
- Tmt series 10 to 50 watt 6
- Ac dc power modules 7
- Case tolerances 1 0 4 pin pich tolerance 0 0 2 mounting hole tolerance 0 0 2 7
- Connection 7
- Dimensions in mm inches 7
- Http www tracopower com page 7 of 8 7
- Outline dimensions 7
- Pin diameter 1 0 4 7
- Pin single 7
- Tmt 50 models with solder pins 7
- Tmt 50c models with screw terminal block 7
- Tmt series 10 to 50 watt 7
- Weight 245 g 8 oz 7
- Weight 295 g 10 oz 7
- Ac dc power modules 8
- Din rail mounting kit 8
- Tmt series 10 to 50 watt 8
