http://www.tracopower.com Page 6 of 8
AC/DC Power Modules
TMT Series 10 to 50 Watt

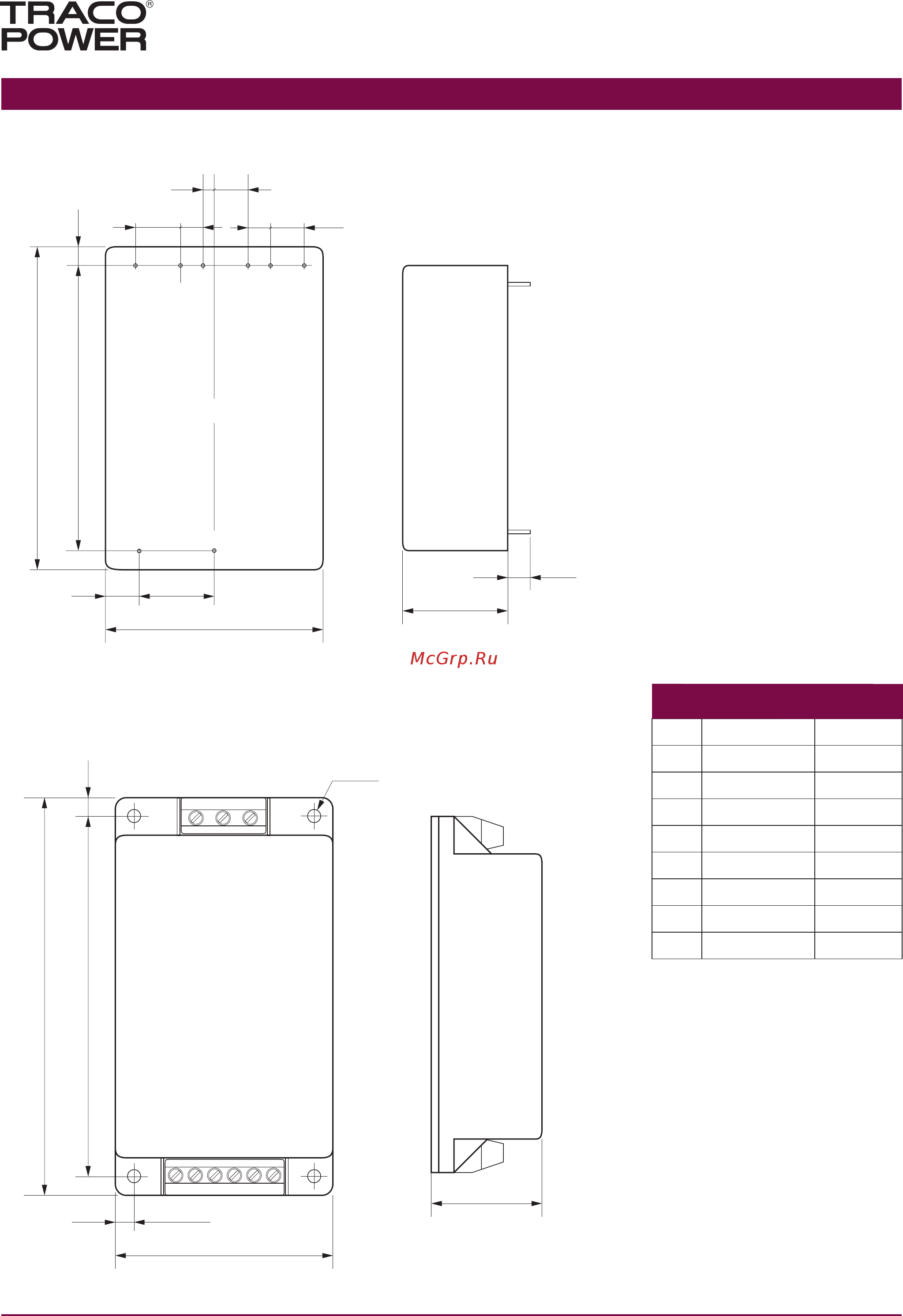

Outline Dimensions
9.0
76.0
(2.99)
86.0
(3.39)
5.0
(0.20)
(0.35)
20.0
(0.79)
58.0
(2.28)
28.0
(1.10)
5.0
(0.20)
Bottom view
1
2
5 4 3
8 7 6
12.0
(0.47)
9.0
(0.35)
6.0
(0.24)
6.0
(0.24)
9.0
(0.35)
3.0
(0.12)
5.0
106.0
(4.17)
96.0
(3.78)
5.0
(0.20)
(0.20)
58.0
(2.28)
4x ø 3.5
(0.14)
29.5
(1.16)
2 1 NC
(Top view)
8 3 6 74 5
Weight: 220 g (7.8 oz)
Pin diameter: 1.0 (0.04)
Pin Dual Triple
1
AC in AC in
2
AC in AC in
3
No pin/con. –V out 3
4
No pin/con. +V out 3
5
–V out 2 –V out 2
6
+V out 2 +V out 2
7
–V out 1 –V out 1
8
+V out 1 +V out 1
Connection
TMT 30 triple output models and TMT 30252 (solder pins)
TMT 30C triple output models and TMT 30252C (screw terminal block)
Weight: 200 g (7.1 oz)
Dimensions in [mm], ( ) = Inches
Casing tolerances: ±1.0 (±0.0.4)
Pin pich tolerance: ±0.5 (±0.02)
Mounting hole tolerance: ±0.5 (±0.02)
Содержание
- Ac dc power modules 1
- Approved to iec ul 60950 1 and iec ul 60601 1 medical safety standard 1
- Chassis mount chassis mount 1
- Din rail mount adaptor option 1
- Emi according to en 55022 class b and fcc level b 1
- Features 1
- Lead free design rohs compliant 1
- Package styles with screw terminal block for 1
- Protection class ll 1
- Short circuit and overload protection 1
- Single dual and triple output models 1
- Single output models 1
- Tmt series 10 to 50 watt 1
- Ul 508 listed chassis mount version 1
- Ultra compact fully encapsulated plastic case 1
- Universal input 85 264vac 50 60hz 1
- With solder pins for pcb mount with solder pins for pcb mount 1
- Year product warranty 1
- Ac dc power modules 2
- Dual and triple output models 2
- Input specifications 2
- Output specifications 2
- Tmt series 10 to 50 watt 2
- Ac dc power modules 3
- General specifications 3
- Tmt series 10 to 50 watt 3
- Ac dc power modules 4
- Connection 4
- Outline dimensions 4
- Tmt series 10 to 50 watt 4
- Ac dc power modules 5
- Connection 5
- Outline dimensions 5
- Tmt series 10 to 50 watt 5
- Ac dc power modules 6
- Connection 6
- Outline dimensions 6
- Tmt series 10 to 50 watt 6
- Ac dc power modules 7
- Case tolerances 1 0 4 pin pich tolerance 0 0 2 mounting hole tolerance 0 0 2 7
- Connection 7
- Dimensions in mm inches 7
- Http www tracopower com page 7 of 8 7
- Outline dimensions 7
- Pin diameter 1 0 4 7
- Pin single 7
- Tmt 50 models with solder pins 7
- Tmt 50c models with screw terminal block 7
- Tmt series 10 to 50 watt 7
- Weight 245 g 8 oz 7
- Weight 295 g 10 oz 7
- Ac dc power modules 8
- Din rail mounting kit 8
- Tmt series 10 to 50 watt 8
