Biostar T5 XE Версия 5.x [38/61] Bioscreen utility

Motherboard Manual

BIOScreen Utility

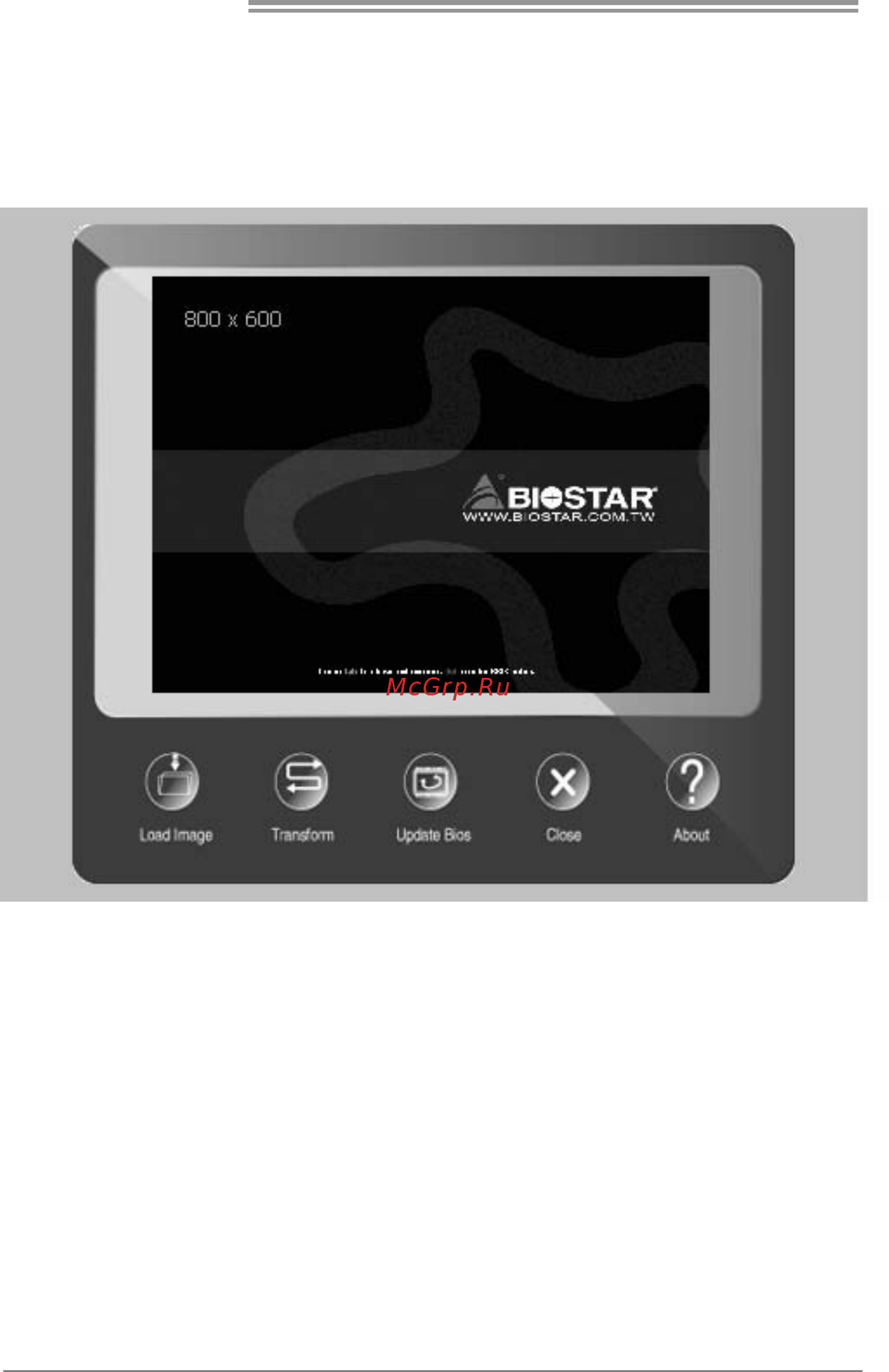

This utility allows you to personalize your boot logo easily. You can choose

JPG or BMP as your boot logo so as to customize your computer.

Please follow the following instruction to update boot logo:

1. Load Image：Choose the picture as the boot logo.

2. Transform：Transform the picture for BIOS and preview the result.

3. Update Bios：Write the picture to BIOS Memory to complete the update.
