Biostar T5 XE Версия 5.x [7/61] Chapter 2 hardware installation

T5 XE/T5XE CFX-SLI

CHAPTER 2: HARDWARE INSTALLATION

2.1 I

NSTALLING CENTRAL PROCESSING UNIT (CPU)

Special Notice:

Remove Pin Cap before installation, and make good preservation

for future use. When the CPU is removed, cover the Pin Cap on the

empty socket to ensure pin legs won’t be damaged.

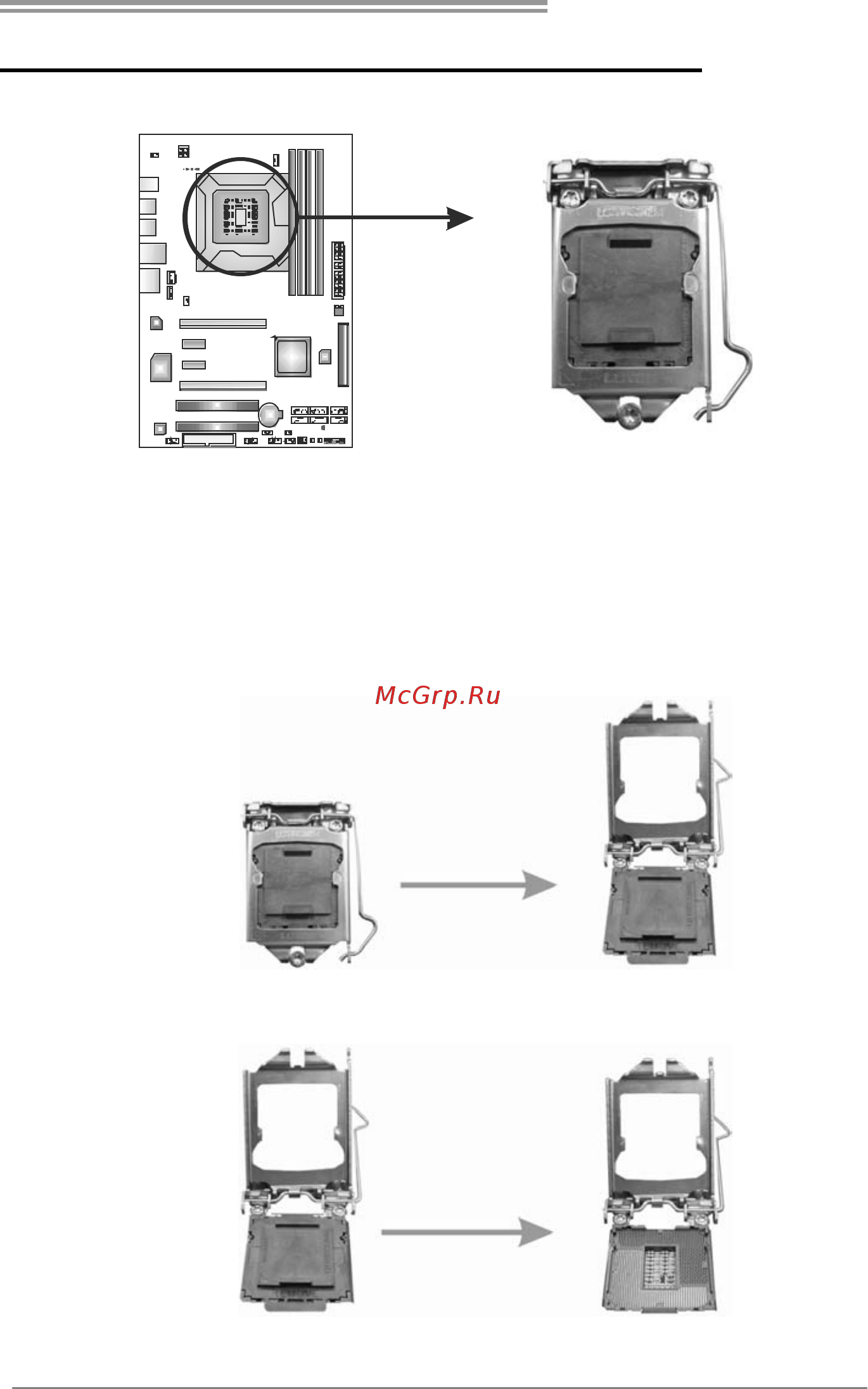

Step 1: Pull the socket locking lever out from the socket and then raise

the lever up.

Step 2: Remove the Pin Cap.
