T5 XE/T5XE CFX-SLI
3
SPEC
Front Panel Connector x1 Supports front panel facilities
Front Audio Connector x1 Supports front panel audio function
CD-in Connector x1 Supports CD audio-in function
S/PDIF out Connector x1 Supports digital audio out function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x2 System Fan Power supply
Clear CMOS Head er x1 Restore CMOS dat a to factory default
USB Connector x2 Each connector supports 2 front panel USB ports
Serial Port Connector x1 Connects to RS-232 Port
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
LAN port x1
USB Port x6
Audio Jack x6
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and Mic. connection
Board Size
220 (W) x 305 (L) mm
OS Support
Windows XP / Vista 32 / Vista 64 / 7
Biostar reserves the right to add or remove
support for any OS with or without notice

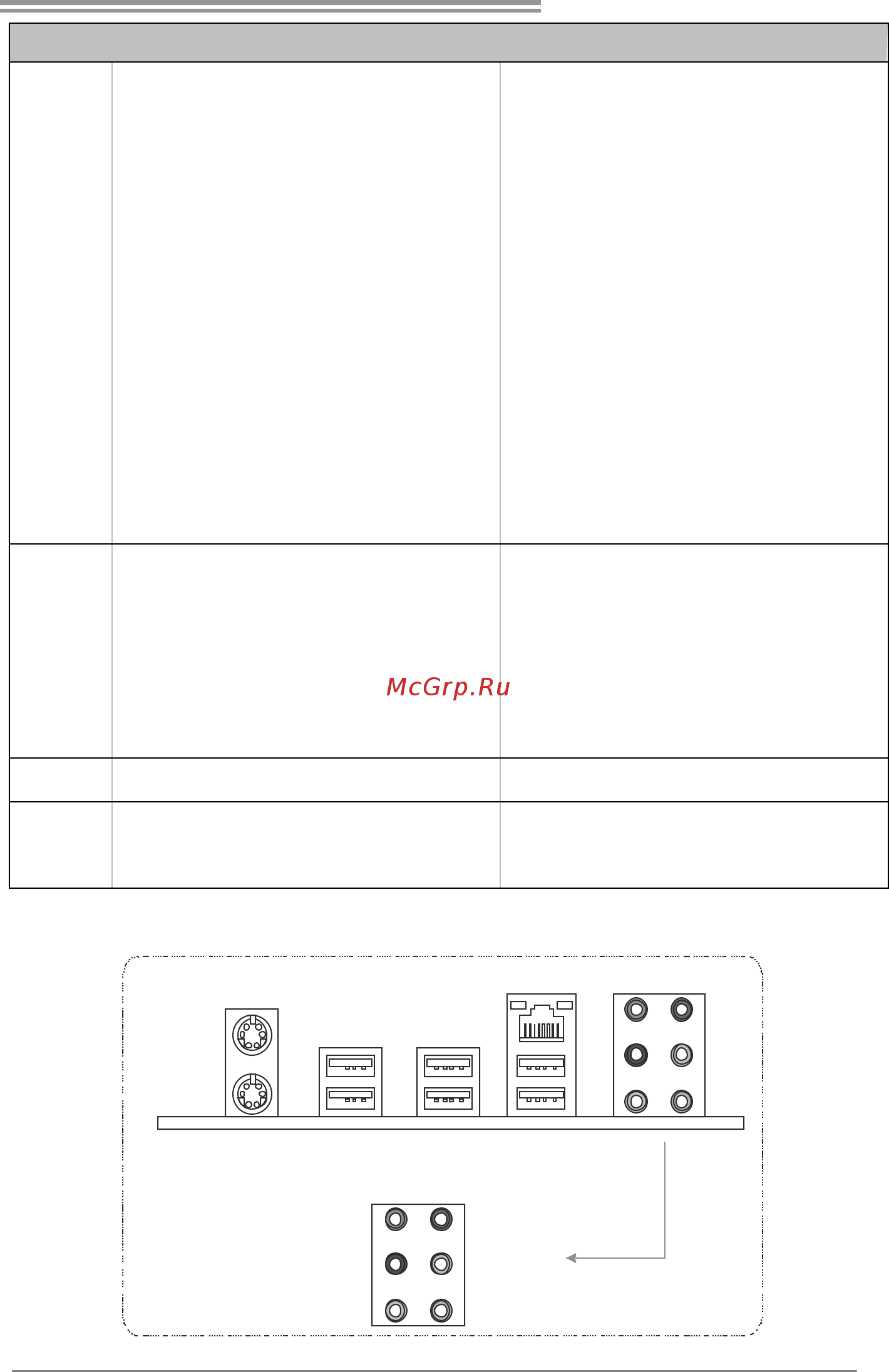

1.4 REAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
USBX2 USBX2
LAN
USBX2
Line In
Line Out
Mic In
Cent er
Surround
Sidesur round
