Biostar T5 XE Версия 5.x [32/61] Green power utility

Motherboard Manual

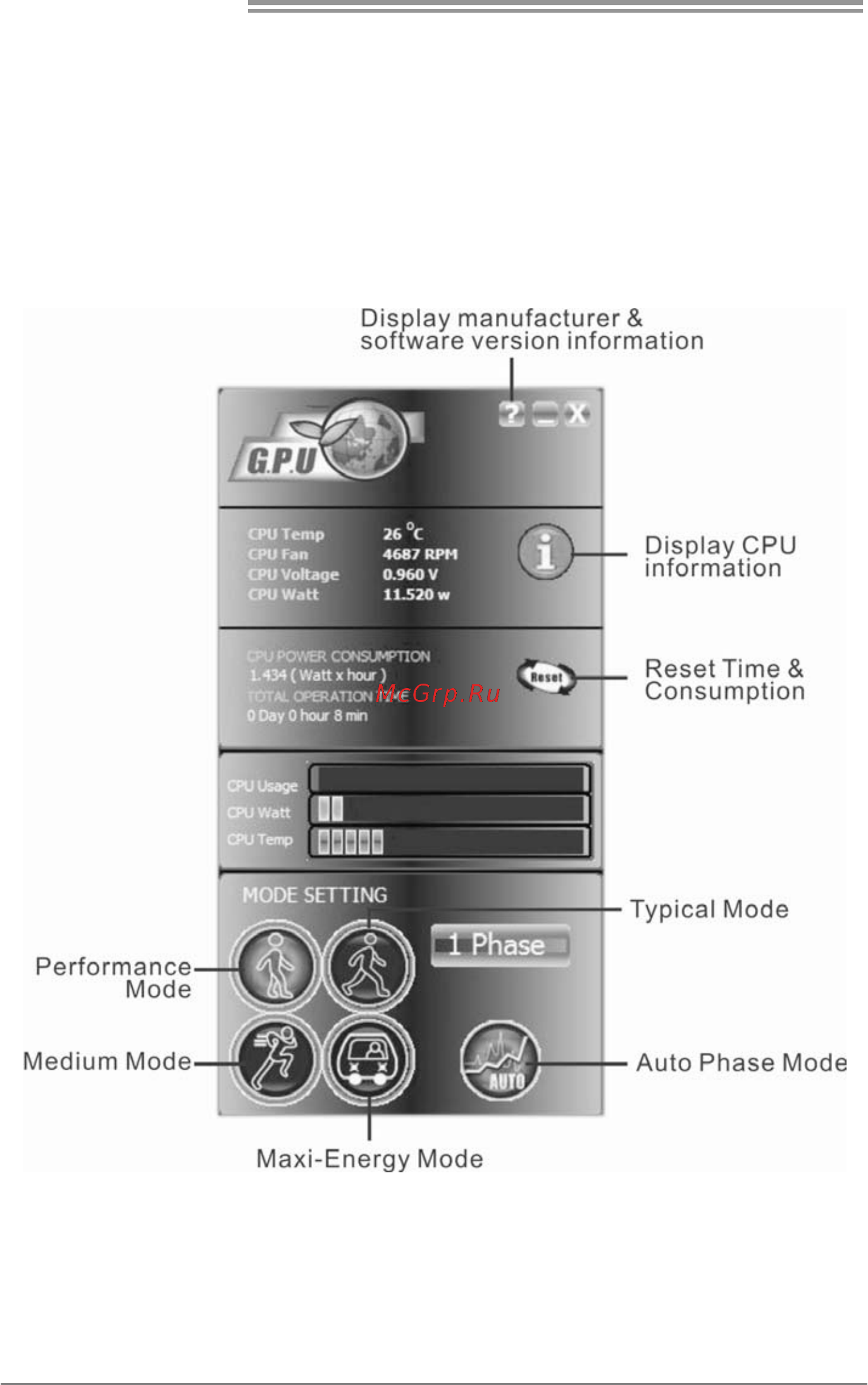

Green Power Utility

BIOSTAR G.P.U (Green Power Utility) is a new function. The utility enhances

energy efficiency by disabling extra phases while CPU is on light loading. It

integrates a friendly GUI to monitor your CPU Usage, CPU Watt, and CPU

Temperature; moreover, it optimizes power saving and best power efficiency

on your system.
