T5 XE/T5XE CFX-SLI

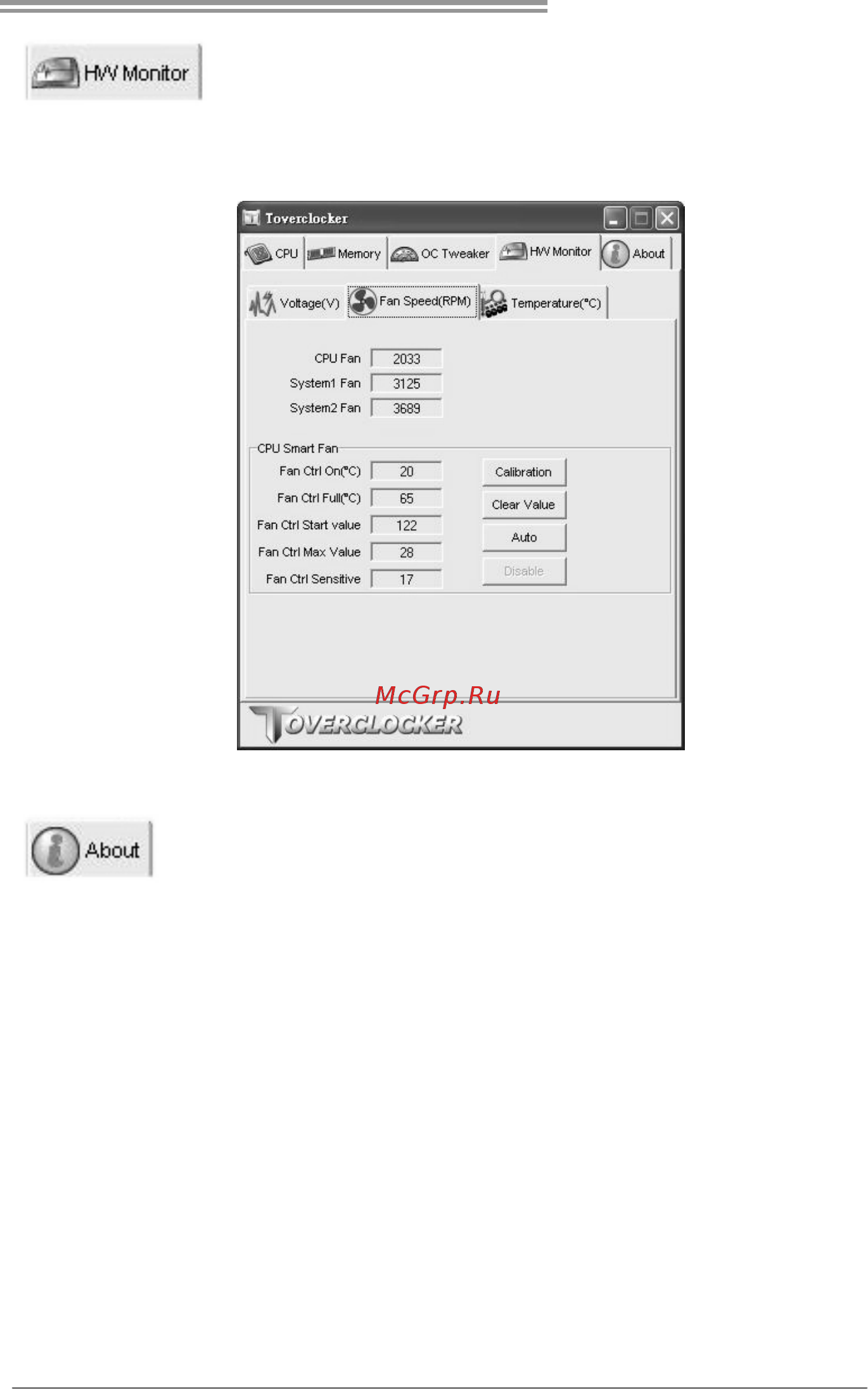

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and

temperature. Besides, you also can set related values for CPU Smart Fan.

The About tab provides information about manufacturer and software version.

You can upd ate new version by clicking the button “Live Update.”
