Motherboard Manual

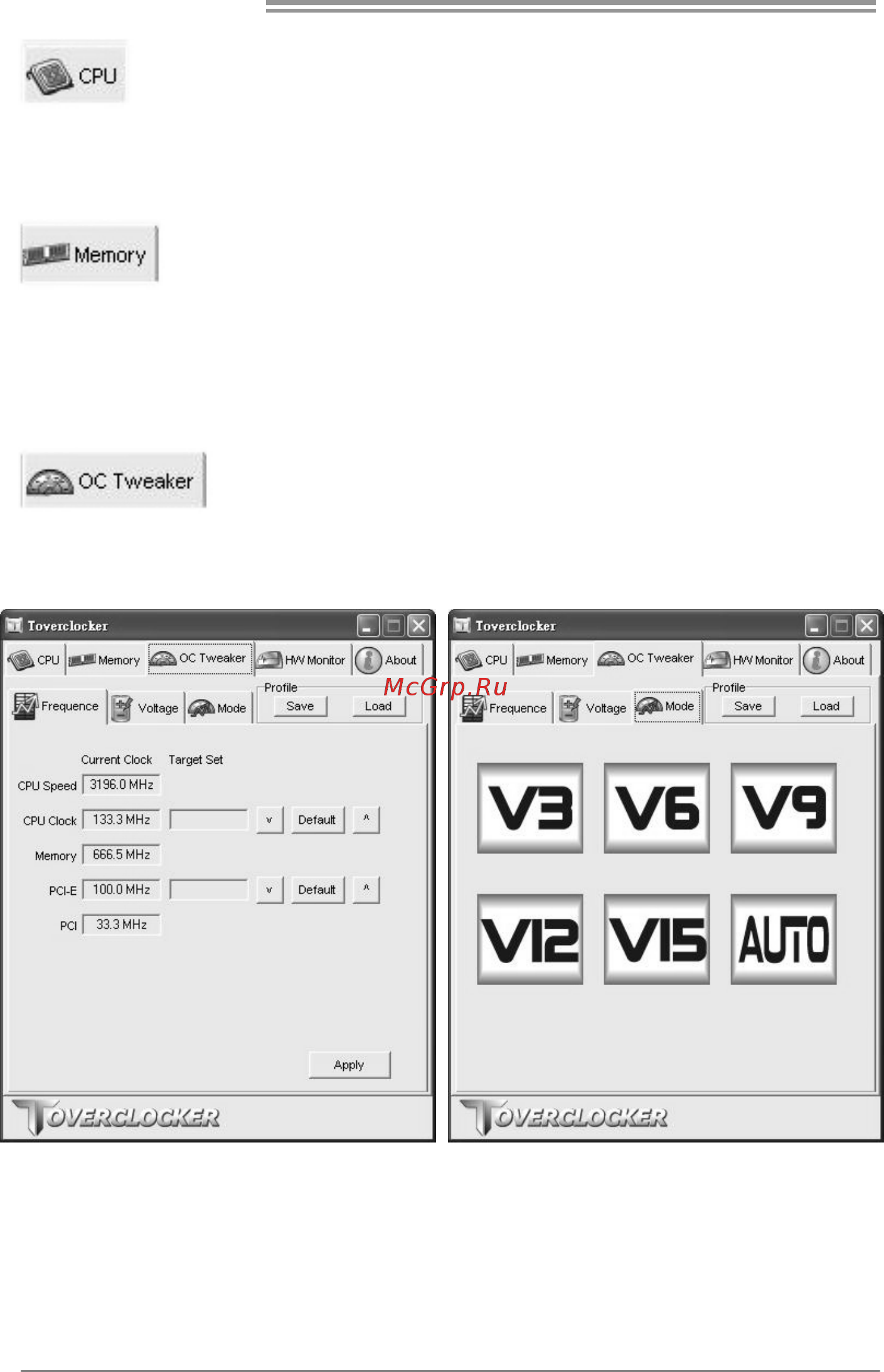

The CPU tab provides information on the CPU and motherboard.

The Memory tab provides information on the memory module(s).

You can select memory module on a specific slot to see its information.

The OC Tweaker tab allows you to change system clock settings and voltages

settings. It also provides six pre-set modes for you:
