Motherboard Manual
8

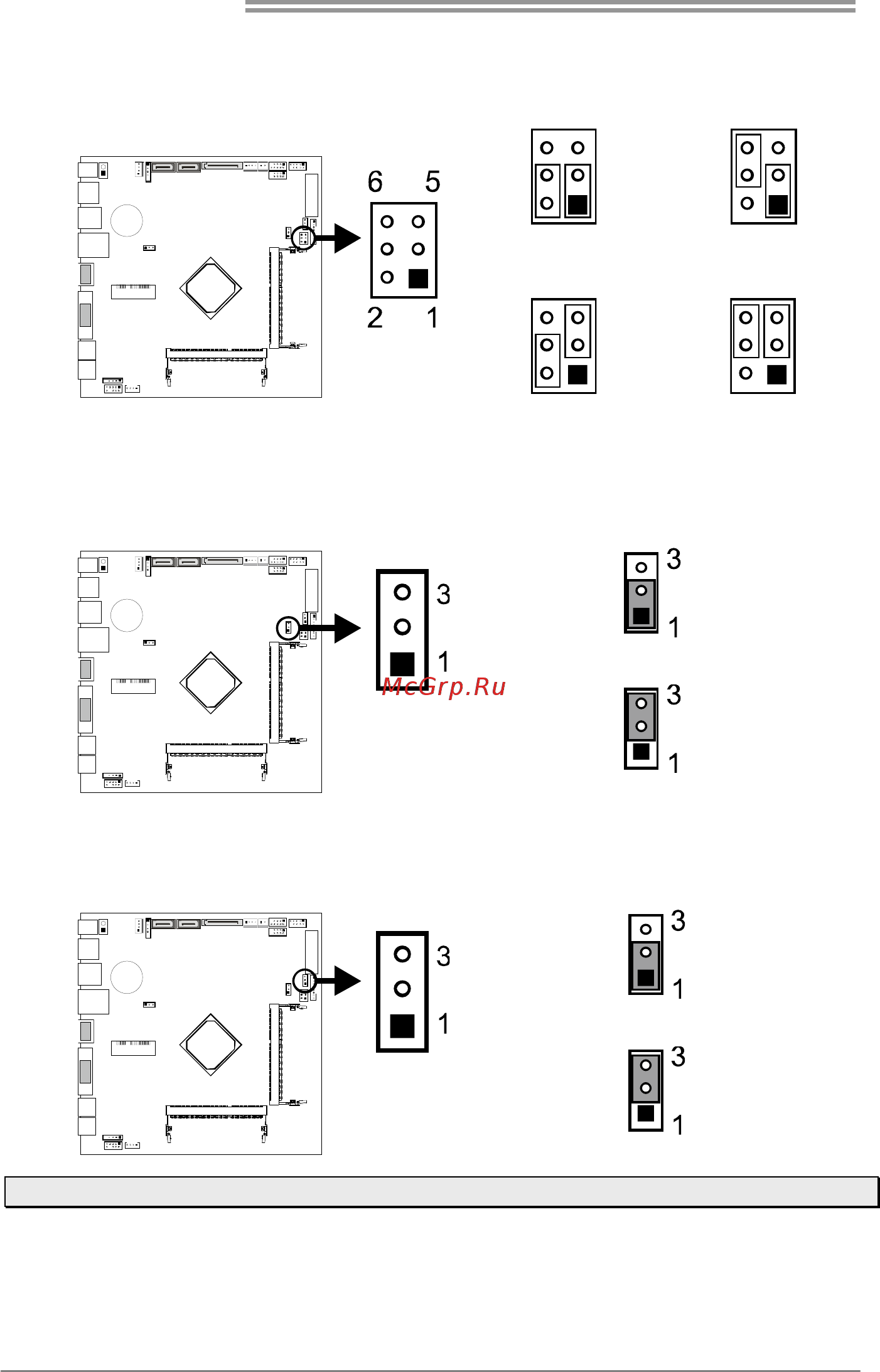

JRESOL_SEL1: LVDS Resolution Jumper
This jumper selects LVDS resolution.
Pin 1-3 & 2-4 Close:
1600 x 900 (default)
Pin 1-3 & 4-6 Close:
1920 x 1080
Pin 3-5 & 2-4 Close:
1366 x 768
Pin 3-5 & 4-6 Close:
N.A.
JLVDS_POWER1: LVDS Voltage Jumper
This jumper sets different screen voltage.
Pin 1-2 Close: 5V (default).
Pin 2-3 Close: 3.3V
JLVDS_BK1: Front Panel Display Voltage Jumper
This jumper selects the required operating voltage for the backlight panel.
Pin 1-2 Close: 19V (default).
Pin 2-3 Close: 12V
Caution: Incorrect voltage selection may damage the LVDS panel or inverter board.
