Motherboard Manual
12

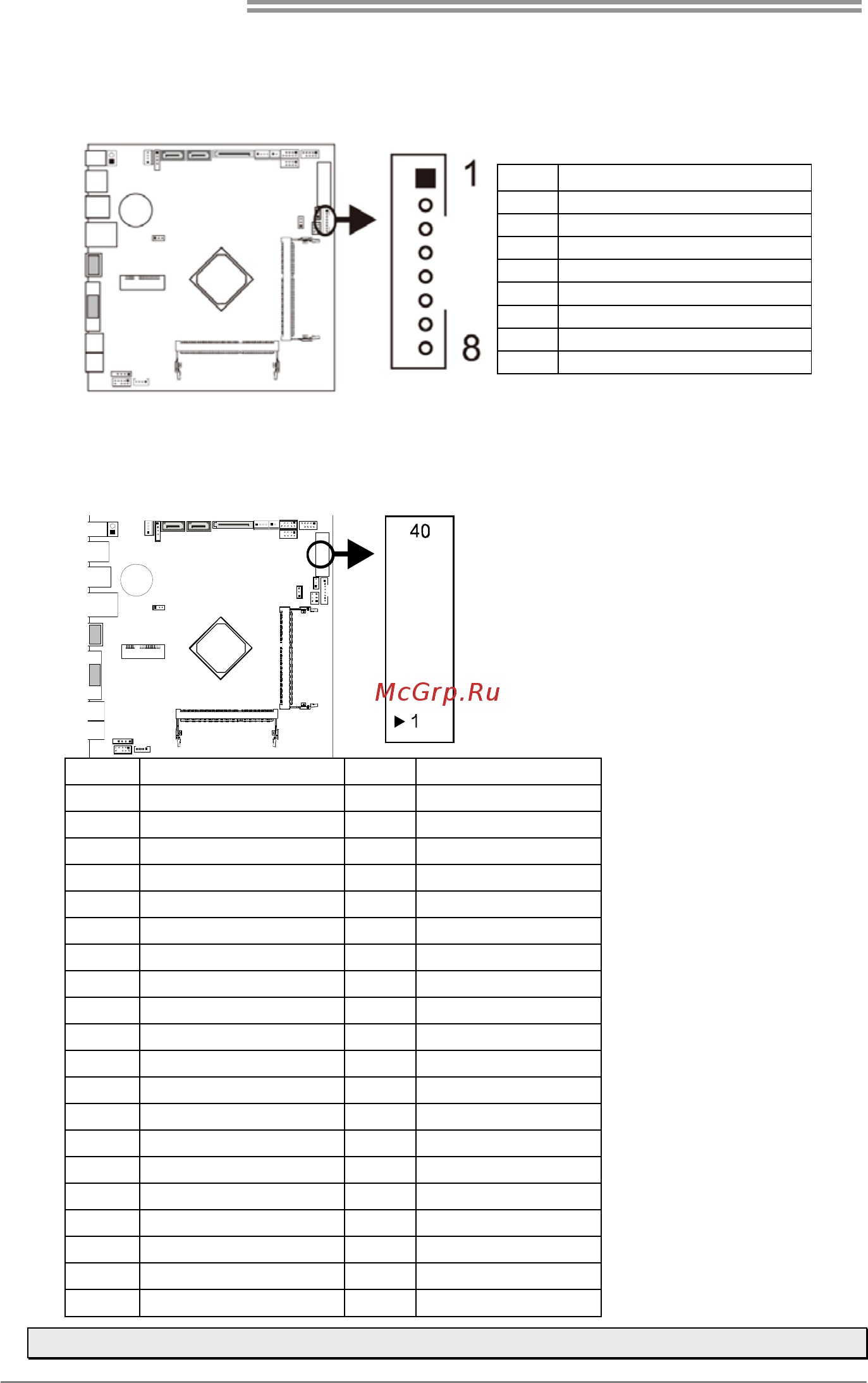

FPD1: Front Panel Display Brightness Connector
This connector provides an additional connector for powering the inverter or
driver board.
Pin Assignment
1 BKLT EN
(
volta
g
e:3.3V
)
2 BKLT PWM
3 BKLT PWR**
4 BKLT PWR**
5 BLK GND/Bri
g
htness GND
6 BLK GND/Bri
g
htness GND
7Bri
g
htness U
p
8Bri
g
htness Down
LVDS1: 40-pin LVDS Connector
This connector provides an internal 40-pin connector for flat panel display and
backlight connectivity.
Pin Assignment Pin Assignment
1 ODD_Lane3_P 2 ODD_Lane3_N
3 ODD_Lane2_P 4 ODD_Lane2_N
5 ODD_Lane1_P 6 ODD_Lane1_N
7 ODD_Lane0_P 8 ODD_Lane0_N
9 EVEN_Lane3_P 10 EVEN_Lane3_N
11 EVEN _Lane2_P 12 EVEN _Lane2_N
13 EVEN _Lane1_P 14 EVEN _Lane1_N
15 EVEN _Lane0_P 16 EVEN _Lane0_N
17 EDIE_GND 18 LCD_VCC*
19 LCD_VCC* 20 LCD_VCC*
21 N/C 22 EDID_3.3V
23 LCD_GND 24 LCD_GND
25 LCD_GND 26 ODD_CLK_P
27 ODD_CLK_N 28 BKLT_GND
29 BKLT_GND 30 BKLT_GND
31 EDIE_CLK 32 BLK_ENABLE
33 BKLT_PWM_DIM 34 EVEN_CLK_P
35 EVEN_CLK_N 36 BKLT_PWR**
37 BKLT_PWR** 38 BKLT_PWR**
39 N/C 40 EDIE_DATA
Note: * Voltage selected by JLVDS_POWER1. ** Voltage selected by JLVDS_BK1.
