J1800TH
11

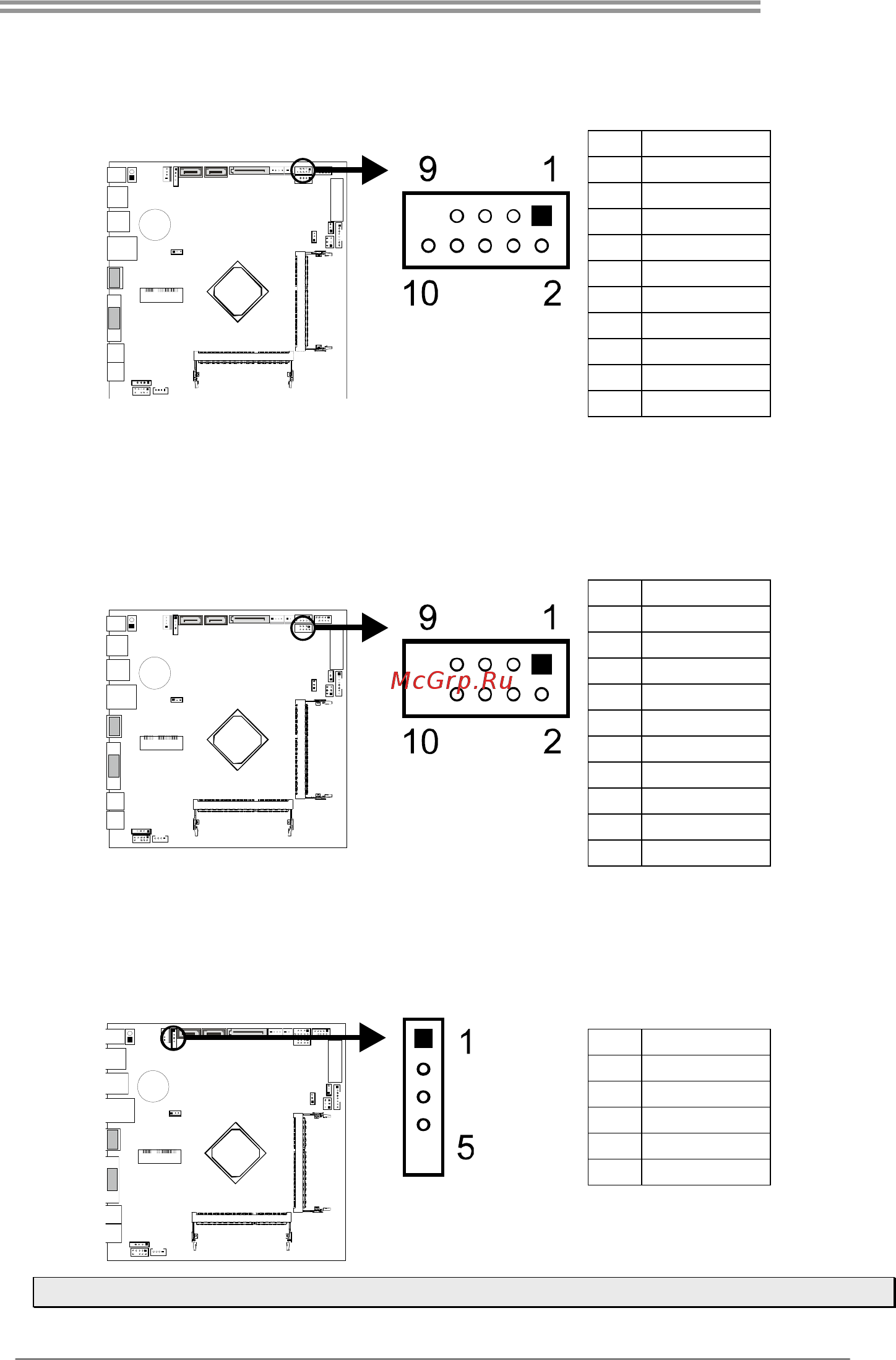

F_USB1: Front Panel Dual USB 2.0 Header
The connector extends USB ports to the front panel of your system.
Pin Assignment
1 +5V DC
2 +5V DC
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
10 NC
F_USB2: Internal Dual USB 2.0 Header
The connector connects to internal USB devices such as webcam, card reader
and touch panel.
Pin Assignment
1 +5V DC
2 +5V DC
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
10 Key
F_USB3: Internal Single USB 2.0 Header
The connector connects to internal USB devices such as webcam, card reader
and touch panel.
Pin Assignment
1 +5V DC
2 USB-
3 USB+
4 Ground
5 Key
Note: This USB port is shared with mini PCIe slot.
