Biostar J1800TH Версия 6.x [15/36] Atxpwr1 atx power source connector

J1800TH

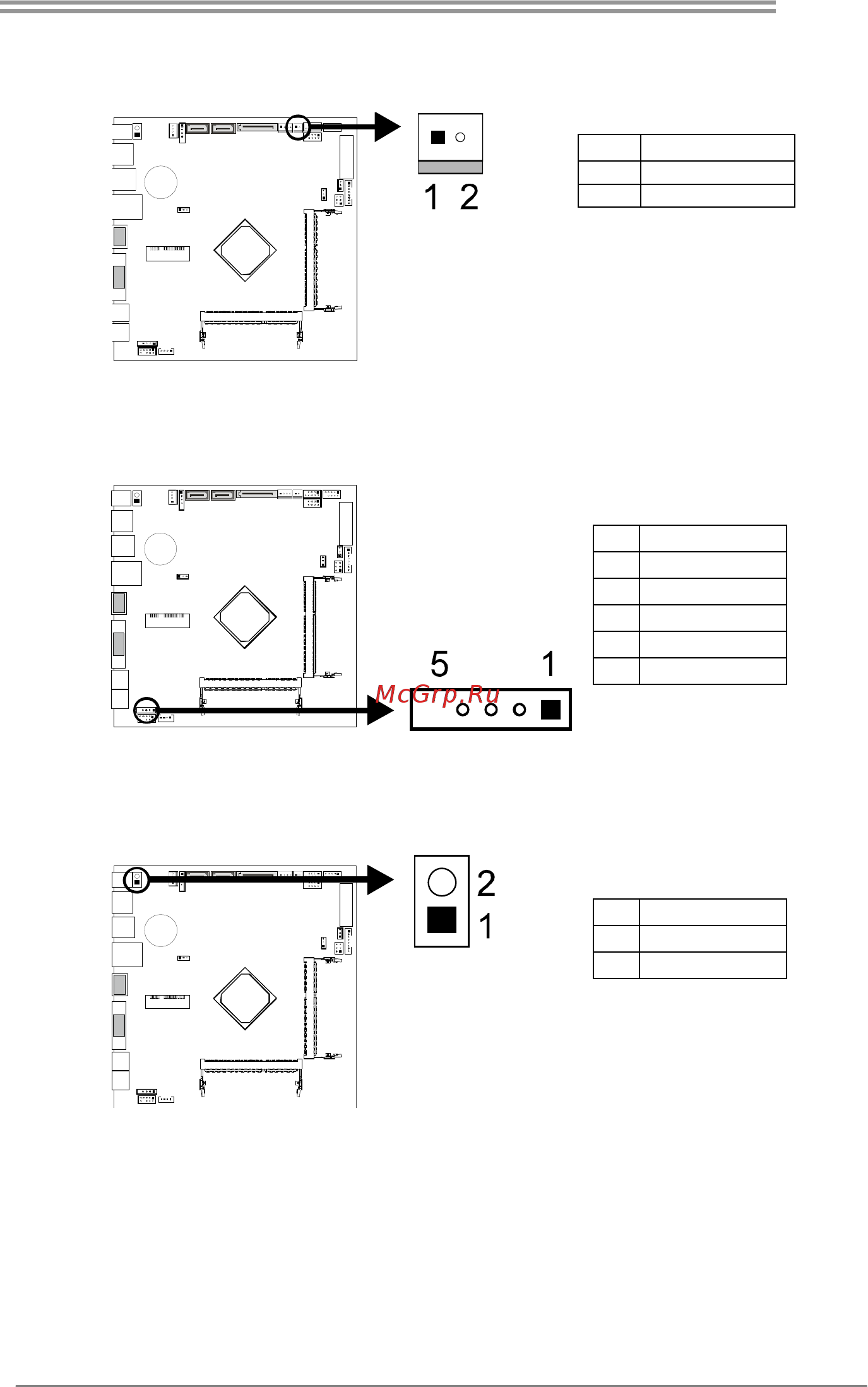

LCD_SW1: Monitor Switch

This header allows user to turn on or off the flat panel display backlight.

Pin Assignment

1MOMSW

2GND

JDMIC1: Digital Microphone Header

The connector is for connecting a digital microphone.

Pin Assignment

1 +3.3V

2 DMIC_DATA

3 Ground

4 DMIC_CLK

5Key

ATXPWR1: ATX Power Source Connector

The connector is for connecting a DC-19V power source.

Pin Assignment

1 +19V_IN

2 GND
