12
2. Hardware Description
The VC-201A / VC-204 provides 2 RJ-11 ports for voice
connection (like telephone) and for network line connection.
The VC-201A provide 1 RJ-45 ports and VC-204 provide 4 RJ-45
ports for two different running speed –10Mbps, 100Mbps, in the
same bridge and automatically distinguish the speed of incoming
connection.
This section describes the hardware features of the Ethernet
Over VDSL2 Converter. For easier control of the converter,
familiarize yourself with its display indicators, and ports. Front
panel illustrations in this chapter display the unit LED indicators.
Before connecting any network device to the converter, read this
chapter carefully.
2.1 Front Panel
The units’ front panel provides a simple interface monitoring the
Ethernet Over VDSL2 Converter.
n VC-201A Front Panel

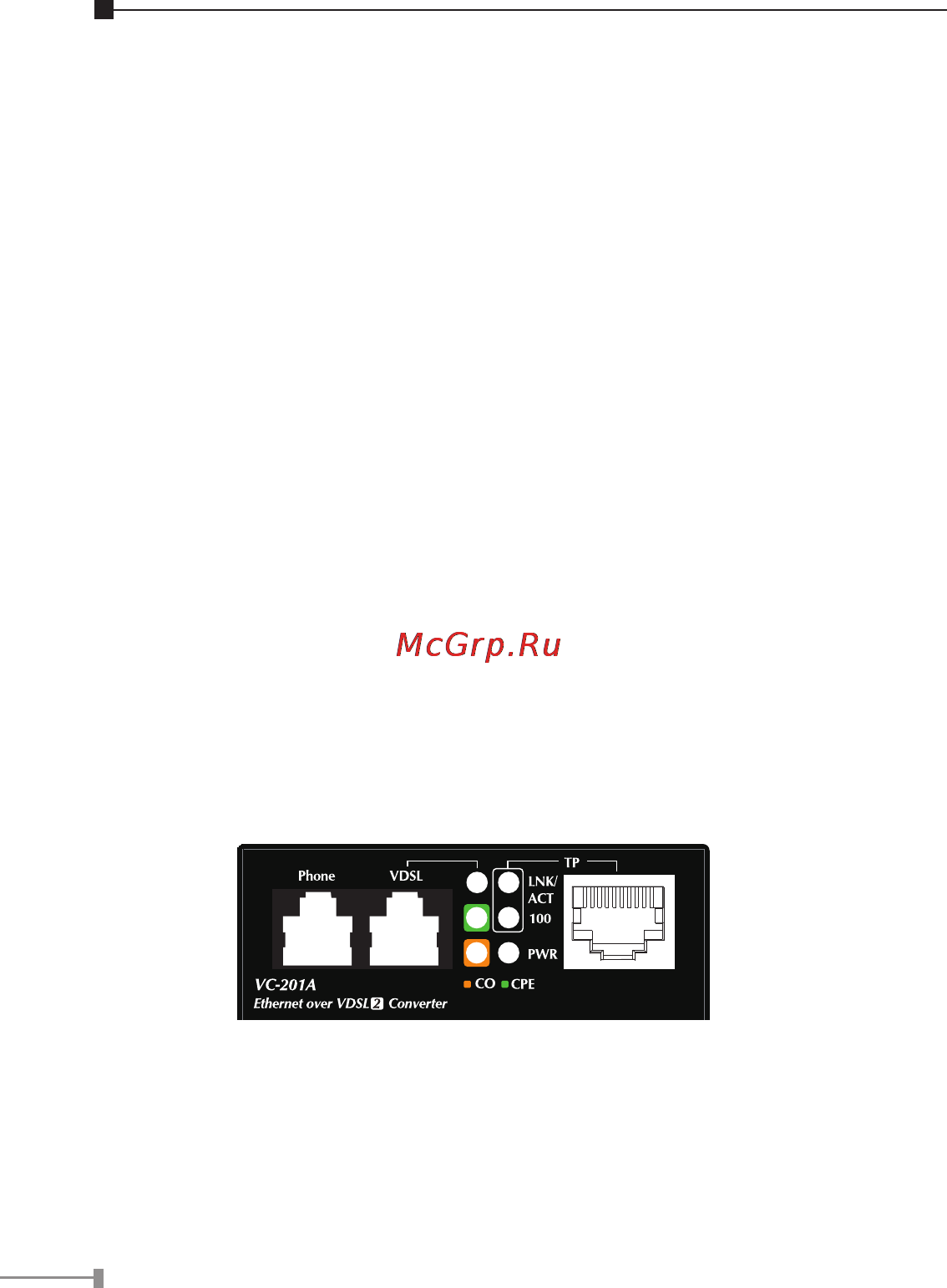

Figure 2-1: VC-201A front panel
