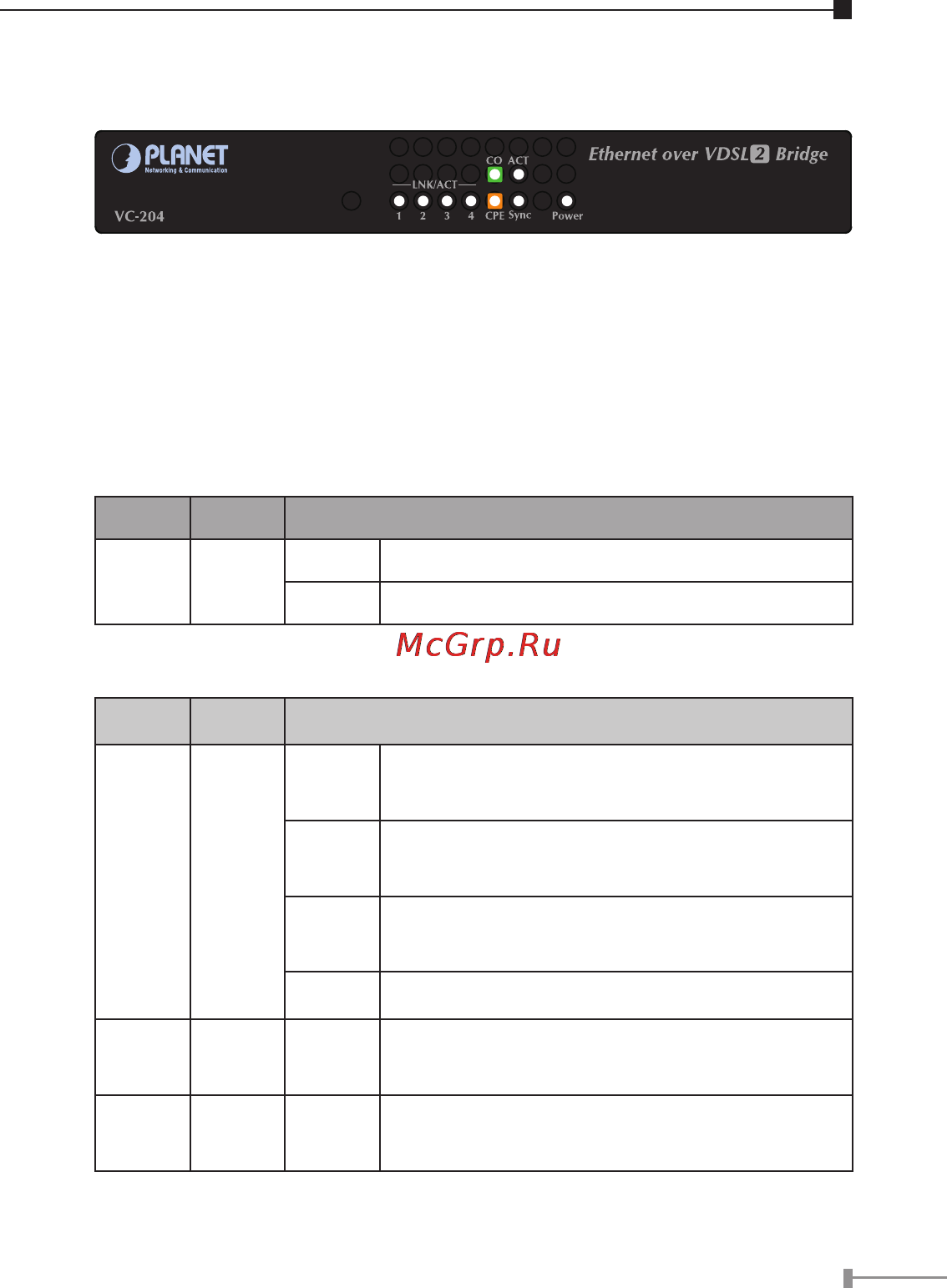

n VC-204 Front Panel

Figure 2-2: VC-204 front panel

2.1.1 LED indicators for VC-201A

The rich diagnostic LEDs on the front panel can provide the

operating status of individual port and whole system.

n System

LED Color Function

PWR Green

Lit Power ON

Off Power OFF

n VDSL

LED Color Function

LNK/

ACT

Green

Lit

Indicate that the VDSL link is

established.

Fast

Blink

Indicate that the VDSL link is at

training status(about 10 seconds).

Slow

Blink

Indicate that the VDSL link is at idle

status.

Off Indicate that the port is link down.

CO Green Lit

Indicate the VDSL Bridge is running at

CO mode.

CPE Green Lit

Indicate the VDSL Bridge is running at

CPE mode.
