6. Connect telephone to the PHONE port.

7. Connect Ethernet port to PC Network Interface Card (NIC) via

regular Cat. 5 cable.

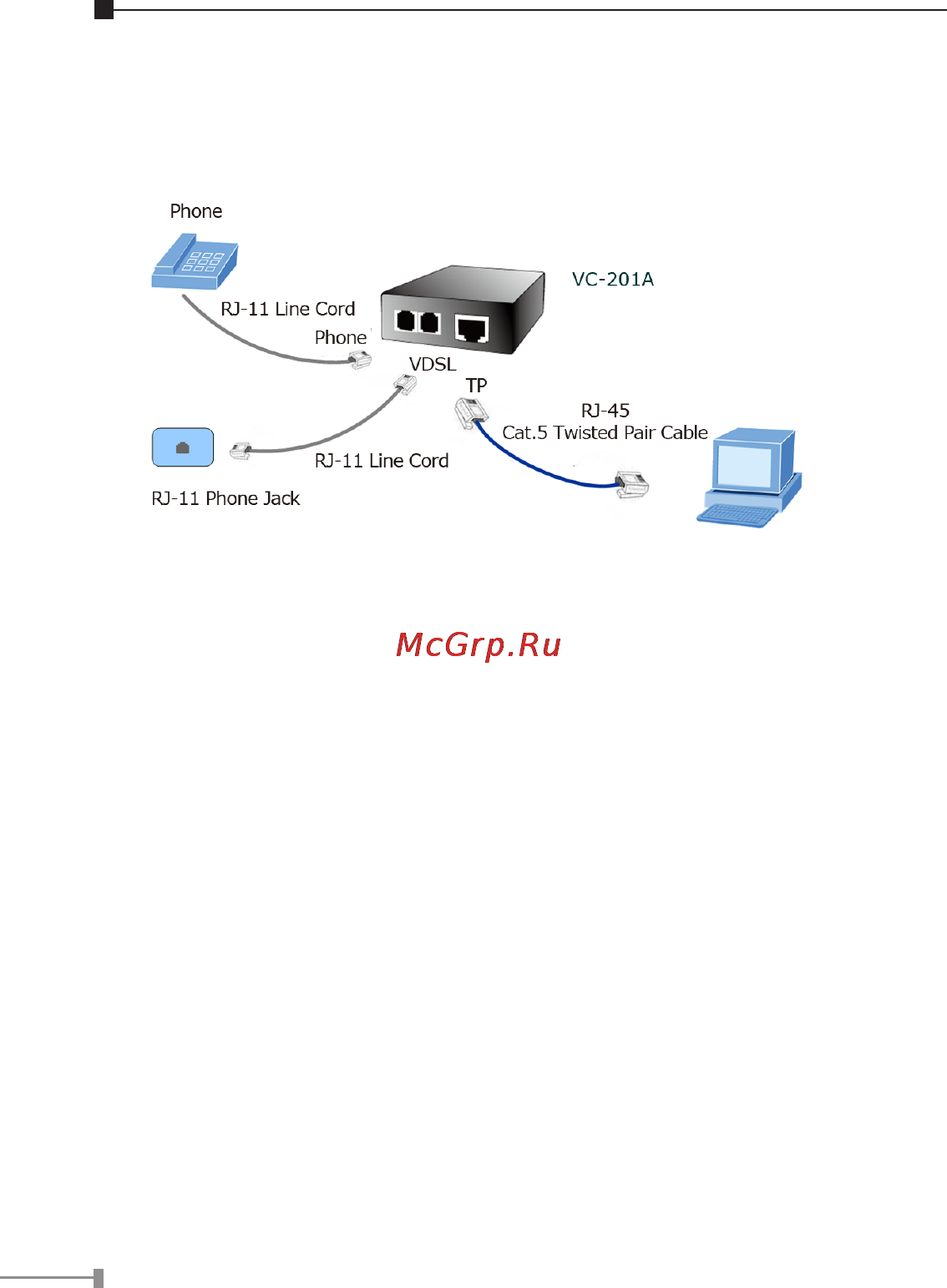

Figure 3-3: Connecting Standalone PC

3.2.2 Connecting Multiple PCs to an Ethernet LAN

Refer to the following procedures to setup the VC-201A / VC-

204 to an Ethernet LAN.

1. Set the VC-201A / VC-204 to be CO mode or CPE mode from

the DIP switch at the rear panel.

2. Power on the VC-201A / VC-204 by connecting its power

source.

3. Power LED will illuminate.

4. Connect VDSL line from another VDSL device to VDSL port of

the VC-201A / VC-204.

5. LNK LED will illuminate.

6. Connect telephone to the PHONE port.

7. VC-201A: Connect Ethernet port to Ethernet Switch (or Broad

band Router) via regular Cat. 5 cable.

VC-204: Connect per Ethernet port to each network device via

regular Cat 5. cable
