3.2 Managed Media Converter module through MC-1600MR/R48 & MC-1610MR/R48

ssis Cha

The Web Smart / Managed Media Converter Chassis that can control FST-81x through the management system, FST-81x

can be controlled through Web Browser and terminal emulation program.

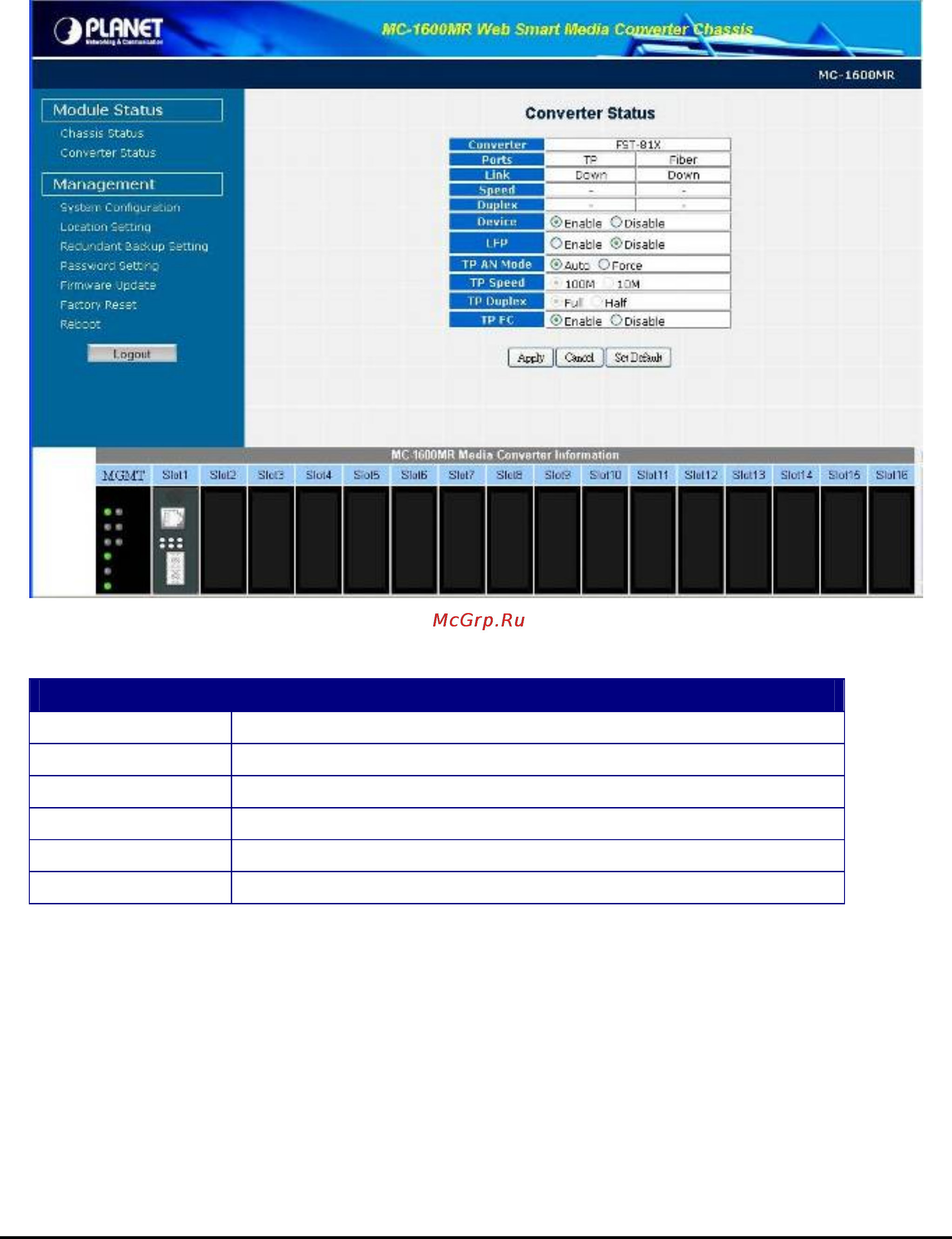

The Web Smart Media Converter Chassis-MC-1600MR/R48 will display out the status of FST-81x, also the Web Smart

Media Converter Chassis can control the function through the management system.

Through the Web Smart Media Converter Chassis System, you can control the setting of FST-81x, such as device (Disable

/ Enable), LFP (Disable / Enable). TP AN Mode (Auto-negotiation / Force), speed (10/100Mbps), duplex mode (Half / Full

duplex mode), Flow control (Disable / Enable).

Item Description

Device To enable or disable per FST-81x Converter board.

LFP To enable or disable the LFP function from FST-81x Converter board.

TP AN Mode To set the UTP port runs at Auto-negotiation or Forced Mode.

TP Speed To set the UTP port runs at 100Mbps or 10Mbps.

TP Duplex To set the UTP port runs at Full duplex or Half duplex mode.

TP FC To set the Flow Control of the UTP port to enable or disable.

#Notice:

Due to firmware structure and restriction of MC-1600MR/R48, the OAM / bandwidth control function not

provide in FST-81x setting Web page screen.
