Planet FST-812S35 [8/21] Led indicators
![Planet FST-812S35 [8/21] Led indicators](/views2/1071136/page8/bg8.png)

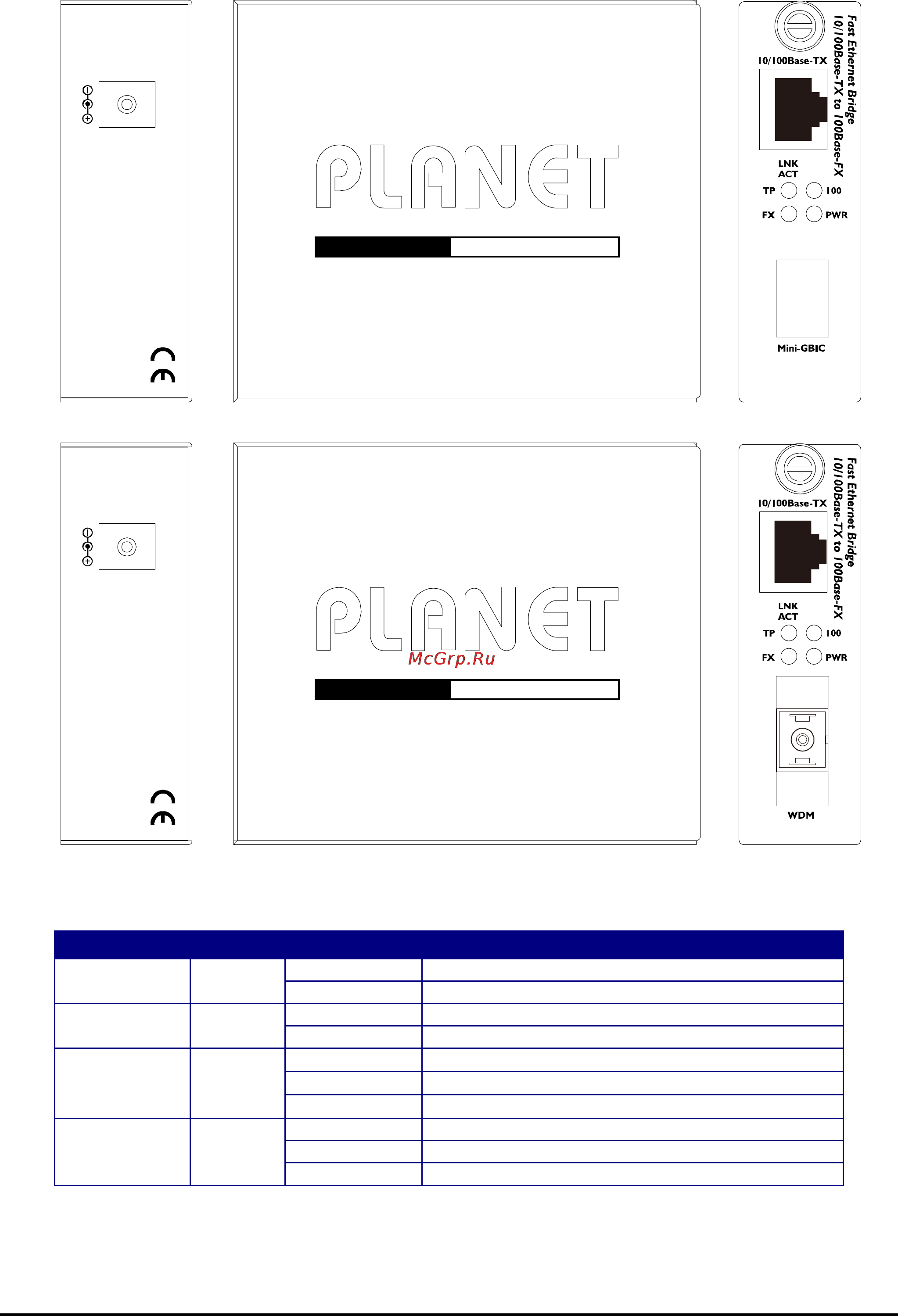

Figure 3: FST-815A Outlook
Figure 4: FST-816A20 / FST-816B20 Outlook
LED Indicators
LED Color Status Indication
Lights On Power on – when +5V DC detected. PWR(Power)
Green
Lights Off Power off.
Lights On The port is operating at 100Mbps. TP 100
Green
Lights Off The port is operating at 10Mbps.
Lights On The link through that port is successfully established.
Lights Off The link through that port is not established.
TP LINK/ACT
Green
Lights Blinking Data transmitting or receiving on that port.
Lights On The link through that port is successfully established.
Lights Off The link through that port is not established.
FX LINK/ACT
Green
Lights Blinking Data transmitting or receiving on that port.
Fast Ethernet Bridge
10/100Base-TX to 100Base-FX
5V DC
Fast Ethernet Bridge
10/100Base-TX to 100Base-FX
5V DC
8
