Chapter 4 PRODUCT OUTLOOK

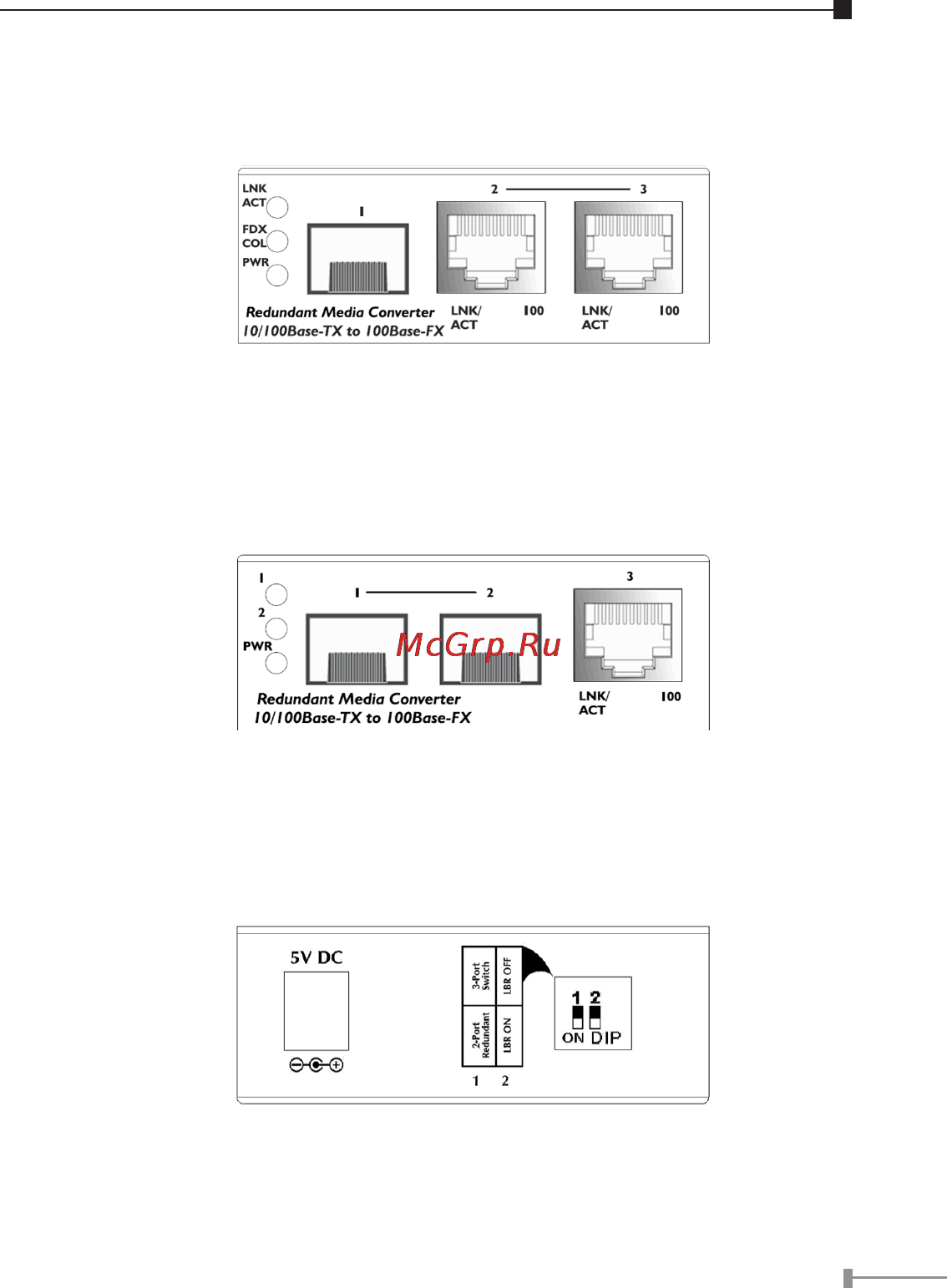

FT-1105A Front Panel
● Port-1 100Base SFP slot
● Port-2 TP connector (Primary Port)
● Port-3 TP connector (Backup Port)
FT-1205A Front Panel
● Port-1 100Base SFP slot (Primary Port)
● Port-2 100Base SFP slot (Backup Port)
● Port-3 TP connector
FT-1105A / FT-1205A Rear Panel
One DC jack for DC power input and DIP switch to set 3-Port
switch mode / 2-Port Redundant and Loop back reply Enable/
Disable function.
