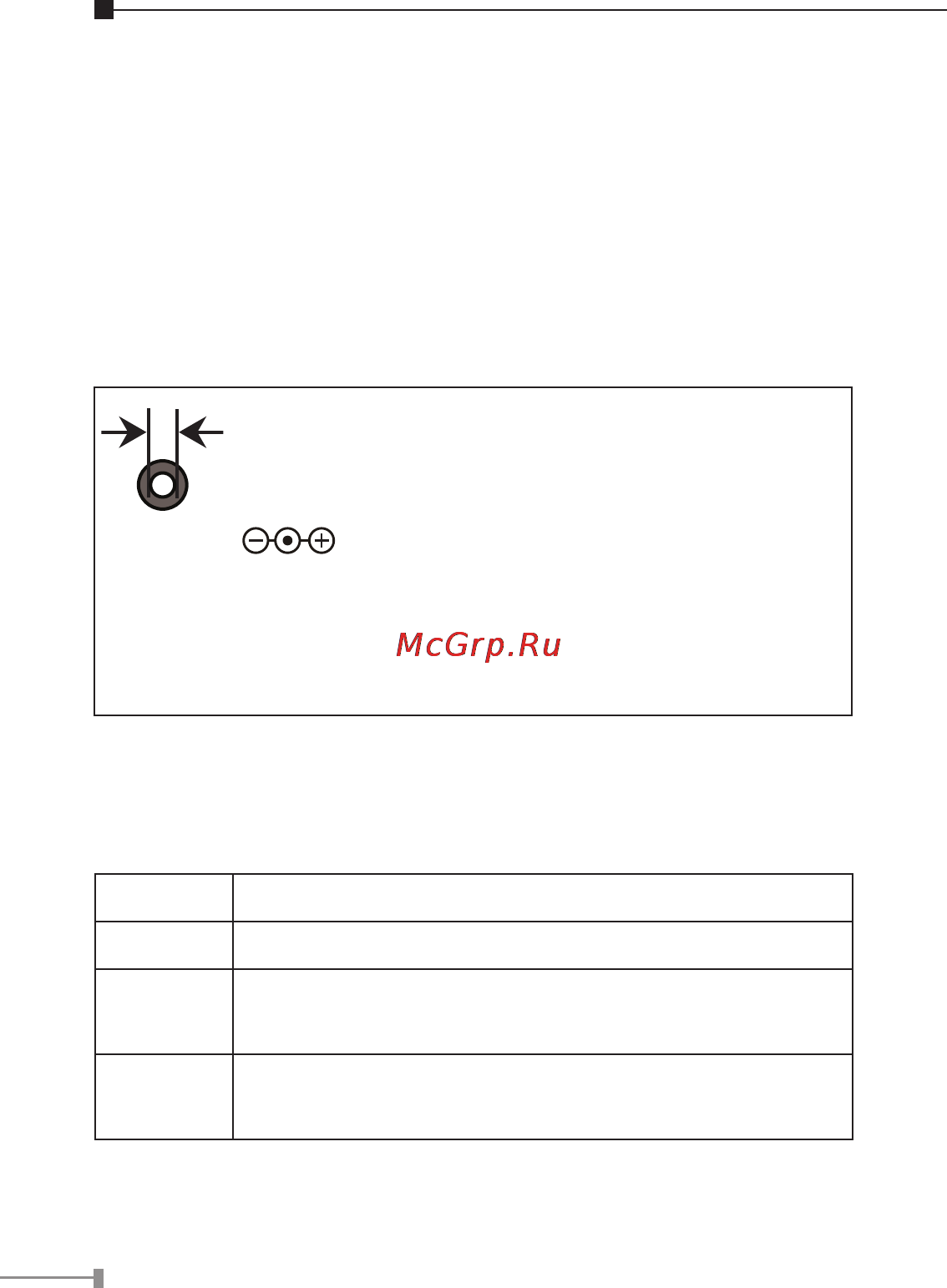

A.4 Power Information
The power jack of FT-1105A / FT-1205A is with 2.5mm in the
central post and required +5VDC power input. It will conform to
the bundled AC-DC adapter and Planet’s Media Chassis. Should
you have the problem to make the power connection, please
contact your local sales representative.
Please keep the AC-DC adapter as spare parts
when your
FT-1105A / FT-1205A is install in to a Media Chassis.
2.5mm
DC Receptacle 2.5mm
+5V for each slot
DC receptacle is 2.5mm wide that conforms to and
matches the Media Converter 2.5mm DC jack’s central
post. Do not install any improper unit, model of the
Media Converter
A.5 Available Modules
The following list the available Modules for FT-1105A / FT-1205A
MFB-FX SFP-Port 100Base-FX Transceiver (1310nm) -2km
MFB-F20 SFP-Port 100Base-FX Transceiver (1310nm) –20km
MFB-FA20
SFP-Port 100Base-BX Transceiver
(WDM, TX: 1310nm) -20km
MFB-FB20
SFP-Port 100Base-BX Transceiver
(WDM, TX: 1550nm) -20km
