Chapter 3 Web Configuration
Web configuration provides a user-friendly graphical user interface (web pages) to manage your
WAP-4033. An AP with an assigned IP address (e.g. http://192.168.0.1) will allow you to monitor and
configure (via web browser e.g., MS Internet Explorer or Netscape).
1. Open your web browser.
2. Enter WAP-4033 IP address (default IP address is http://192.168.0.1) into the address field of the web
browser. Please also make sure your PC’s IP address is in the same IP range with WAP-4033.

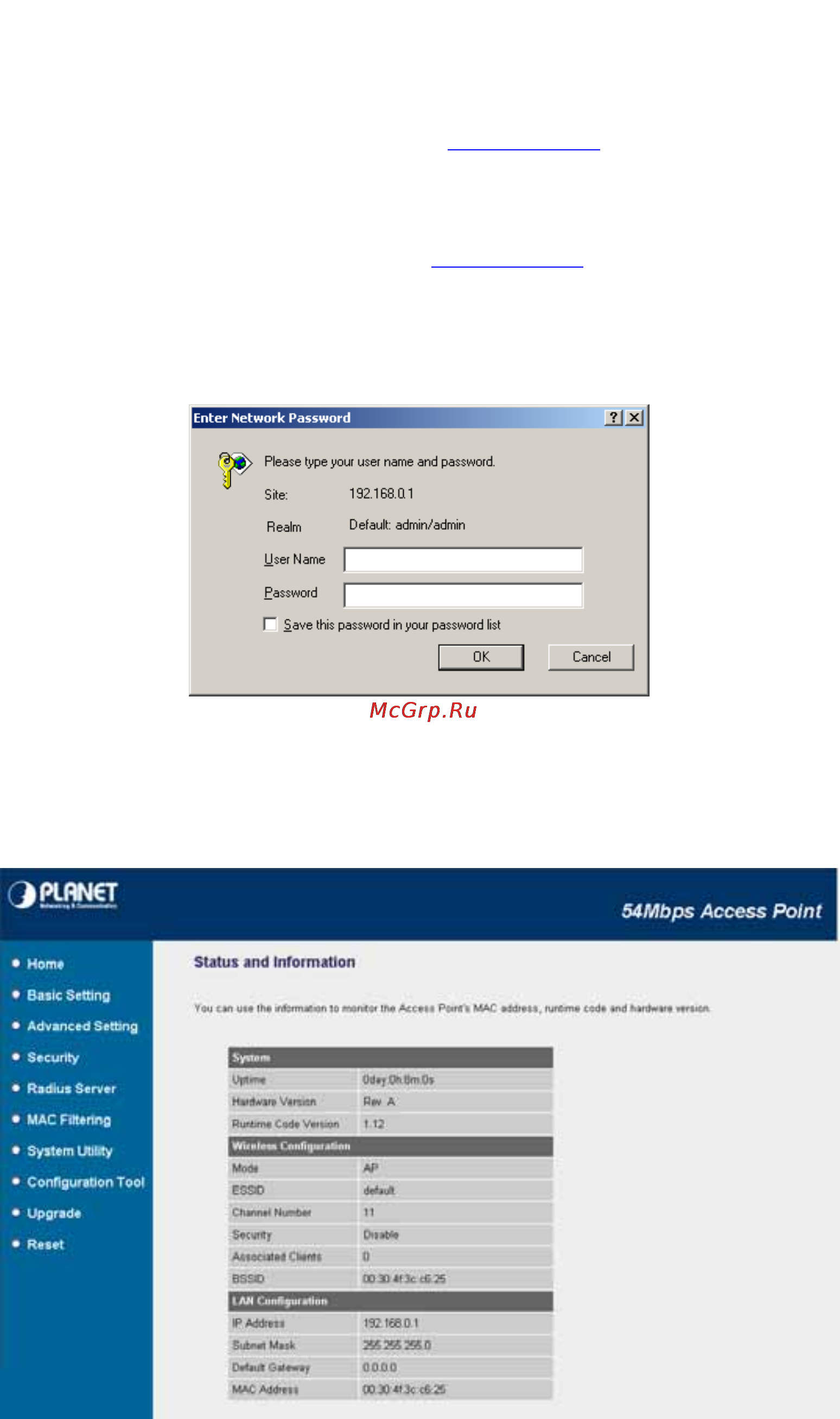

3. A User Name and Password dialog box will appear. Please enter your User Name and Password here.
Default User Name and Password are both “admin”. Click “OK” to access the management page.
3.1 Home
In this screen, you can check all the information of WAP-4033.
11
