K8T80-A7

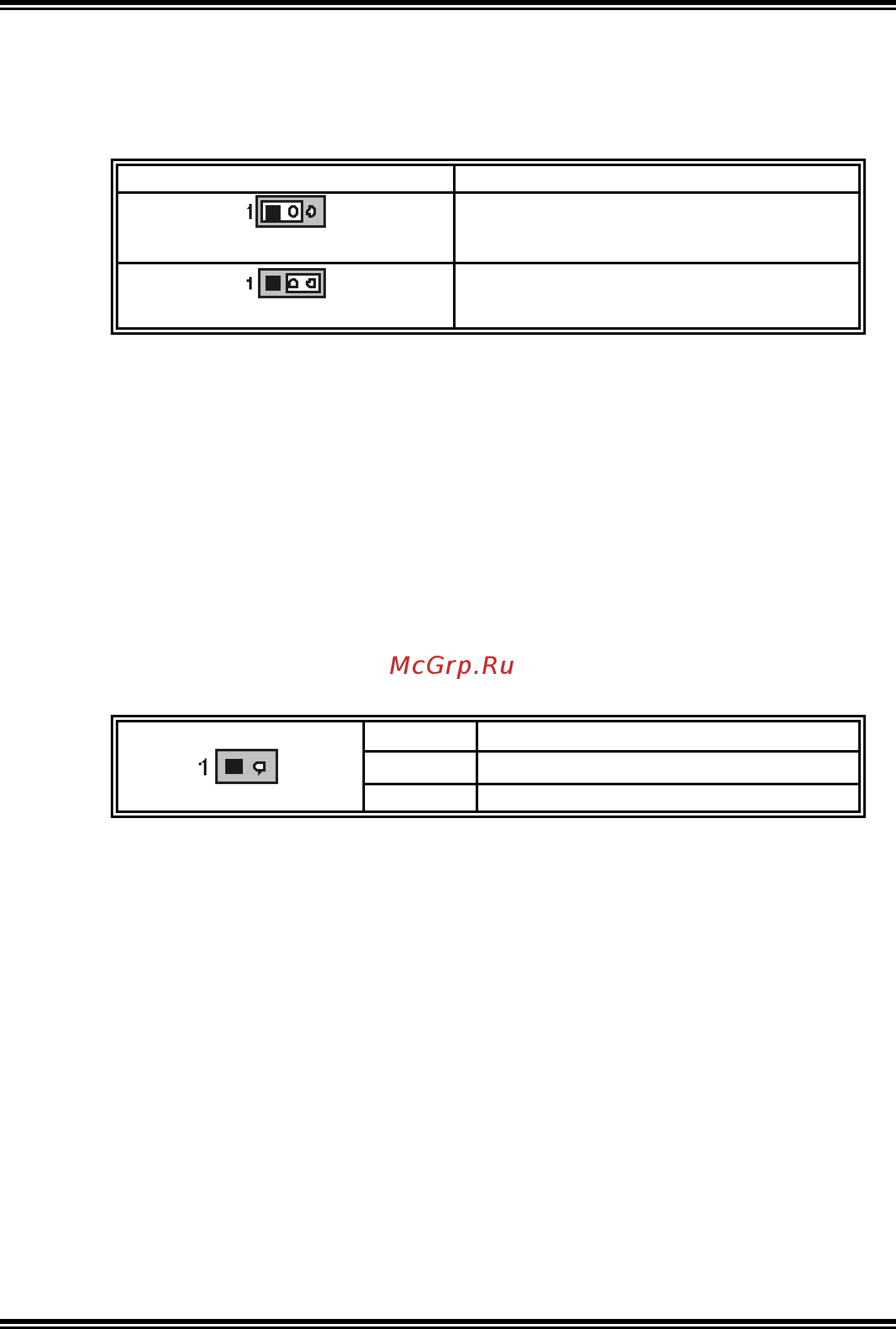

JCMOS1: Clear CMOS Header

By placing the jumper on pin2-3, it allows user to restore the BIOS safe

setting and the CMOS data, please carefully follow the procedures to

avoid damaging the motherboard.

JCMOS1 Assignment

Pin 1-2 close

Normal Operation (Def ault).

Pin 2-3 close

Clear CMOS data.

※ Clear CMOS Procedures:

1. Remove AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wa i t for fi ve seconds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Reset your desired password or clear the CMOS data.

JCI1: Chassis Open Header

This connector allows system to monitor PC case open status. If the

signal has been triggered, it will record to the CMOS and show the

message on next boot-up.

Pin Assignment

Case open signal

Ground
