K8T80-A7
5

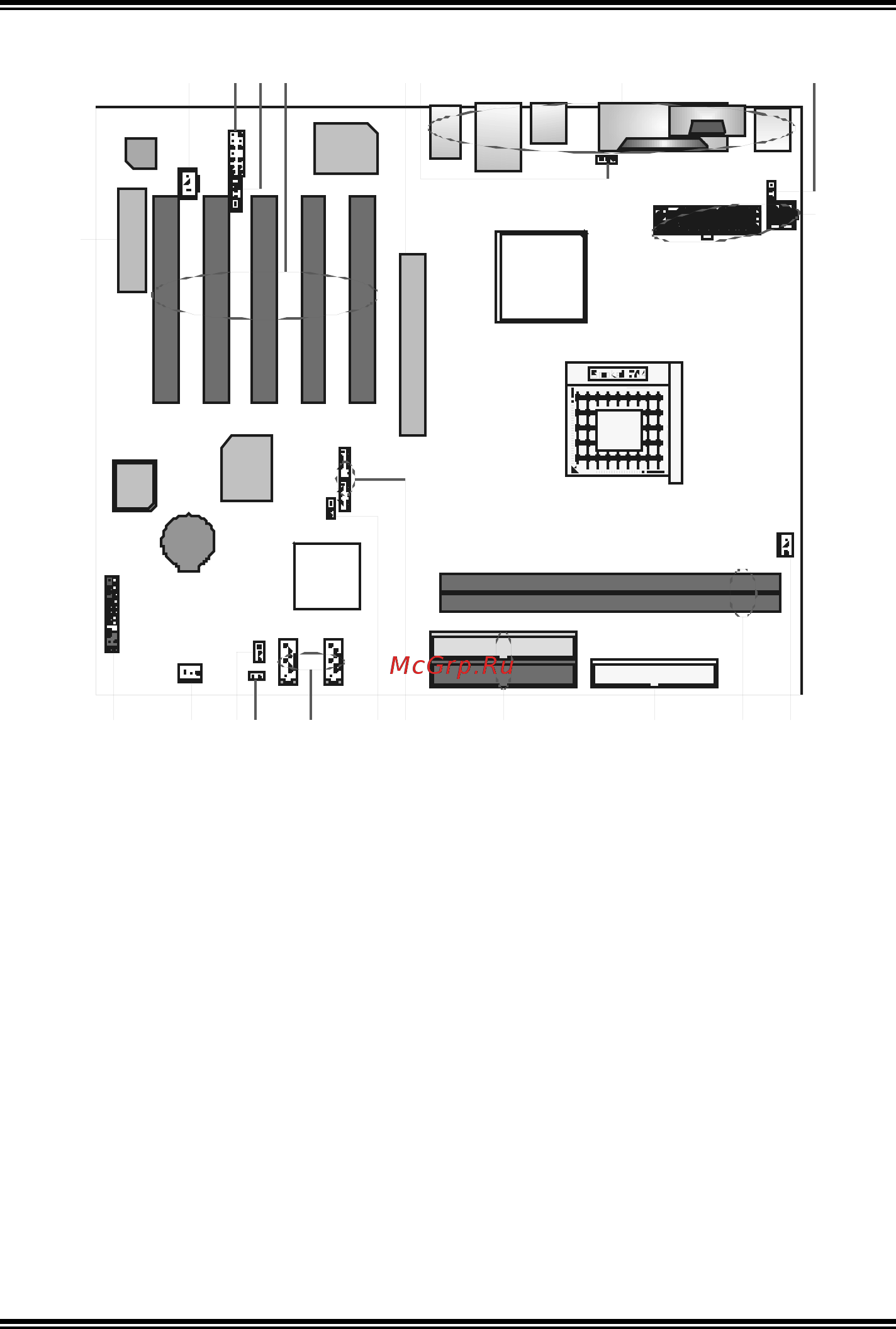

1.4 COMPONENTS
CPU1
BIOS
BAT1
K8T800 Pro
VT8237R
Codec
LA N
S uper I/O
A
BCDEFG
HI
J
KLMNOPQ R S TU
A.
JATXPWR1/JATXPWR2: ATX power
source headers.
L.
JSFAN1: System f an power source
header.
B.
JKBV1: Power source header for
JKBMS1.
M.
JCMOS1: Clear CMOS header.
C.
Rear side connectors (back panel).
N.
JCI1: Chassis open header.
D.
JUSBV1: Power source header f or
USB ports at back panel.
O.
JSATA1/JSATA2: Serial ATA dev ice
connectors.
E.
AGP1: Accelerated Graphics Port slot.
P.
JUSBV2: Power source header f or
front panel USB ports.
F.
PCI1~PCI5: Peripheral Component
Interconnect slots.
Q.
JUSB3/JUSB4: Front panel USB ports
headers.
G.
JCDIN1: CD-ROM audio-in connector.
R.
IDE1/IDE2: Hard disk connectors.
H.
JAUDIO1: Front panel audio-out
header.
S.
FDD1: Floppy disk connector.
I.
JSPDIF_OUT1: Digital audio-out
connector.
T.
DIMM1/DIMM2: DDR memory
modules.
J.
CNR1: Communication Network Riser
slot.
U.
JCFAN1: CPU fan power source
header.
K.
JPANEL1: Front panel facilities header.
