K8T80-A7 BIOS Setup
29

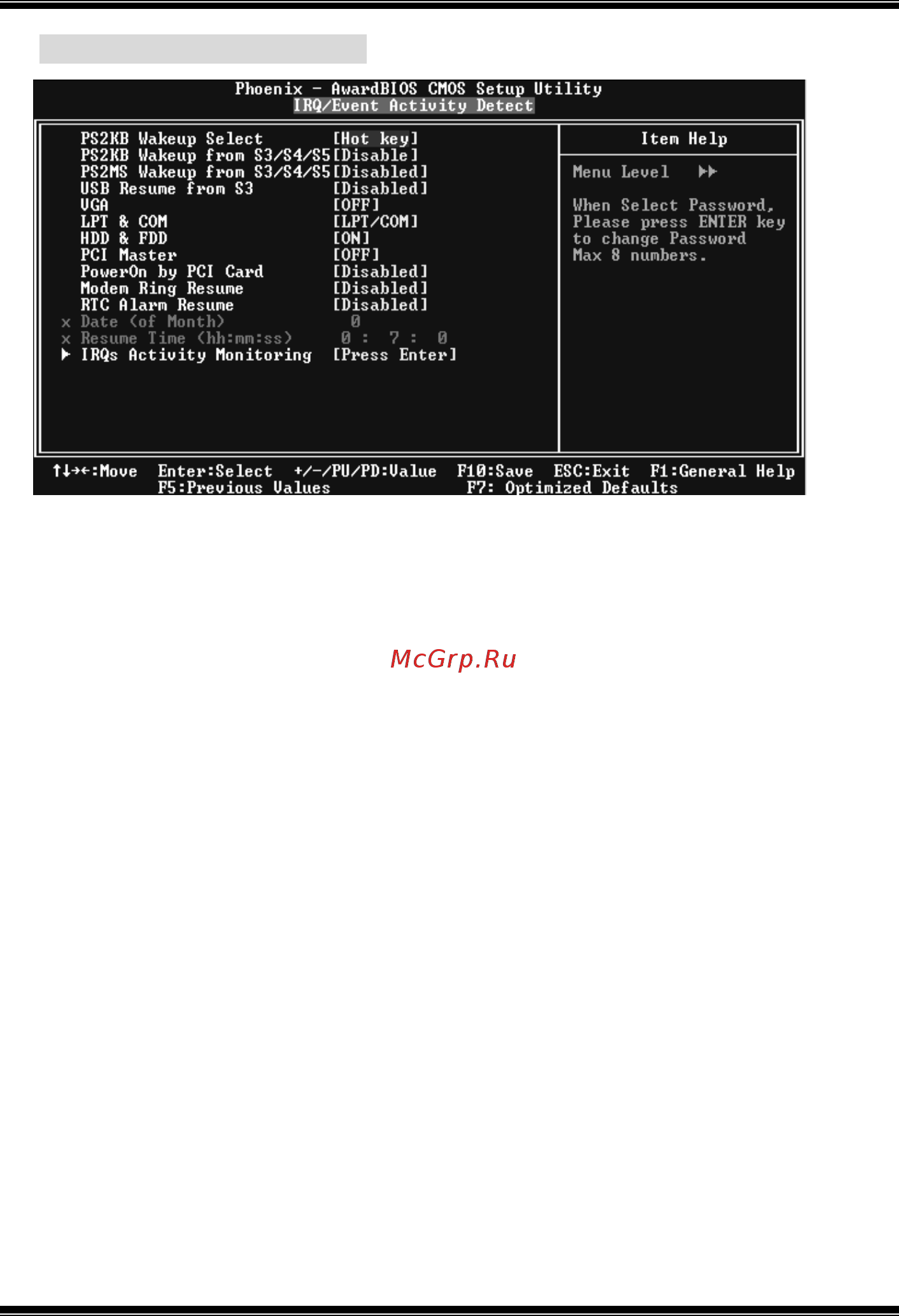

6.12 IRQ/Event Activity Detect
If you highlight the literal “Press Enter” next to the “IRQ/Event ActivityDetect” label and then
press the enter key, it will take you a submenu withthe following options:
6.12.1 PS2KB Wakeup Select
When select Password, please press Enter key to change password
with a maximum of 8 characters.
The Choices: Hot Key (default).
6.12.2 PS2KB Wakeup from S3/ S4/ S5
This item allows you to wake up from S3/ S4/ S5 with PS2 keyboard.
The Choices: Disabled (default), Ctrl+F1, Ctrl+F2. Ctrl+F3, Ctrl+F4,
Ctrl+F5, Ctrl+F6, Ctrl+F7, Ctrl+F8, Ctrl+F9, Ctrl+F10, Ctrl+F11,
Ctrl+F12, P ower, Wake, Any Key.
6.12.3 PS2MS Wakeup from S3/ S4/ S5
This item allows you to wake up from S3/ S4/ S5 with PS2 keyboard.
The Choices: Disabled (default), Ctrl+F1, Ctrl+F2. Ctrl+F3, Ctrl+F4,
Ctrl+F5, Ctrl+F6, Ctrl+F7, Ctrl+F8, Ctrl+F9, Ctrl+F10, Ctrl+F11,
Ctrl+F12, P ower, Wake, Any Key.
6.12.4 USB Resume from S3
This item allows you to enable or disabled USB resume from S3.
The Choices: Disabled (Default), Enabled.
6.12.5 VGA
When set to On, any event occurring at a VGA Port will awaken a
system which has been powered down.
The Choices: Off (default), On.
