K8T80-A7

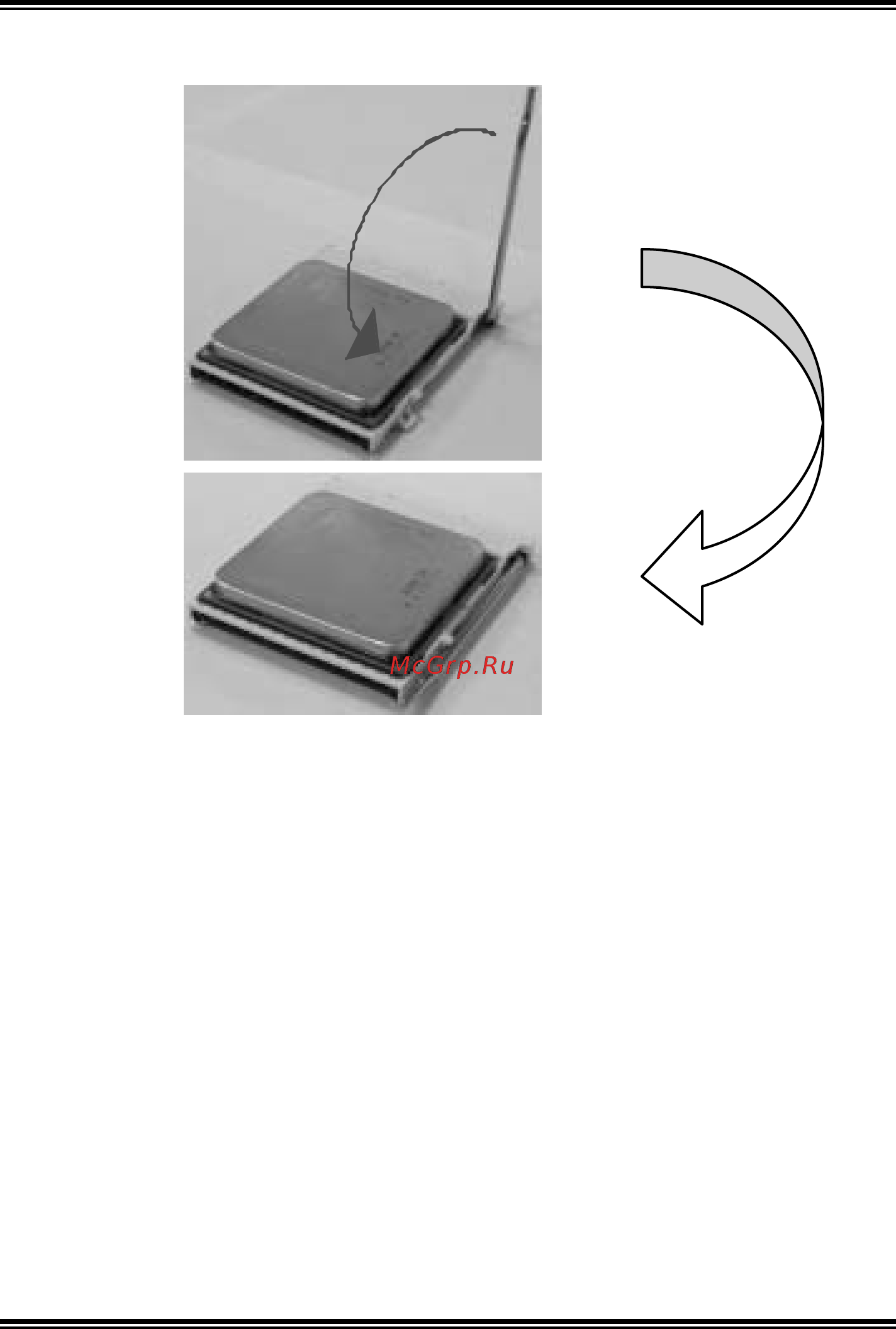

Step 3: Hold the CPU down firmly, and then close the lever to complete

the installation.

Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power cable to the JCFAN1. This completes the

installation.
