K8T80-A7 BIOS Setup

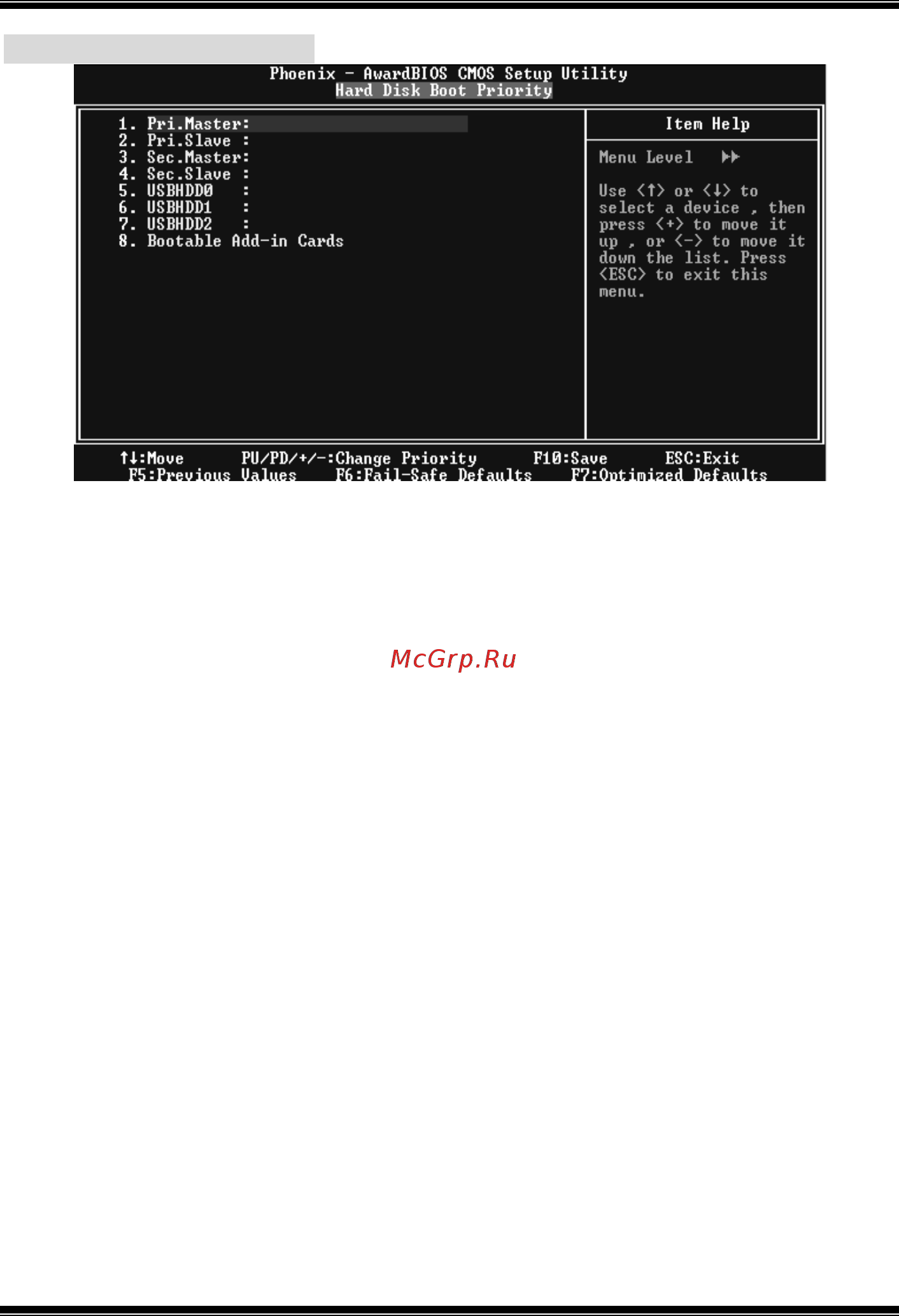

3.1 Hard Disk Boot Priority

These BIOS attempt to load the operating system from the device in the sequence selected in

these items.

The Choices:

Pri. Master, Pri.Slave, Sec.Master, Sec. Slave, USBHDD0, USBHDD1, USBHDD2 and

Bootable Add-in Carde.
