GeForce 6100-M7

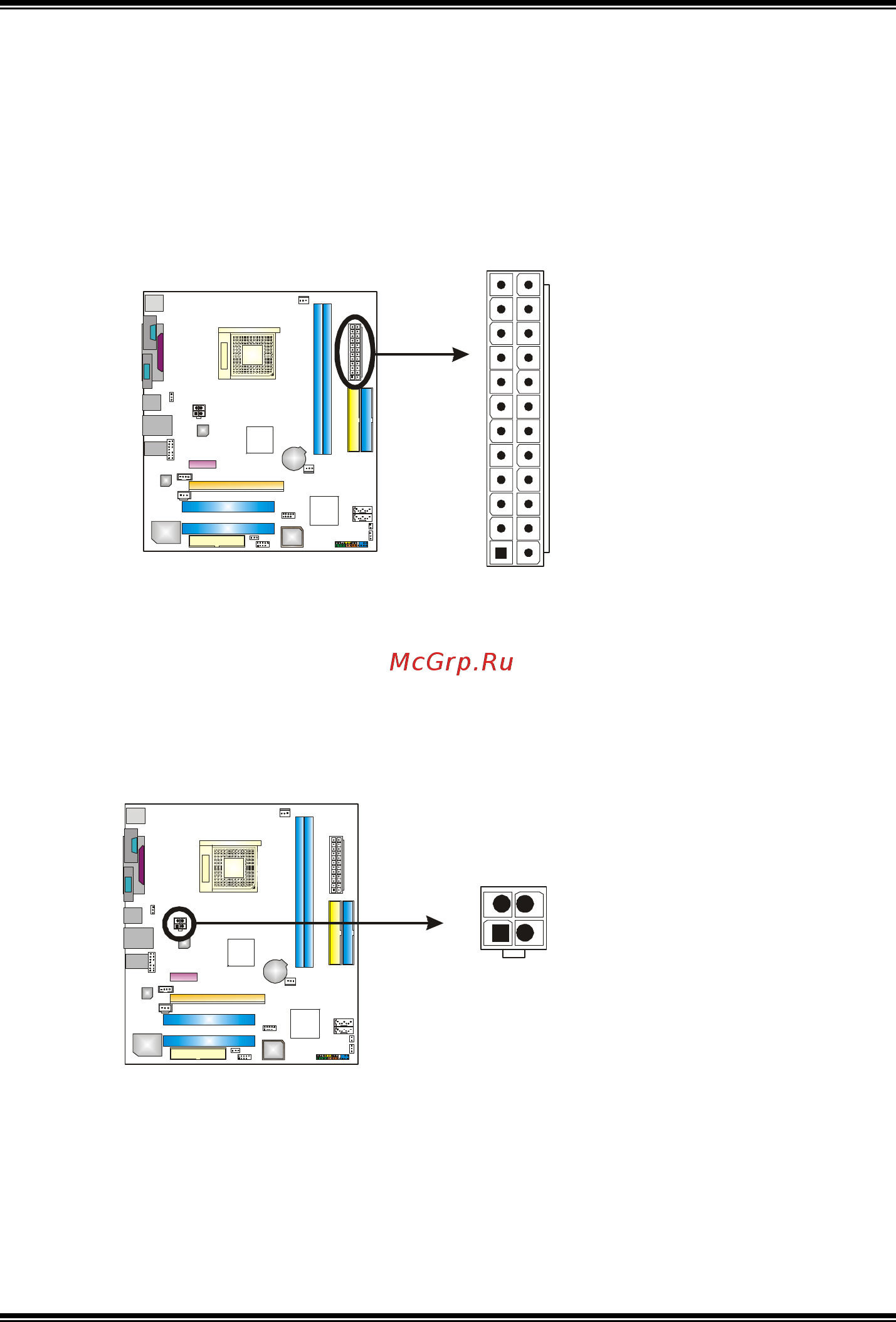

JATXPWR1: ATX Power Source Connector

This connector allows user to connect 24-pin power connector on the ATX

power supply.

Pin Assignment

1 +3.3V

2 +3.3V

3 Ground

4 +5V

5 Ground

6 +5V

7 Ground

8 PW_OK

9 Standby Voltage

+5V

10 +12V

11 +12V

12 +3.3V

13 +3.3V

14 -12V

15 Ground

16 PS_ON

17 Ground

18 Ground

19 Ground

20 -5V

21 +5V

22 +5V

23 +5V

12 24

113

24 Ground

JATXPWR2: ATX Power Source Connector

By connecting this connector, it will provide +12V to CPU power circuit.

Assignment

1 +12V

2 +12V

3 Ground

4 Ground
