GeForce 6100-M7

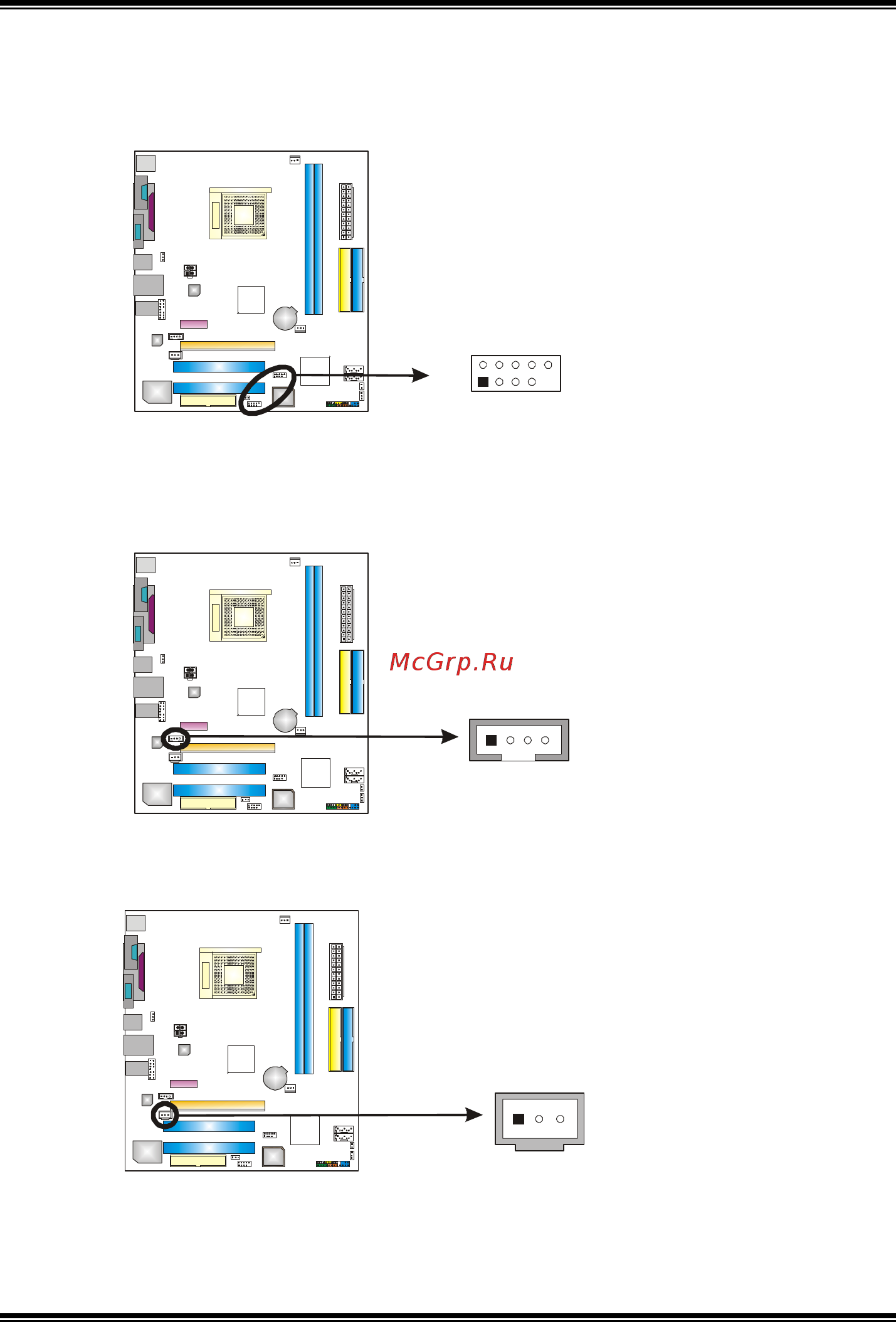

JUSB2/JUSB3: Headers for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC front panel,

and also can be connected with internal USB devices, like USB card reader.

Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

JUSB3

JUSB2

10 NC

JCDIN1: CD-ROM Audio-in Connector

This connector allows user to connect the audio source from the variaty devices,

like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..

Assignment

1 Left Channel Input

2 Ground

3 Ground

4 Right Channel Input

JSPDIF_OUT1: Digital Audio-out Connector

This connector allows user to connect the PCI bracket SPDIF output header.

Assignment

1 +5V

2 SPDIF_OUT

3 Ground
