GeForce 6100-M7
14
4 Advanced Chipset Features
This submenu allows you to configure the specific features of the chipset installed on your
system. This chipset manage bus speeds and access to system memory resources, such as
DRAM. It also coordinates communications with the PCI bus. The default settings that came
with your system have been optimized and therefore should not be changed unless you are
suspicious that the settings have been changed incorrectly.

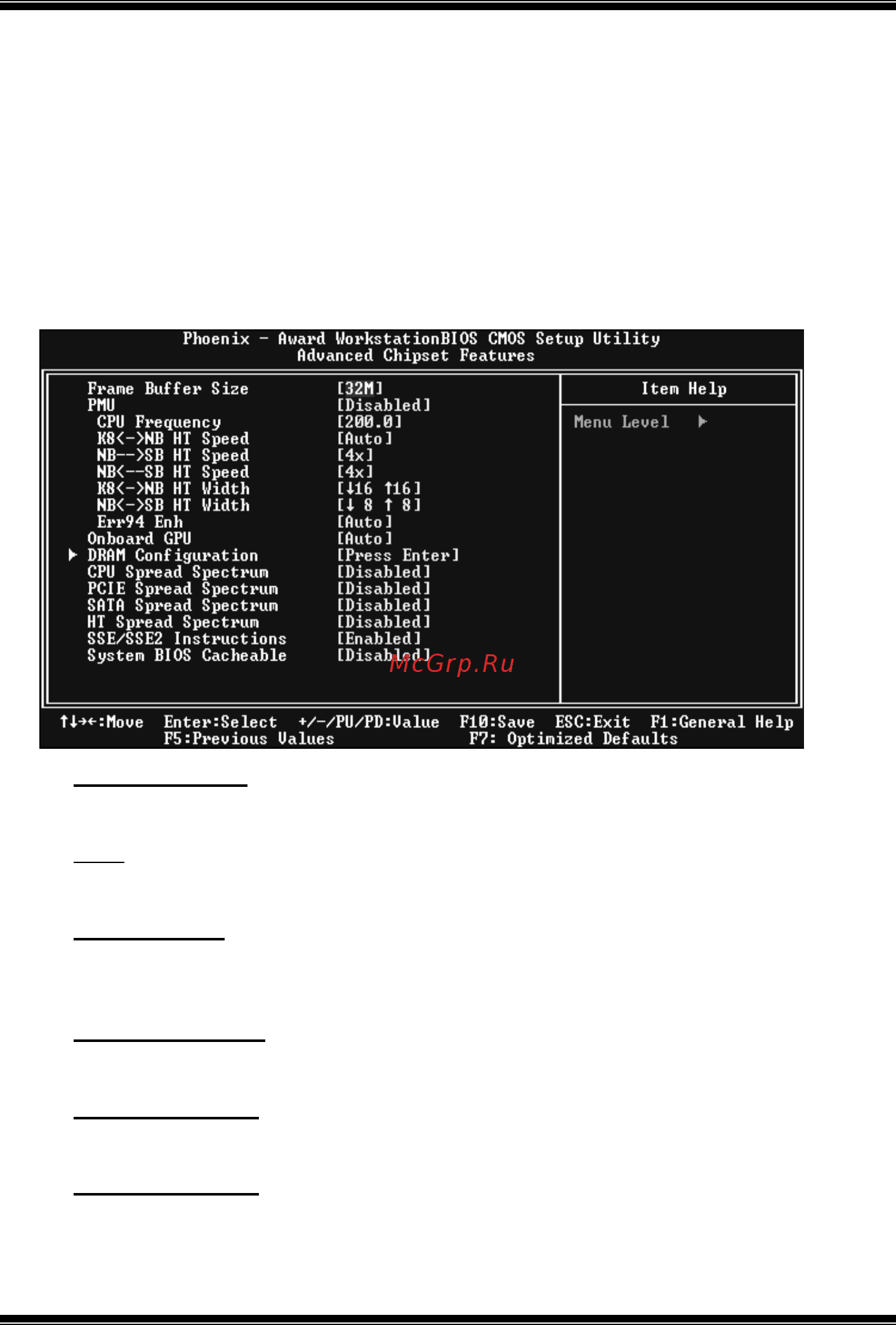

Fig ure 4. Adva nced Chipse t Setup
Frame Buffer Size
The Choices: 32M (default), 16M, 64M, 128M, Disabled.
PMU
The Choices: Disabled (default), Enabled.
CPU Frequency
This item allows you to select the CPU Frequency.
The Choices: 200.0 (default).
K8<->NB HT Speed
The Choices: Auto (default).1X, 2X, 3X, 4X, 5X.
NB-->SB HT Speed
The Choices: 4X (default).1X, 2X, 3X, 5X.
NB<--SB HT Speed
The Choices: 4X (default).1X, 2X, 3X, 5X.
