GeForce 6100-M7
15
K8<->NB HT Width
The Choices:↓16 ↑16 (default), ↓ 8 ↑ 8.
NB<->SB HT Width
The Choices: ↓8 ↑8 (default), ↓ 16 ↑ 16.
Err94 Enh
This item allows you to enable/disab le the “sequentia l Prufetch Feature” of K8 CP U.
The Cho ices: Auto (default), Disable.
Onboard GPU
The Choices: Auto (default), Always Enable.

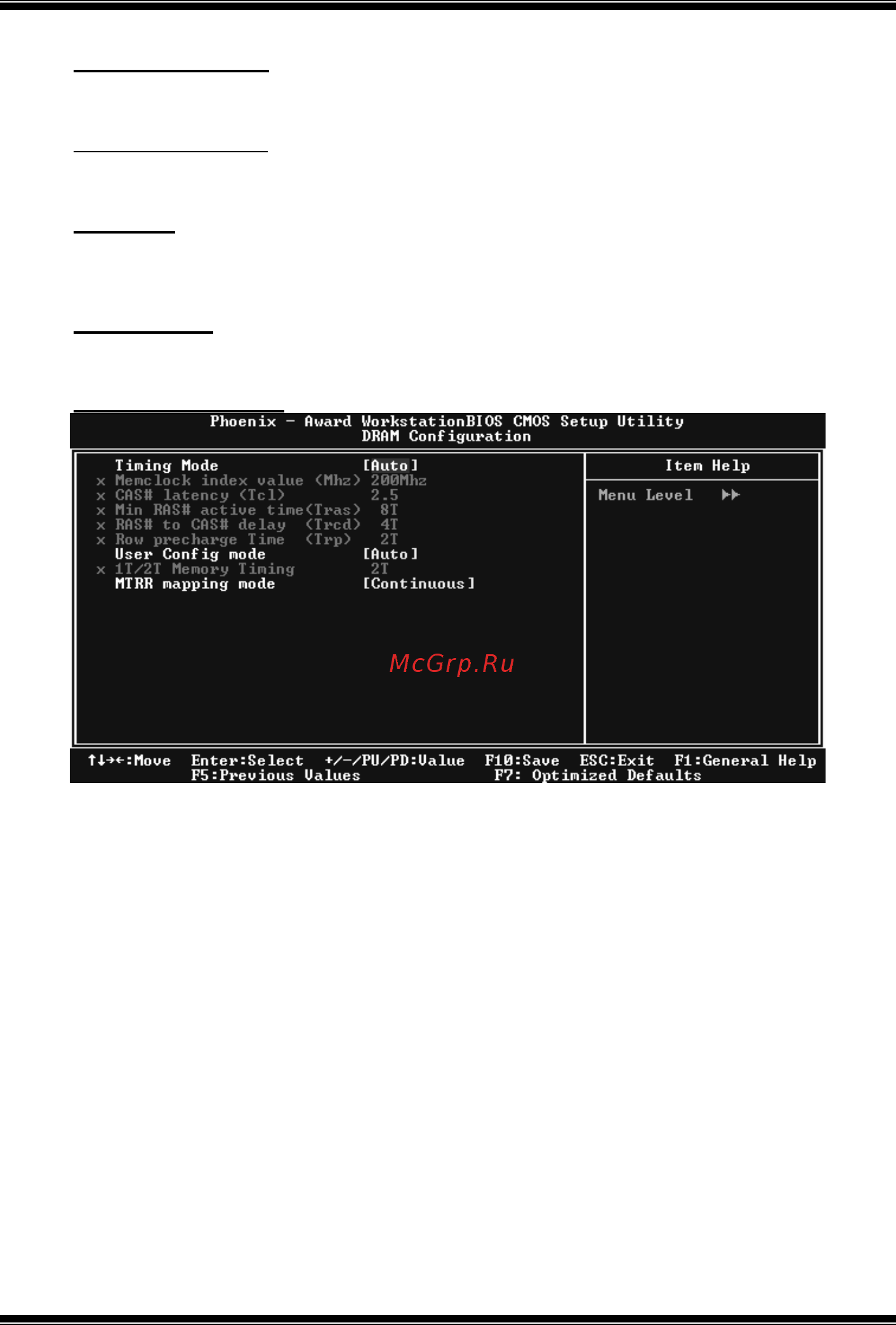

DRAM Configuration
Tim i ng Mo de
The Choices: Auto (default), Manual.
Memclock index value<MHz>
The Choices: 200MHz (default).
CAS# Latency
This field specify the cas# latency, i.e. cas# to read data valid.
The Choices: CL=2.5 (default), CL=3.0, CL=2.0
Min RAS# active time (tRAS)
This field specifies the minimum RAS# active time. Typically -45-60 Nsec.
The Choices: 8T (default).
RAS# to CAS# Delay (tRCD)
This field specifies the RAS# to CAS# Delay to read/ write command to the same
bank. Typically -20 Nsec.
The Choices: 4T (default).
