Biostar GeForce 6100-M7 [7/61] Chapter 2 hardware installation

GeForce 6100-M7

CHAPTER 2: HARDWARE INSTALLATION

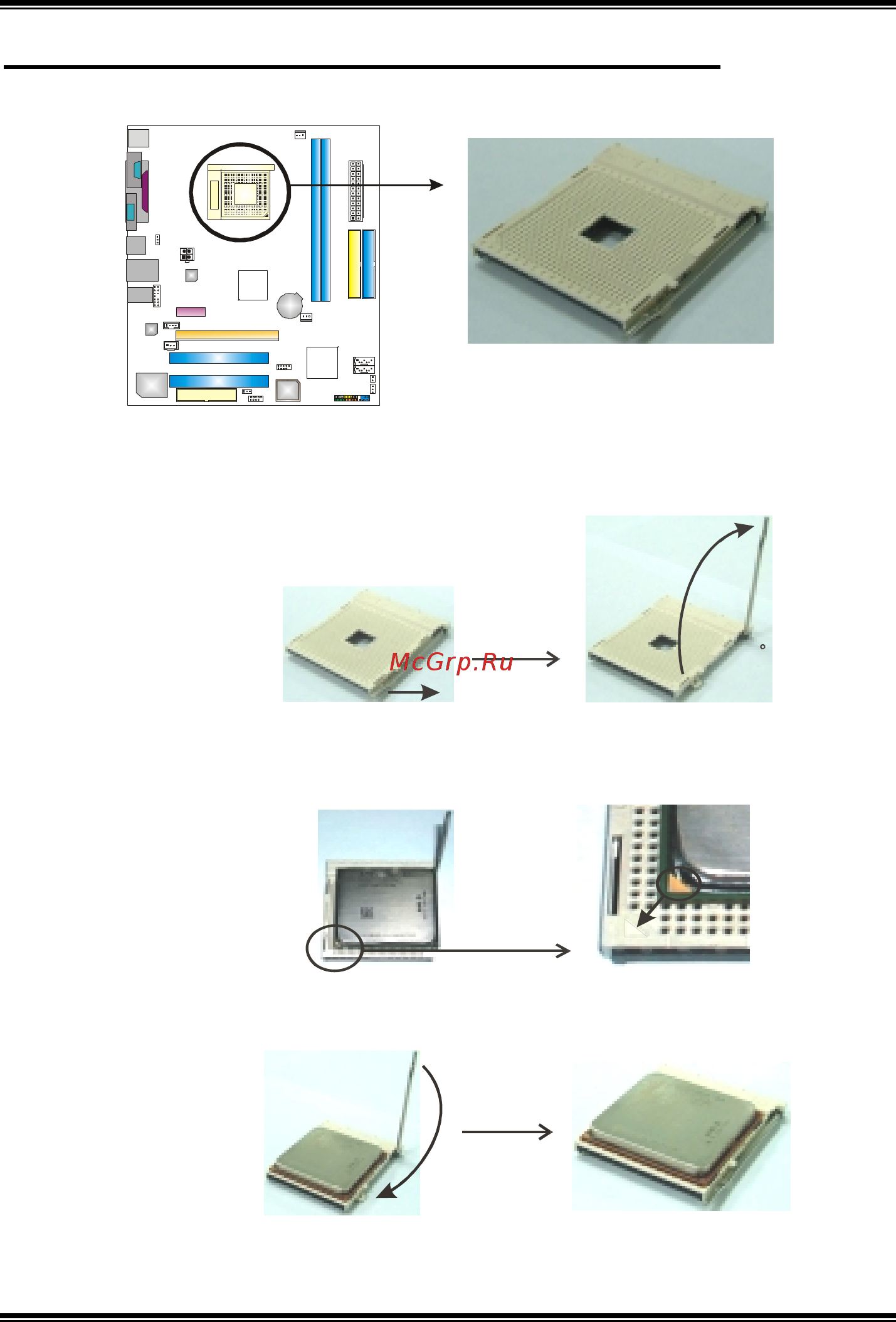

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)

Step 1: Pull the lever toward direction A from the socket and then raise the

lever up to a 90-degree angle.

Step 2: Look for the black triangle on socket, and the white triangle on

CPU should point forwards this black triangle. The CPU will fit

only in the correct orientation.

Step 3: Hold the CPU down firmly, and then close the lever to complete

the installation.

Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU

FAN power cable to the JCFAN1. This completes the installation.
