Biostar GeForce 6100-M7 [49/61] Geforce 6100 m7

GeForce 6100-M7

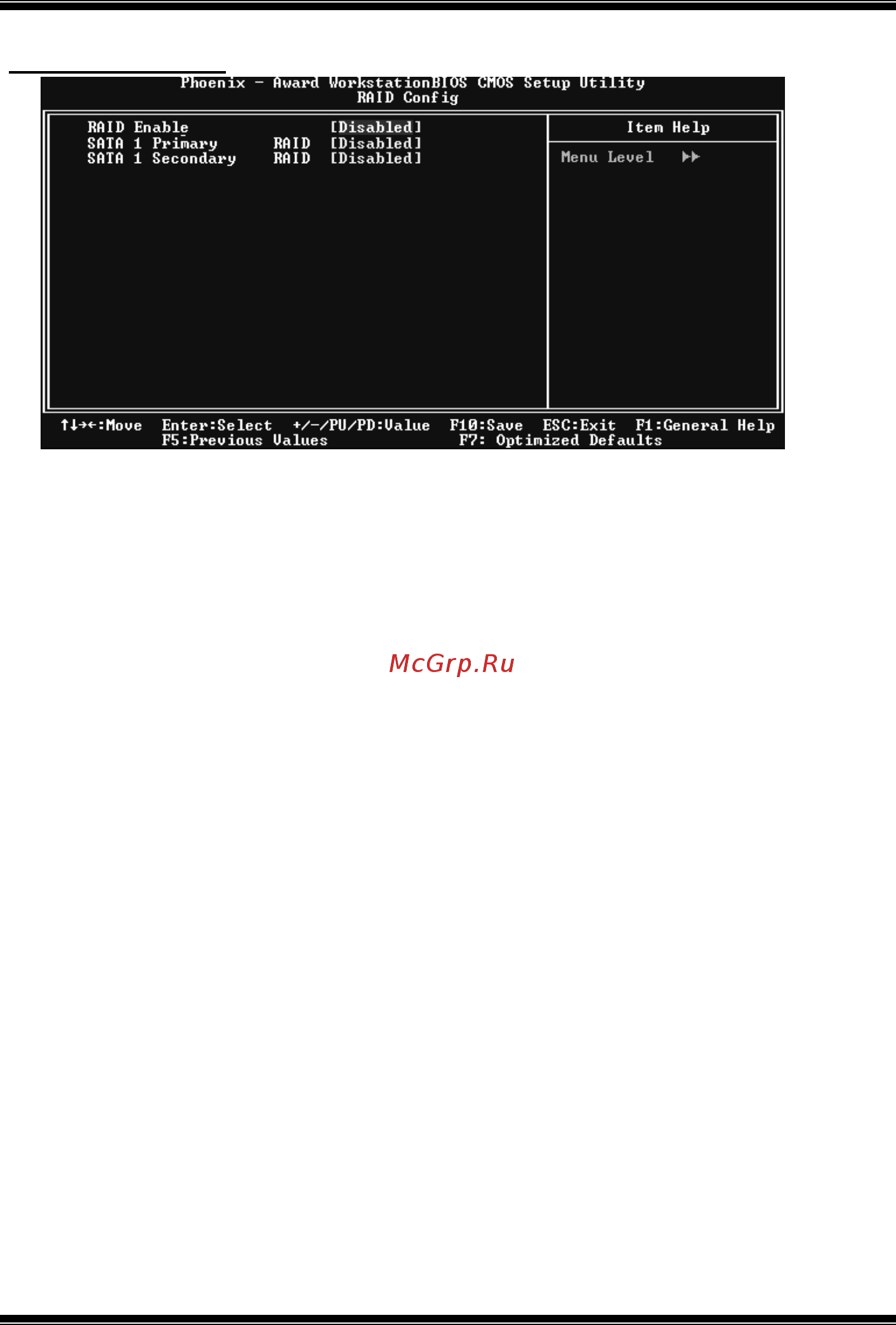

RAID Configuration

RAID Enable

The Choices: Disabled (default), Enabled.

SATA1 Primary/Secondary RAID

The Choices: Disabled (default), Enabled.
