(2) System Fan Headers: JSFAN1/JSFAN2 (optional)

Pin Assignment

1 Ground

2 +12V

3 FAN RPM Sense

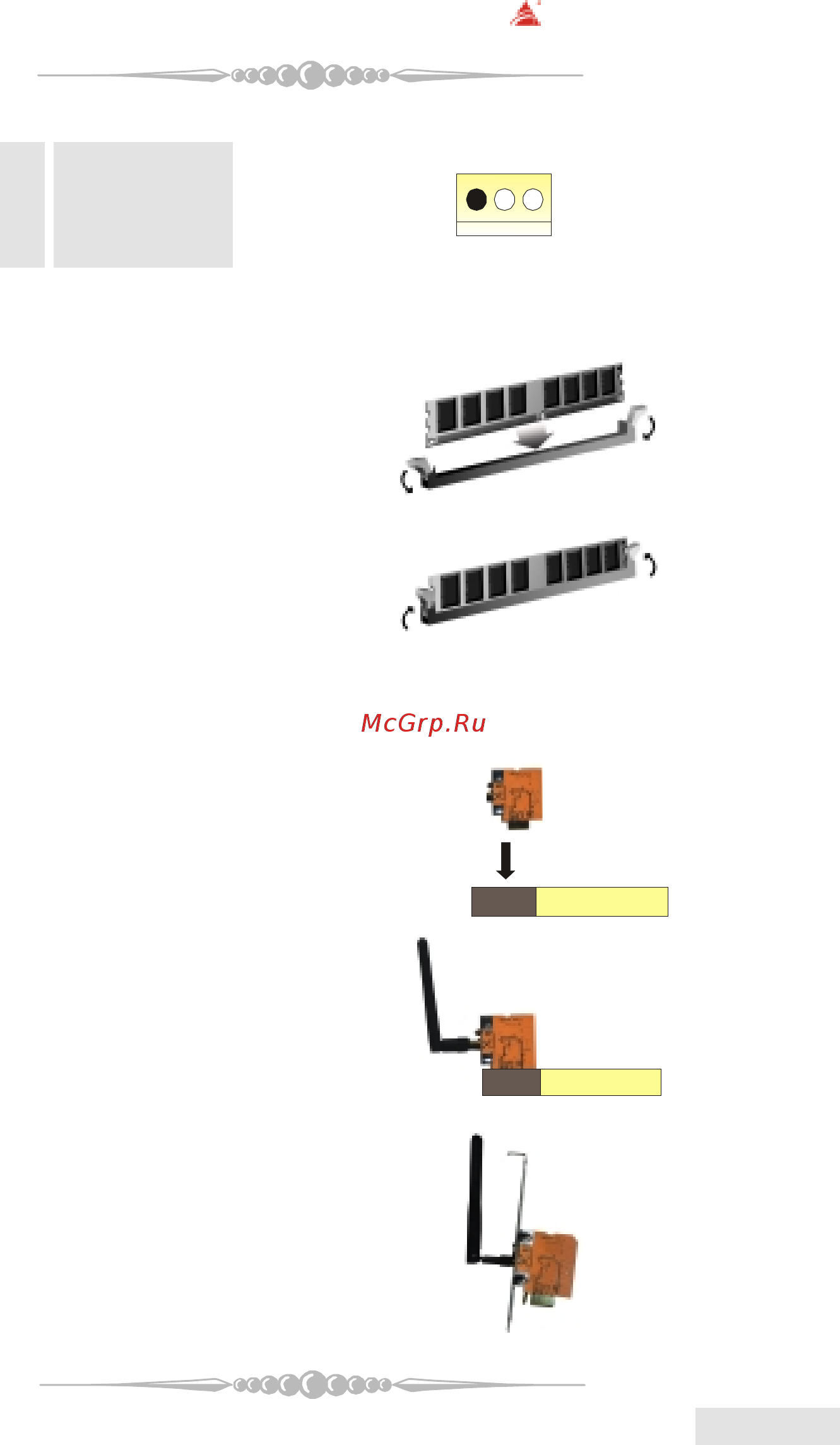

3. Installing DDR Module3. Installing DDR Module

3. Installing DDR Module

1. Unlock a DIMM slot by

pressing the retaining clips

outward. Align a DIMM on the

slot such that the notch on the

DIMM matches the break on

the slot.

2. Insert the DIMM firmly and

vertically into the slot until the

retaining chip snap back in place

and the Dimm is properly

seated.

6. Wireless LAN Card Installation (6. Wireless LAN Card Installation (

6. Wireless LAN Card Installation (

optionaloptional

optional

))

)

1. Align the wireless LAN on the slot

such a way that wireless LAN card

matches in the slot. Be sure to face

the wireless LAN card with its com-

ponents towards the inner part of the

motherboard.

2. Insert the wireless LAN card verti-

cally and firmly into the slot till the

wireless card is properly seated.

3. Screw the brackets.

4. Insert the wireless LAN antenna by

turning it clockwise.
