BIOSTAR Motherboard

1 3

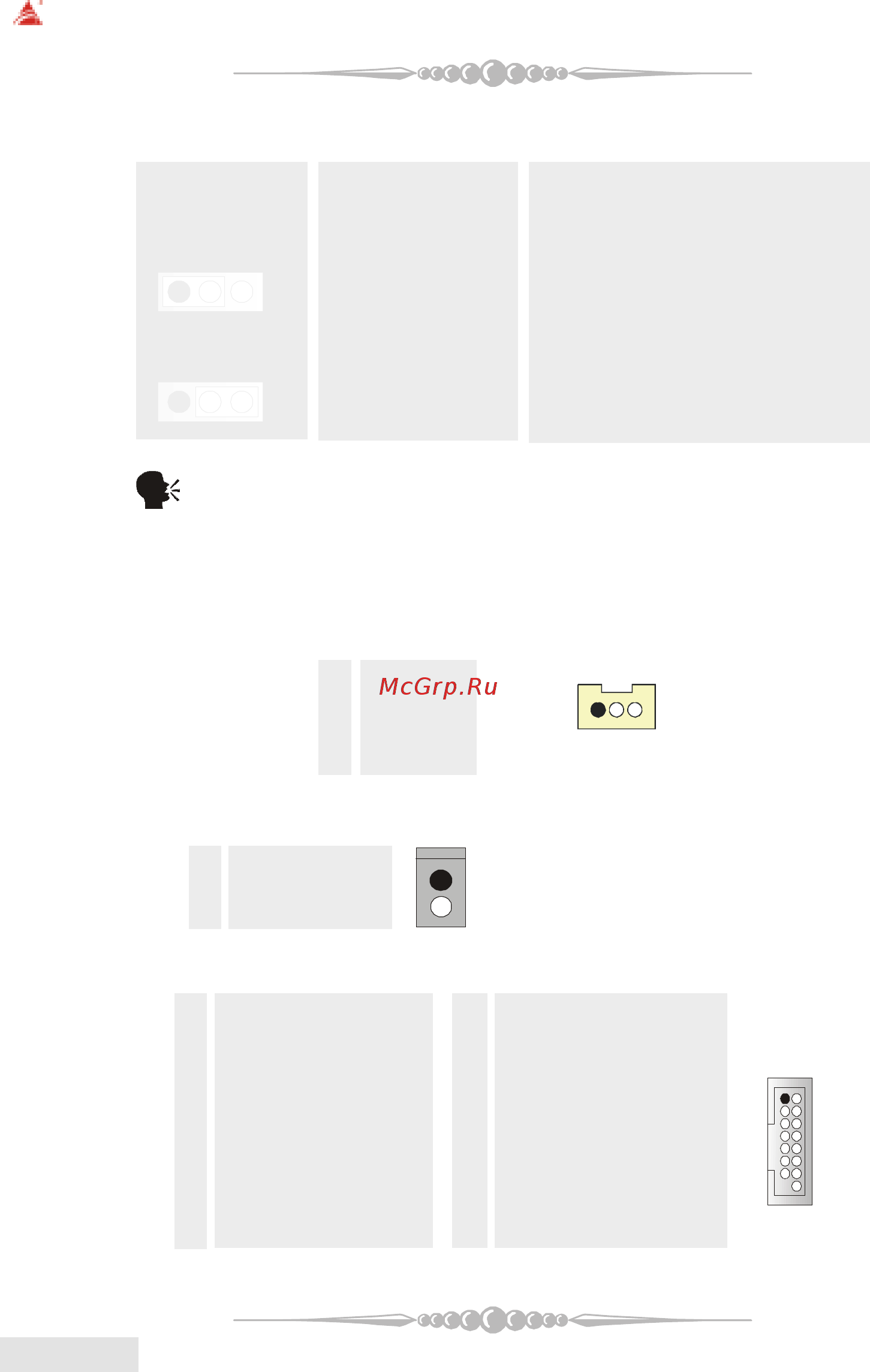

(10) Power Source Selection for USB: JUSBV1/JUSBV2/JUSBV3 (optional)

JUSBV1/JUSBV2 Assignment Description

JUSBV3

Pin 1-2 close +5V JUSBV1: 5V for J1394_USB1

JUSBV2: 5V for JUSBLAN1

JUSBV3: 5V for JUSB1 ports

Pin 2-3 close +5V Standby Voltage 5V standby to power on.

Note: In order to power-on USB devices function, "JUSBV1/JUSBV2/

JUSBV3" jumper cap should be placed on pin 2-3 respectively.

(11) Wake On LAN Header: JWOL1 (optional)

This connector allows you to connect to a LAN card with Wake On LAN

function. You can wake up the computer by remote control through a local area

network.

(12) Case Open Connector: JCI1 (optional)

Pin Assignment

1 Ground

2 Case Open Signal

(13) Game Header: JGAME1 (optional)

Pin Assignment Pin Assignment

1 +5V 2 +5V

3 Joystick B Button 1 4 Joystick A Button 1

5 Joystick B Coordinate X 6 Joystick A Coordinate X

7 MIDI Output 8 Ground

9 Joystick B Coordinate Y 10 Ground

11 Joystick B Button 2 12 Joystick A Coordinate Y

13 MIDI Input 14 Joystick A Button 2

15 NA 16 +5V

JWOL1

Pin Assignment

1 +5V_SB

2 Ground

3 Wake up
