BIOSTAR Motherboard

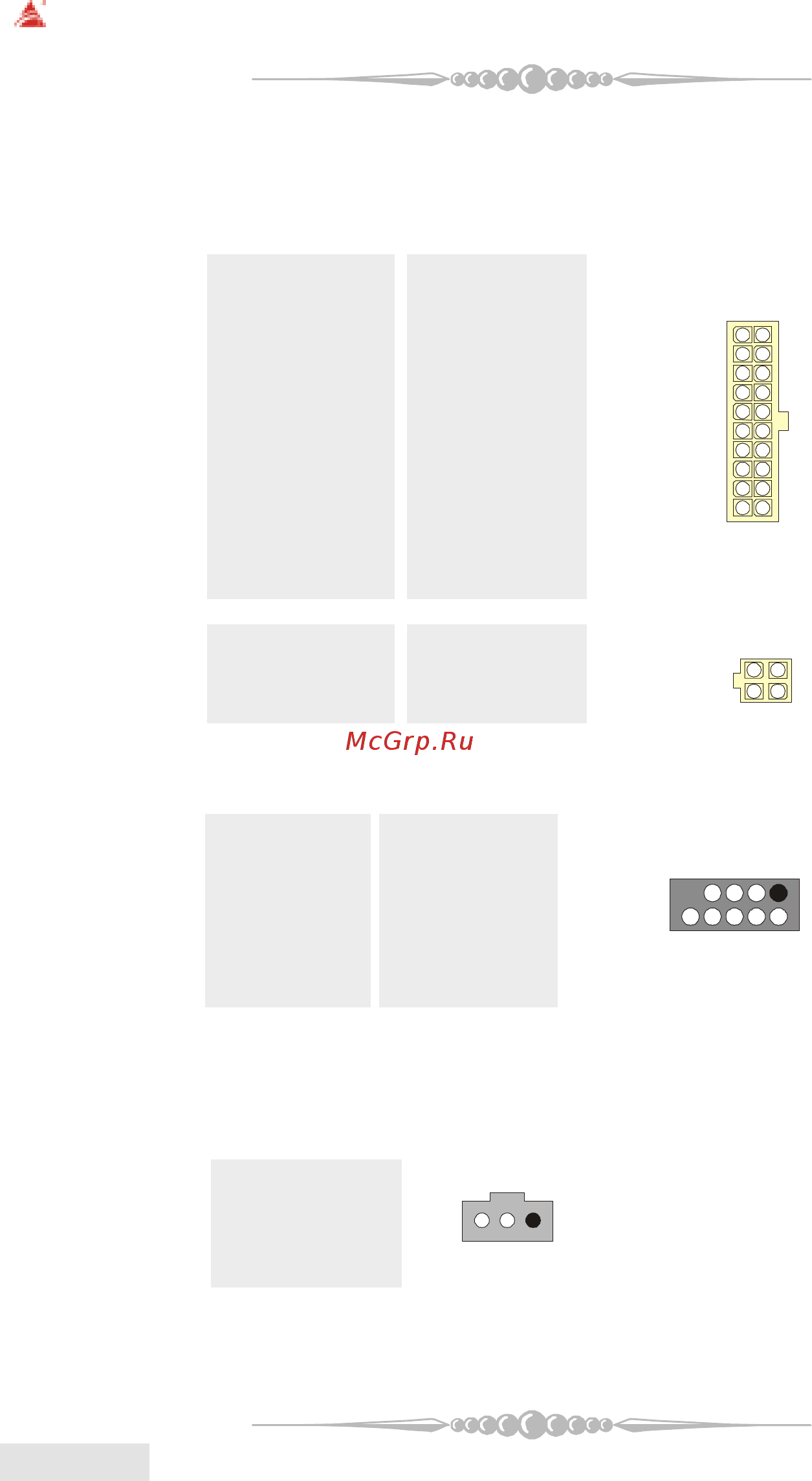

(17) Power Connectors: JATXPWER1/ JATXPWR2

The motherboard supports ATX power supply for the power system. Before

installing the power supply connector, please make sure that all components are

installed properly.

PIN Assignment PIN Assignment

1 +3.3V 11 +3.3V

2 +3.3V 12 -12V

3 Ground 13 Ground

4 +5V 14 PS_ON

5 Ground 15 Ground

6 +5V 16 Ground

7 Ground 17 Ground

8 PW_OK 18 -5V

9 +5V_SB 19 +5V

10 +12V 20 +5V

PIN Assignment PIN Assignment

1 +12V 3 Ground

2 +12V 4 Ground

(18) Front 1394 Header: J1394A1 (optional)

Pin Assignment Pin Assignment

1 A1+ 2 A1-

3 Ground 4 Ground

5 B1+ 6 B1-

7 +12V 8 +12V

9 KEY 10 NA

(19) Digital Audio Connector: JSPDIF_OUT/(JSPDIF_IN:optional)

The connector is used to connect SPDIF (Sony & Philips Digital Interconnect

Format) interface for digital audio transmission.

Pin Assignment

1 +5V

2 SPDIF_OUT

3 Ground
